Product Specifications
| Prod Model: |
TKM-MS-013 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quality: |
Top Quality |
| Environmental Friendly: |
Raw Material Pass RoHS, SGS Test |
| Size: |
as Per Request |
| Color: |
as Per Request |
| Type: |
Flexible |
| Application: |
Calculator |
| Brand: |
Tkm |
| Certification: |
RoHS |
| Material: |
EL Panel |
| Contact Type: |
Metal Dome |
Product Description

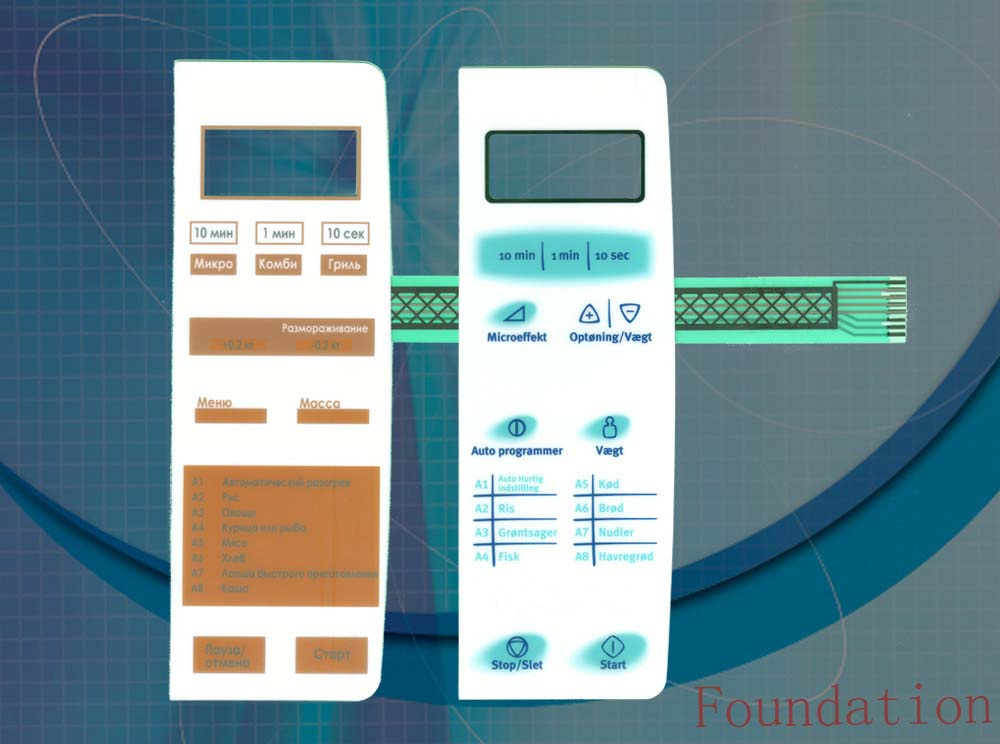

Tactile Fpc Flexible Circuit El Panel Membrane Control Switch
1) Custom made
2) Any size and shape available
3) Energy save product, low power consuming.
4) Withstand millions of cycles
Our membrane switches are widely used in:
3C Electronics,
Automobile industry
Decoration light project
Art work and gifts
Commercial usage.
Public facility
Both OEM and ODM orders are welcome.
|
Insulation Resistance |
<100MΩ,250V DC |
Contact resistance |
<1Ω /cm |
|
operating voltage |
≤ 50VDC |
working current |
25- 100mA,0-30V DC |
|
reliability/service life |
>1 million times/Withstand millions of cycles |
Operating humidity |
when40°C,<98%RH |
|
spring time |
≤ 5ms |
substrate voltage |
2000V DC |
|
Tail flexiblility |
any angle within 180 degree |
Switch travel |
Flat Type 0.05-0.3mm tactile type:0.3-1.5mm |
Foundation Industries Manufacturing Limited has been specialized in membrane field for over 15 years, which was founded in 1997, . It has two factories in Dongguan China, one is for membrane products (TKM membrane technology Ltd. )and the other is for silicone products(Huahongchuang). Now we have purchased a Taiwanese factory which is manufacturing various nameplates, and we' Ll use this new facility to expand our main business and make metal nameplate our new field.
We are an ISO9001: 2008 certified company and all of our products have passed RoHS and SGS test. We believe quality is vital for the growth of an enterprise, we undergo 100% functional test before shipment.
Our main product range are:
1)Membrane Switch and overlay
2)Flexible printing Circuit/ FPC/EL
3)Silicone products including silicone rubber key pad. And various silicone Rubber products.
4) Metal nameplate series
5) Rotary Switch/Rocker Switch/Push button Switch/Thermal protector
We' Ve established business relationship with over 120 customers from global market, including some famous brands such as PHILIPS, Siemens, Panasonic, SANYO, METTEL, BOSCH.
We sincerely hope can cooperate with you in the coming future!
