Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| X,Y,Z Axis Travel: |
600*500*250 |
| Distance Between Spindle Nose&Work Table: |
100-350mm |
| Work Table Dimension: |
600*500mm |
| Maximum Load: |
200kg |
| Spindle Motor: |
7.5kw |
| Tool Storage Volume: |
8 PCS |
| Machine Size: |
1980*2200*2570 |
| Machine Weight: |
2800 Kg |
| Process Usage: |
Metal-Forming CNC Machine Tools |
| Movement Method: |
Linear Control |
| Control Method: |
Closed-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
Economical CNC Machine Tools |
| Processing Precision: |
0.001mm |
Product Description
Taiwan Made 3 Axis CNC Milling machine tools
Creator Precision Co., Ltd. Was established in Taiwan at 1986. In 1997, Creator Industry (Suzhou) Co., Ltd. Was found to extend Mainland China market. Till now, the registered capital is USD 5, 080, 000. The new factory covers 24, 680sqms and holds a building area of 19, 000sqms. There are 250 employers which assure the annual production at least as 600 sets of EDM and 100 sets of VMC.
Features:
1.Door type structure break tradition and provide with safety and beautiful appearance.
2.Equipped with built-in spindle.Put in use on mirror mold and exquisite mold
3.Processing on tiny parts. Mold electrode and electronic parts assures high steady and high precision
4.Meehanite metal casting with symmetrical design assures no deformation
5.Utilizes a 3axes feed system and a C3precision grade ball screw with a high precision linear slide and pre-tension processing to ensure machine position accuracy and to prevent thermal strain.

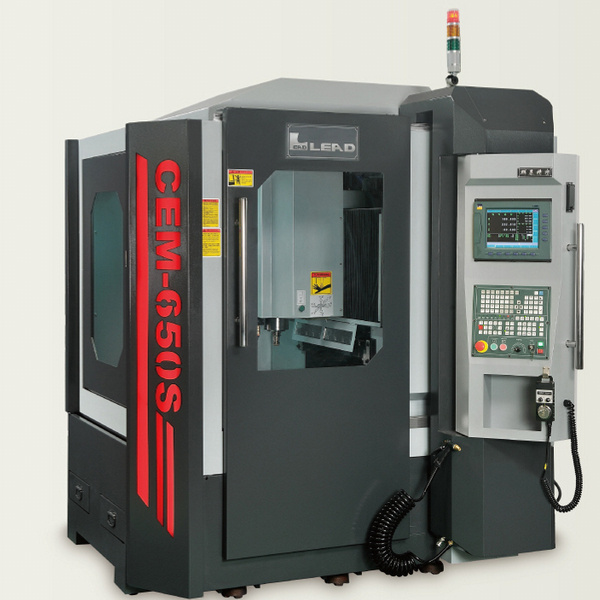

TAIWAN CREATOR High speed vertical machine center
| ITEM | UNIT | CEM650S |
| X/Y/Z axes travel | mm | 600/500/250 |
| Distance fro. Spindle nose to work table | mm | 100-350 |
| Worktable dimensions | mm | 600*500 |
| Maximum load | kg | 200 |
| T-slot | mm | 5*18*100 |
| Type | type | BT-30 |
| Rotation speed | rpm | 24000 |
| Transmission | type | Built-in |
| Spindle motor | kw | 7.5 |
| Spindle cooling | type | Spindle cooling machine |
| X/y/z rapid feed | m/min | 10*10*10 |
| Cutting feed rate | mm/min | 1-7000 |
| 3-axes motor | kw | 1.3 |
| Tool storage | type | Vertical type |
| Tool storage volume | pcs | 8 |
| Maximum tool diameter | mm | 40 |
| Maximum tool length | mm | 80 |
| Maximum blade weight | kg | 3 |
| Tool selection | type | Fixed type |
| Power requirement specification | kva | 10 |
| Machine dimensions | mm | 1980*2200*2570 |
| Machine weight | kg | 2800 |
Taiwan Made 3 Axis CNC Milling machine tools
Creator Precision Co., Ltd. Was established in Taiwan at 1986.
In 1997, Creator Industry (Suzhou) Co., Ltd. Was found to extend Mainland China market. Till now, the registered capital is USD 5, 080, 000. The new factory covers 24, 680sqms and holds a building area of 19, 000sqms. There are 250 employers which assure the annual production at least as 600 sets of EDM and 100 sets of VMC.
After Service Team:
Our professional experience and after sale service enhance the worldwide sales network. We hold more than 50 professional engineers to support our after-sale service system, which assures excellent and fast service to our customers.
Competitive cost control:
In machining department we process various machinery casting by advanced equipments: LEAD CHV850/CHV1020/CHV1500 VMC, FEMCO R2 horizontal boring machine. Harford 326 planer-type VMC. HC 6m horizontal & vertical milling machine, 2.5m vertical planer-type milling machine, 2000 horizontal & vertical milling machine. SW 3m vertical planer-type milling machine. TOPONE 3HG vertical milling machine, 6K milling machine. LINGYUN 53K vertical milling machine. FREEPORT 3468 surface grinding machine. KENT 715A/510 surface grinding machine. PROTH 60120 steering grinding machine. MASTER 430 lathe. QIHANG Z6163 lathe. NANJING 4TH 3050 radial drilling machine. KS HEJI S10N horizontal saw-banded machine. LEAD CJ345 EDM. WUXI GGC15-0.3 high-frequency surface heat-treatment machine etc.
