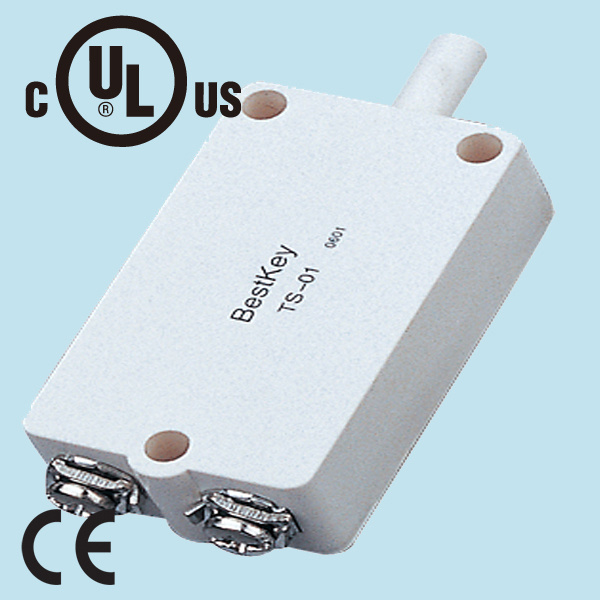

Tamper/Plunger Switch Alarm

Name: Tamper/Plunger Switch Alarm
Brand: china-manufacturer-directory.com
SKU: 699023012
Availability: InStock
Rating: 4.7 (120 reviews)

Price:	US $ 0.75/Piece
Trade Terms:	FOB,CIF
Min Order:	1000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

tamper/plunger switch alarm

Specification:

. Tamper switch

. for drawers and control panel application

. Made by reed switch for reliable

. High-impact white plastic case

. Wire range for Screw terminals: 18AWG~24AWG

. Colors: White

Order Information:

Part Number	Loop Type	Reed Form	Gap (Inch (mm) )	Maximum Initial Contact Resistance (Ohm)	Maximum Contact Rating (W)	Maximum Switching Voltage (VDC/VAC)	Maximum Switching Current (A)
TS-01	Closed	N/O	1/2 (12)	0.150	10	100	0.5
TS-02	Closed	N/O	1/2 (12)	0.150	10	100	0.5
TS-03	Closed	N/O	1/2 (12)	0.150	10	100	0.5

Note: 1. Total Travel: .472 inch (12.0mm) Pre Travel: .236+/-.04 inch (6.00+/-1.00mm)

2 .Wire range for terminals: #18~#24AWG

Prod Model:	TS-01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	CE, UL,RoHS
Color:	White
Certification:	UL
Application:	Special Equipment
Usage:	Window

Ningbo Sentek Electronics Co., Ltd., is a professional manufacturer in fire and security products, such as smoke detector, gas detector, magnetic contacts and so on.

Most of magnetic contacts are UL list, UL, EN approval for smoke detector and heat detector.

We are still like to be your OEM/ODM manufacturer in fire and security products, including reed sensors.

Warmly welcome customers for all over the world to talk and do business with us.
