Tantalum Niobium Mining Machine High Intensity Dry Magnetic Separator, Tantalum Niobium Separator From Jxsc

Tantalum Niobium Mining Machine High Intensity Dry Magnetic Separator, Tantalum Niobium Separator From Jxsc
Supplier: Jiangxi Province County Mining Machinery Factory
Price: US $ 13000-16000/Set
Min Order: 1/Set
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: 500 mm /600 mm
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application Area: for Ilmenite/Rare Earth/Chromite/Tungsten/Tantalum
Separation Method: Magnetic Separation
Engineer Overseas Service: Yes, Provide
Disc Quantity: 3 PCS
Processing Capacity: 300-600kgs/H
Disc Diameter: 500mm/600mm
Type: Magnetic Separator
Voltage: 380V
Weight: 2T
Certification: CE
Warranty: 1 Year
Color: Multi Color
Customized: Customized
Condition: New

Product Description

JXSC Mine Machinery Factory is a professional manufacturer of mining equipments since 1985, our advantages are the dressing equipments for Gold ore/Tin ore/Tungsten ore/Iron ore/ Hematite ore/Chrome ore, especially have much experiences at the alluvial gold/sand gold washing plant.

Our main market is in Africa, South Amercia, Southeast Asia, Asia,ect. Our cooperated customers cover Ghana, Sudan , Uganda, Nigeria, Cameroon, Madagascan, Malasia, Indonesia, Philippines, Mexico, Brazil, Chile, Canada, Austrilia, Iran, Russia, Jordan.ect.



Application Area of disc type dry magnetic separator  :
The disc dry magnetic separator is a Dry Intensified Magnetic Separator, applicable for separations of ilmenite, rare earth ore, chromite, tungsten and tin ores, limonite, columbium and tantalum ores, zircon, rutile, monazite, andalusite, garnet, kyanite, feldspar, quartz and other minerals with magnetic differences or removal of iron in nonmetallic minerals.

4 varieties of products can be obtained by separation of this device.

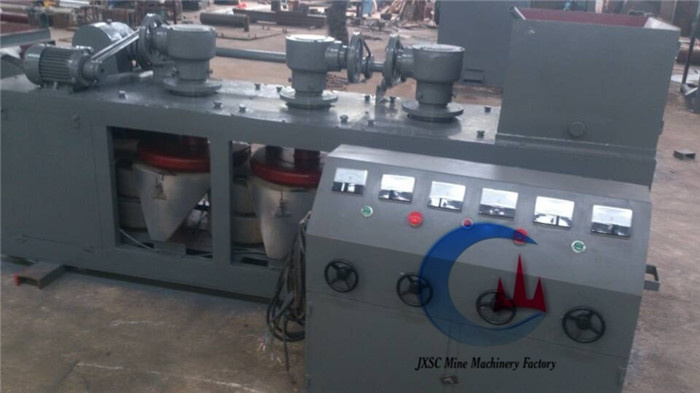

Main Parts of   disc type dry magnetic separator :
Mainly include two parts: The main device and Electric controller carbinet.
The main device comprises feeding unit, weak magnetic roller, drive part, material conveying apparatus, magnetic disk, electromagnetic system, frame and others.

The electric control section consists of components of control, voltage regulation, rectification, instrument and so on. It features compact structure, stable performance, easy installation and convenient operation and maintenance

Features of    disc type dry magnetic separator :
1. Small capacity (100-800kg/h depend on the disk diameter)
2. With 3 pcs disk
3. Each disk is with Adjustable magnetic intensity from 1000-20000 Guass, can adjust according to minerals magetic intensity.
4. 4 different minerals can be obtained at the same time by useing  this magnetic divice.
5.  High intensity with dry processing

6. Low power consuption.
7. The moisture of feeding material shall be under 1%

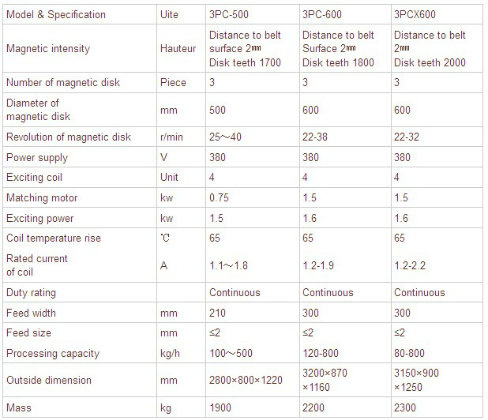

Specification of 3 pcs discs high intensity dry magnetic separator:

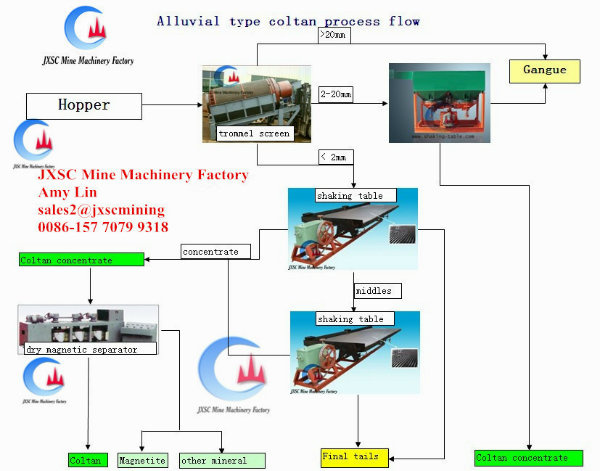

3 pcs discs high intensity dry magnetic separator in alluvial coltan/
Tantalum niobium separation plant:


Jiangxi Province County Mining Machinery Factory is specialized in researching, manufacturing, sales and door tracking service as one of the metallurgical mineral processing machinery enterprise, our company is engaged in the mineral processing equipment product design and production for several years history, has accumulated rich experience in design and production. Enterprise in mineral processing equipment industry has had a positive effect, set up the good reputation. The company constantly with technology innovation, hard to develop the country generation into high technology and new technology processing equipment, make excellent brand, mainly the manufacture of the products like as shaking table, flotation equipment, crushing(powder)equipment, magnetic separation equipment, screening equipment, ore washer classifying equipment, agitation equipment, spiral chute equipment, gravity separation jig, feeding equipment, milling equipment. And we can manufacture various types of mineral processing machinery and equipment according to our customers' requirements. Our products are widely used for sorting gold, silver, copper, iron, tungsten, lead, zinc, tin, molybdenum, nickel, tantalum, niobium, manganese ore, coal, monazite, rutile, diamonds, other precious metals and precious metals mine, and for the flotation colored, black metal, precious metals and other minerals.

Company has won the Outstanding Business Award, and many times as honesty, service and advanced company, is the backbone of the metallurgical industry, mineral processing machinery business. The company has export qualifications, our products sell well all over the world for many years, especially exported to Brazil, India, Indonesia, South Africa, Somalia, Philippines, Malaysia, Sudan, Kazakhstan, Kyrgyzstan, Cambodia, Vietnam, Korea, Mongolia, Myanmar and other countries.
