Shenzhen Ruifujie Technology Co., Ltd. >> (TE5/TE55 Series) Danfoss Refrigeration Thermostatic Expansion Valves

(TE5/TE55 Series) Danfoss Refrigeration Thermostatic Expansion Valves

Name: (TE5/TE55 Series) Danfoss Refrigeration Thermostatic Expansion Valves
Brand: china-manufacturer-directory.com
SKU: 729828185
Availability: InStock
Rating: 4.4 (112 reviews)

Supplier:	Shenzhen Ruifujie Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	TE5/TE55
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

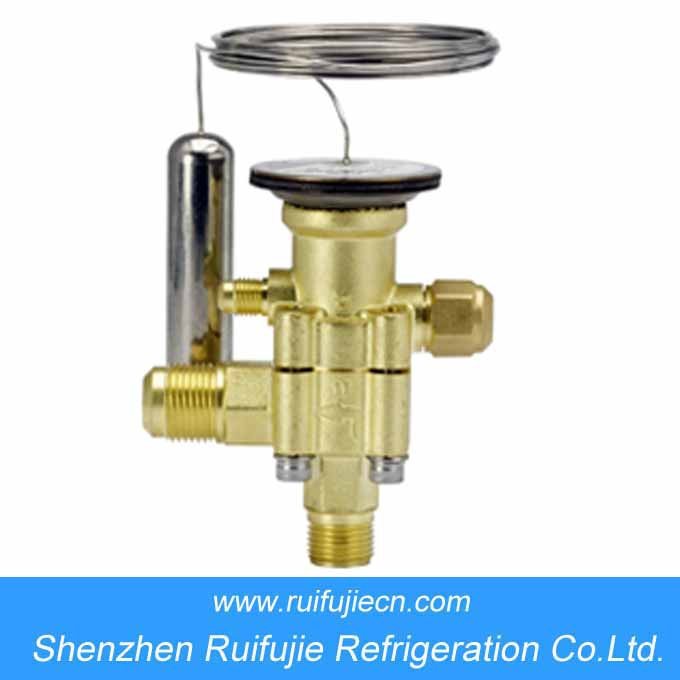

(TE5/TE55 Series) Danfoss Thermostatic Expansion Valves

Product Description

TE 5 thermostatic expansion valves are used for liquid injection into evaporators on both refrigeration and air conditioning systems using fluorinated refrigerants. TE 5 is supplied as a part program with a wide range of valve bodies. The exchangeable power element is produced with the well known Danfoss laser welding technology for extended lifetime capability. Large operating range: -60 °C to +10°C. Interchangeable orifice assembly. Stainless steel power element, capillary tube and bulb. Wide capacity range. Versions with MOP function is available. Superior charge performance. Patented bulb strap design. MWP up to 28 bar. Wide capacity range to minimize capacity gap and overlap.

Product Features

TE 5 straightway valve body, solder connections

Thermostatic expansion valve regulate the flow of refrigerant liquid into The evaporator.

The flow is controlled by the valve is thermal bulb which is Attached to the suction line at the outlet of the evaporator.

The thermal Bulb senses the evaporator heat and adjusts the valve to admit refrigerant Liquid in accordance with the refrigerating load.

Brand:	Danfoss
Colour:	-
Connection Size:	-
Connection Type:	Solder, ODF x Solder, ODF
Length (M):	-
Material Type:	-
Model Number:	TE5
Nominal Running Current (A):	-
Operating Temperature:	-
Pressure:	-
Voltage:	-
Warranty:	1 Year
Phase:	-
Refrigerant Suitability:	R134a, R404A, R507, R22, R407C
Valve Connections:	1/2 x 7/8
Defrost:	-
Evaporator Fans:	-
Cable Length (mtr):	-

Valve type	Refrigerant	Pressure (1/4 in/mm)	Capillary tube(mm)	Code no. (without MOP)
Valve type	Refrigerant	Pressure (1/4 in/mm)	Capillary tube(mm)	Code no. (without MOP)
TEX5	R22	Ext.	3	067B3250
TEX12	R22	Ext.	3	067B3210
TEX20	R22	Ext.	3	067B3274
TEX55	R22	Ext.	3	067G3205
TES5	R404a	Ext.	3	067B3342
TES12	R404a	Ext.	3	067B3347
TES20	R404a	Ext.	3	067B3352
TES55	R404a	Ext.	3	067G3302

1. Reliable supplier with 10 years experience.

2. Mature technique and professional employee.

3. Authorized certificates like SGS, CE and ISO9001

4. Competitive factory wholesale prices

5.24 hours in service for the customers

6. Safe and fast delivery.

About US:

Our main products are as follows:

1, COPELAND COMPRESSORS, VR, ZR, ZB, ZH SERIES,

2, DANFOSS PERFORMA COMPRESSORS, SM, SZ, SH SERIES,

3, MANEUROPE PISTON COMPRESSORS, MT, MTZ NTZ, MPZ SERIES

4, DANFOSS COMMERCIAL COMPRESSORS, FR, SC SERIES, .

5, DANFOSS AIR CONDITIONAING AND REFRIGERATION PARTS,

TE, TDE, TGE, PHT SERIES TERMOSTATIC EXPANSION VALVES

ETS SERIES EXPANSION VAVLES,

EVR SERIES ECPANSION VAVLES AND

KP1, KP5, KP15 SERIES PRESSURE CONTROLS

DCL DML LIQUID LINE FILTER DRIERS

With arising market and demand on Chinese original products, we supply only quality and qualified Chinese products with our own Brand or OEM brand on following products:

BALL VAVLES, HAND VAVLES, OIL SEPERATORS, WITH RELIABLE QUALITY.

By standing on ground of Chinese market, we could serve our customers in refrigeration and air conditioning globally. With our best product quality and good service, we can cooperate with our customer to improve their products quality and reduce the cost.

We have sales channels all around the world and products well received by our clients.

We hope to establish close cooperation relationship with our partners and distributors, and develop our business together in this fast growing environment.

You are welcomed to make any enquiry!
