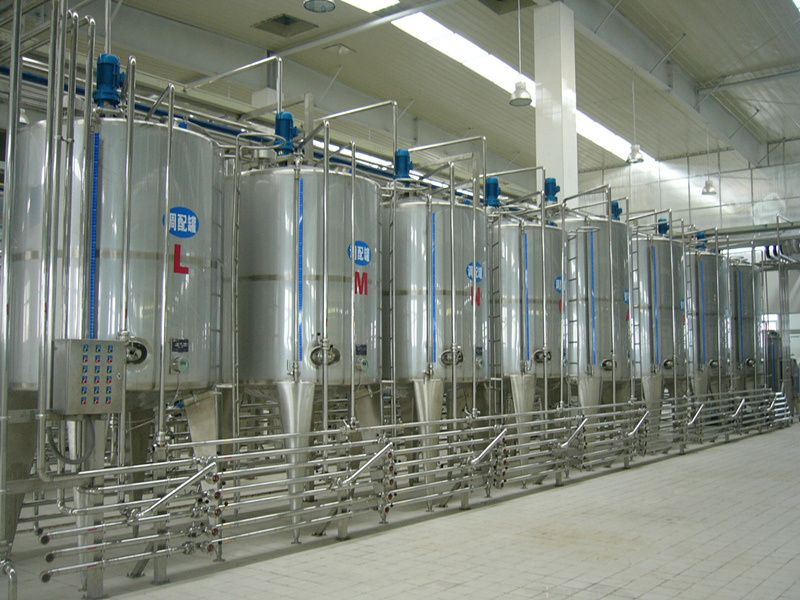

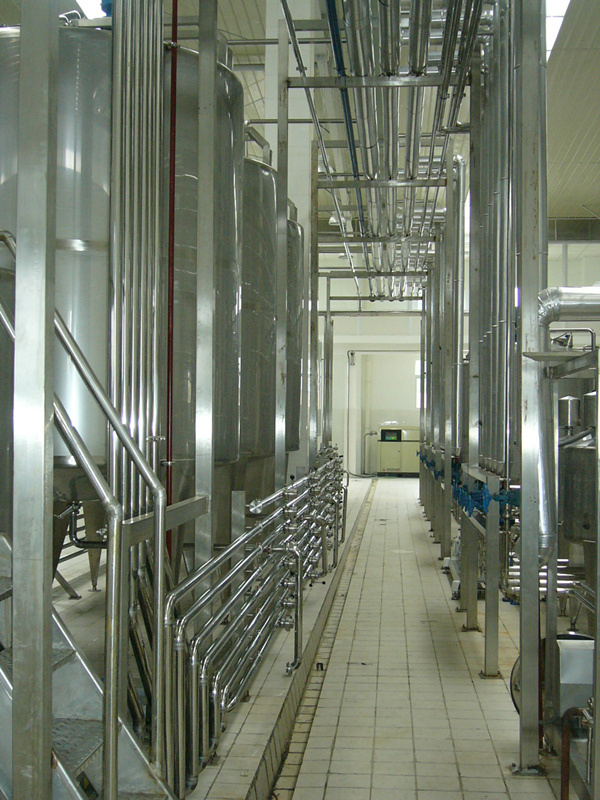

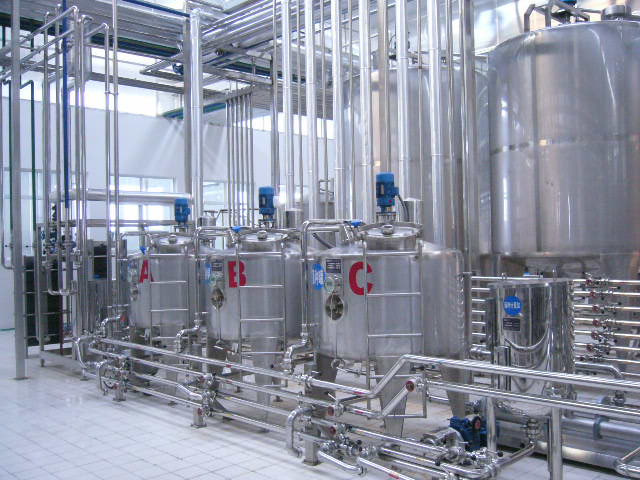

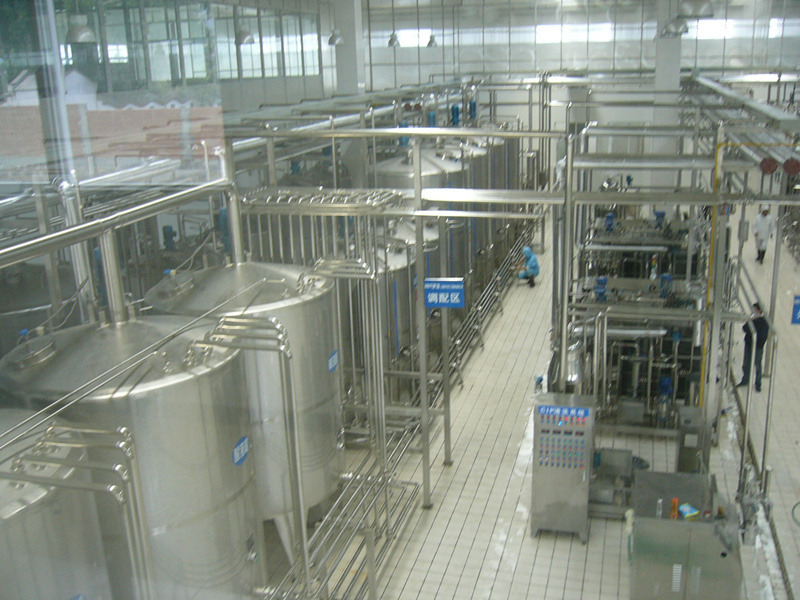

Tea Beverage Processing Line

Name: Tea Beverage Processing Line
Brand: china-manufacturer-directory.com
SKU: 769988885
Availability: InStock
Rating: 4.9 (27 reviews)

Price:	US $ 3000-6800/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Descriptions of tea beverage processing line

This tea beverage production line produce several types of tea beverage, like black tea, green tea, herbal tea etc.
The raw material of this line can be tea leaves or tea powder or tea concentrate, sugar, stabilizer and flavors etc. The procedure method is blending-UHT sterilizer-homogenizer-hot filling-cooling tunnel-pacakge and so on.
End product package of this tea beverage can be plastic pouches, plastic cups, plastic bottles, glass bottles, roof top box etc.

The general equipments are showing in the below table:

No.	Name	Technical parameters
1 Hot Water Section
1.1	Plate heat exchanger	SUS 316L, steam heating directly, with endurance (max) temperature 160 0C and endurance (max) pressure 1mpa, heating-up 40ºC once, heating exchanging area 18 m²
	Temperature control system	UK Spirax sarco steam pressure reduce valve, adjustable valve, steam trap valve, with one set of temperature sensor, temperature meter and equipped with stainless stell electric control cabinet
1.2	Hot water tank	SUS316 insullation tank, conical shape at top fitted with off-center vertical agitator, double mixing blades, sight glass, ,temperature sensor PT 100 and digital thermometer meter, electrode type low/high level meter and CIP spray ball
1.3	Flowmeter	25~78000LPH
1.4	Hot water pump	Hygienic type centrifugal hot water pumps, SUS 316L, power 5.5 KW, lift 36m
1.5	Electro type low/high levelmeter	SUS316L, high/ middle/ low connecting rod floating ball level, fitted on hot water tank
1.6	Temperature sensor	PT100 PT100
	Pneumatic butterfly valve	SUS316, double welding
	Pneumatic two position three way valve	SUS316
2 Extraction section
2.1	Extraction tank	Shelf with kneader, perforated plate, electrode type high/low level meter, temperature sensor PT 100 and digital thermometer meter, CIP spray ball and water return pump, Siemens PLC cotrolling touch
2.2	Extracted tea filter tank	Upper 1.5mm upper filter, 150mesh lower filter, electromagnetic valve, Pneumatic two position three way valve, CIP spraying ball
2.3	Screw conveyor	L=8m, CIP spraying ball
2.4	Extraction platform	Stainless stell platform, with staircase and railing
2.5	Centrifugal pump	Hygienic type centrifugal hot water pumps, SUS 316L, power 5.5 KW, lift 36m
2.6	Double barrel type filter	SUS316, 80 /120 mesh, with pressure meter and drain valve
2.7	Plate-type cooler	Three sections 90ºC-55ºC-15ºC, the area of each section: pure water section 12 m², tower water section 16 m², ice water section 14 m²
3 Tea Extract Clarification Section
3.1	Tea-extract tank	SUS316L, use PU as insullation, vertical type, fitted with twin-blade mixer, electrode-type high/low level meter, temperature sensor PT 100 and digital thermometer meter, sampling valve, CIP spray ball and CIP return pump motor
3.2	Centrifugal pump	Hygienic type centrifugal hot water pumps, SUS 316L, power 5.5 KW, lift 36m
3.3	Double barrel type filter	SUS316, 180/180 mesh, with pressure meter and drain valve
3.4	Centrifugal separator	Fitted with flow meter, fully automatic controlled, automatic deslagging, the diameter of the turntable is 470mm
3.5	Tea-extract storange tank	Double layer, SUS316L, with conical shape at top/bottom fitted with twin-blade mixer, electrode-type high/low level meter, temperature sensor PT 100 and digital thermometer meter and sight glass
4 Sugar Dissolving Section
4.1	Sugar dissolving tank	SUS316, singal layer, sanitary design supported by a stainless frame and supported, fitted with paddle type high speed mixer 1450rpm at the bottom, electrode-type high/low level meter, digital temperature meter, CIP spray ball and CIP return pump motor, sight glass and sampling valve
4.2	Centrifugal pump	Hygienic type centrifugal hot water pumps, SUS 316L, power 5.5 KW, lift 36m
4.3	Double barrel type filter	SUS316, 180/180 mesh, with pressure meter and drain valve
4.4	Plate-type cooler	SUS316, sugar solution from 75 0C to 37 0C, tower water for cooling, and the exchanging area is 25 m²
4.5	Sugar solution storage tank	Singal layer, SUS316L, fitted with electrode-type high/low level meter, temperature sensor PT 100 and digital thermometer meter, sight glass, CIP spray ball and CIP return pump motor
4.6	Centrifugal pump	Hygienic type centrifugal hot water pumps, SUS 316L, power 5.5 KW, lift 36m
4.10	Platform for sugar dissolving	SUS304, size: 450010001500mm, thickness 3mm, load-bearing 500kg/m2
5 Blending Section
5.1	Blending tank	Singal layer, SUS316L, off-center vertical agitator, twin blade mixer,CIP spray ball and CIP return pump motor, sight glass and sampling valve
5.2	Centrifugal pump	Hygienic type centrifugal hot water pumps, SUS 316L, power 5.5 KW, lift 36m
5.3	Double barrel type filter	SUS316, 5μm, with pressure meter and drain valve
5.8	Blending platform	SUS304, the thickness of the diamond plate is 3mm, 700010004000mm, load bearing 200kg/m²
6 Product Sterilization Section
6.1	UHT sterilizer	Five sections, 140ºC for sterilization, temperature endurance (max) 165 0C and maximum pressure endurance is 16 bars. Sterilization temperatures are determined according to characteristic of product to be heated which can be set accordingly to the process requirement through PLC setting. 36ºC(inlet)→75ºC→135~140ºC(sterilization for 20s)→88ºC (filling). Fitted with 500L stainless steel SUS 316L product receiving tank, hot water supplying system, PID temperature control system, automatic steam control equipment, centrifugal hot water pump and motor, 20 seconds holding tube stainless steel SUS 316L and cooling section for product return, CIP system (except the boiler and the pipeline)
6.6	Tea-extract tank	SUS316L, with conical shape at top/bottom, fitted with 1HP twin-blade mixer, electrode-type high/low level meter, temperature sensor PT 100 and digital thermometer meter, sampling valve, CIP spray ball and CIP return pump motor
7 Automatic Cleaning-in-Place (C.I.P) section
7.1	Hot water tank	SUS304, temperature sensor, digital thermometer,electrode-type high/low level control, CIP spray ball
7.2	Alkali tank	SUS304, temperature sensor, digital thermometer,electrode-type high/low level control, CIP spray ball
7.3	Acid tank	SUS316, temperature sensor, digital thermometer,electrode-type high/low level control, CIP spray ball
7.4	Plate-type exchanger	PID temperature control system

Candy Chen
Mobile: +008617721003464

Prod Model:	CCJL003
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Raw Material:	Black Tea or Green Tea Leaves
Capacity:	200L-20, 000L/H
Control:	Fully Automatic or Manual
Processing Material:	Natural Ingredients
Process:	Thermal Processing
Composition:	Processing Line
