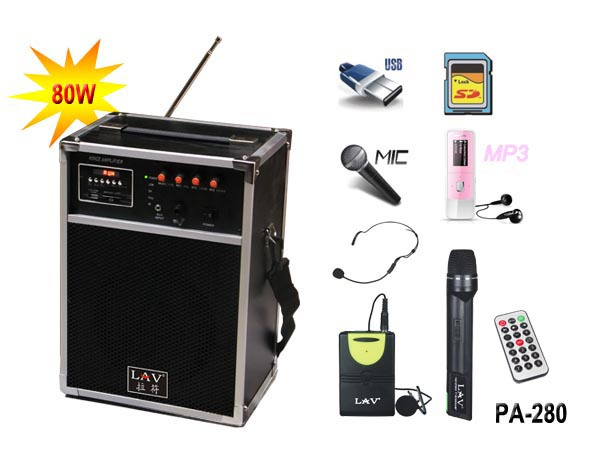

Teaching PA systems PA-280
Portable PA systems, small AMP, tour guide systems
Feature:
1. 3.5mm audio input (can play music by connecting computer or MP3 player)
2. With FM radio
3. Built-in USB socket (can play songs stored in USB disk), SD/MMC card socket (can play songs stored in the card)
4. Built-in 12V/4.5AH rechargeable battery
5. One channel MIC, one wired MIC jack (6.35mm), can be used for two people at the same time
6. One guitar jack (6.35mm), use it by connecting e-guitar
7. Adjustable MIC echo & tone & volume
8. Adjustable music volume
9. There are 5 music profile, select one according to your requirement
10. Three kinds of power supply are available:
A. By connecting AC
B. By built-in DC battery
C. By external DC 12V battery
|
PA-280 System Specifications: |
|
Feature: |
USB/SD/MMC socket, FM radio, 3.5mm audio input, one channel mic, wire/guitar connector, external battery jack |
|
Power supply: |
AC85V~265V (50-60Hz) and one DC 12V/4.5AH rechargeable battery |
|
Power source input: |
DC 12V |
|
Frequency range: |
VHF 174~270MHz, one channels |
|
Frequency response: |
100Hz~15 KHz |
|
Output power: |
Max 80W |
|
Speaker: |
One full range 6.5" speaker |
|
Sensitivity: |
10dBμ V(S/N above 60dB) |
|
Surge type: |
quartz surge locking +/-0.005% |
|
Wireless MIC: |
Frequency range: VHF 174-270 MHz |
|
Frequency response: 100Hz-10 KHz |
|
Sensitivity: 80dB |
|
Battery specification: 9V battery |
|
MIC wireless effective range is 30 meters (visible distance), can be 50 meters if in ideal environment |
|
Optional hand-held /collar clip/ headset Mic. |
|
Transmitter battery working time: 36 hours |
|
Operating time: |
4 to 10 hours, depending on the volume sounds |
|
Charging time |
8 hours |
|
Material: |
Wooden, Metal |
|
Size: |
(L*W*H) 257 * 185 * 350 mm |
|
Weight: |
4.5KGS |
|
Gross Weight |
6kg |
|
Standard configuration: |
one mainframe, one remote control, one transmitter, one headset MIC, 1*9V battery, one power cable, one user manual |
|
Applicable scope: |
it is widely used in indoor & outdoor teaching, speech, dancing, gymnastics, meeting, military training, tourist guide, promotion, aution, parade, gathering, traffic conduct, exhibition and all kinds of entertainment place |
