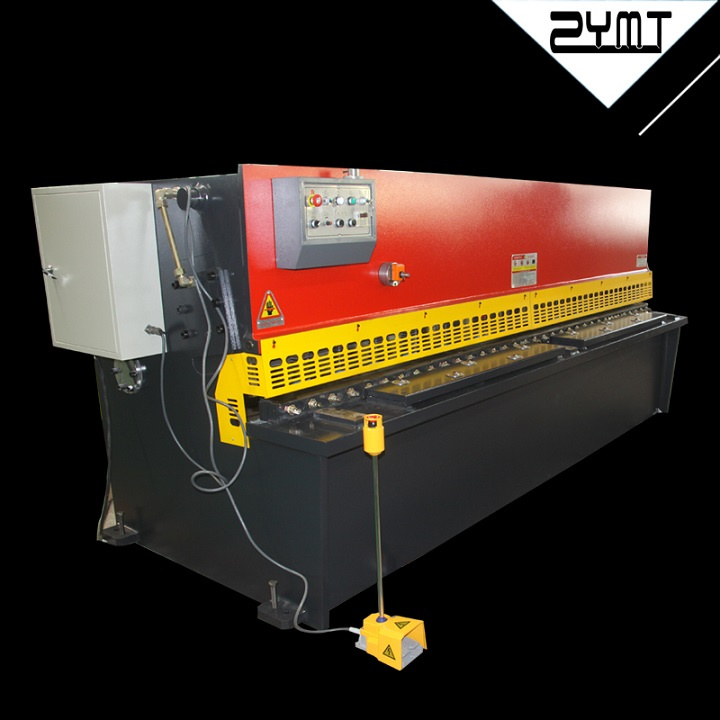

Technical Plate Cutting Machine

Name: Technical Plate Cutting Machine
Brand: China-Manufacturer-Directory.com
SKU: 699479442
Availability: InStock
Rating: 4.6 (108 reviews)

Supplier:	Maanshan Middle Asia Machine Tools Manufacture Co., Ltd.
Price:	US $ 2000-22600/Piece
Min Order:	1Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	QC12K-10X4000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cutting Thickness:	10mm
Cutting Length:	4000mm
Controller System:	Estun E21s
Application:	Machinery & Hardware
Automation:	Semi-automatic
Type For Cutting Machine:	Hydraulic Cutting Machine
Type:	Cutting Machine

Product Description

Technical Plate Cutting Machine:

1. Digital display
2. 1 year warranty
3. Delivey time: 35 days
4. High quality

Main equipments:

No.	Parts Name	Brand	Brand Location
1	Main motor	Siemens	Germany
2	Backgauge motor	Jiahuang	Hangzhou China
3	Electrics	Schneider	France
4	Oil Cylinder	Yuhua	Maanshan China
5	Seal ring	Nok	Japan
6	Hydraulic valve	Rexroth	Germany
7	Pump	Hangfa	Shanghai China
8	Controller	E21S	Nanjing China
9	Blades	Jinshan	Shanghai China
10	Pipe connector	EMB	Germany
11	Footswitch	Karcon	South Korea
12	Ball screw	Hiwin	Taiwan
13	Controller with moveable arm	YES
14	Front and back protection fence	YES
15	Backgauge with ball screw	YES
16	Backgauge travel	600MM
17	Shadow line light	YES
18	Emergency button	YES

Other standard equipments:
Segmented upper blade 1set (two sides can be use)
Lower blade 1set (four sides can be use)
Front supporting arms 3
Emergency stop button;
Back, and front safty fence
Shadow line lighting
Safety foot switch
Foundation bolts 1set
Manuals and diagram 1book

Parameters:

Type	Cutting Thickness (mm)	Cutting Length(mm)	Cutting Angle(°)	Material Strength (KN/CM)	Stroke (times/min)	Power(kw)	Weight(kg)	Dimension(mm)
4×2500	4	2500	1°30'	≤450	10	5.5	3800	304016101620
4×3200	4	3200	1°30'	≤450	10	5.5	5000	384016101620
4×4000	4	4000	1°30'	≤450	8	5.5	6500	460017001700
4×6000	4	6000	1°30'	≤450	5	7.5	11000	646021003200
6×2500	6	2500	1°30'	≤450	10	7.5	5000	304016101620
6×3200	6	3200	1°30'	≤450	9	7.5	6000	384016101620
6×4000	6	4000	1°30'	≤450	8	7.5	8000	462017501700
6×5000	6	5000	1°30'	≤450	6	7.5	10500	540017501700
6×6000	6	6000	1°30'	≤450	5	11	16500	648021002300
8×2500	8	2500	1°30'	≤450	10	7.5	6000	304017001700
8×3200	8	3200	1°30'	≤450	8	7.5	7200	386017001700
8×4000	8	4000	1°30'	≤450	8	7.5	8800	464017001700
8×5000	8	5000	1°30'	≤450	8	7.5	11500	540024002000
8×6000	8	6000	1°30'	≤450	8	11	18000	648021002350
10×2500	10	2500	1°30'	≤450	9	11	7300	304017001700
10×3200	10	3200	1°30'	≤450	9	11	8000	386017001700
10×4000	10	4000	1°30'	≤450	8	11	12000	465021002000
10×6000	10	6000	2°	≤450	5	15	24000	650021002300
12×2500	12	2500	2°	≤450	9	18.5	9000	314021502000
12×3200	12	3200	2°	≤450	9	18.5	10800	388021502000
12×4000	12	4000	2°	≤450	8	18.5	13000	468021502000
12×5000	12	5000	2°	≤450	6	18.5	16000	590021502000
12×6000	12	6000	2°	≤450	5	18.5	29000	690026002700
12×8000	12	8000	2°	≤450	5	18.5	46500	900035003500
16×2500	16	2500	2°30'	≤450	9	18.5	11000	314021502000
16×3200	16	3200	2°30'	≤450	8	18.5	13000	388021502000
16×4000	16	4000	2°30'	≤450	8	18.5	16300	465021502200
16×5000	16	5000	2°30'	≤450	6	18.5	20000	590026002700
16×6000	16	6000	2°30'	≤450	5	22	36000	690027002700
20×2500	20	2500	3°	≤450	8	22	15500	344023002500
20×3200	20	3200	3°	≤450	8	22	18000	415023502700
20×4000	20	4000	3°	≤450	5	22	21000	485023502700
25×2500	25	2500	3°	≤450	8	37	19000	320027002900
25×3200	25	3200	3°	≤450	5	37	23000	420027002900
25×4000	25	4000	3°	≤450	5	37	27000	385027002900
30×2500	30	2500	3°	≤450	5	37	23500	330029002900
30×3200	30	3200	3°	≤450	5	37	27500	420029002900

Company Introduction:
1.Maanshan Middle Asia Machine Tools Manufacture Co.,Ltd founded in 2001.
2.Total number of emploee: 500
3.All kinds of sophisticated equipment more than 100 sets.
4.Production plant area:60,000.
5.Whole factory is controlled by ERP-Enterprise Resource Plan.
6.CE/SGS/ISO9001 certification.

We are producing below ranges of machines:
1.NC/CNC Press Brake
2.NC/CNC Shearing Machine
3,Rolling Machine
4.Iron Worker
5.Power Press
6.Hydraulic Press

Ma'anshan Middle Asia Machine Tools Manufacture Co., Ltd. (which Chinese name is ZhongYa Machine Tool Factory and also the head office located in Ma'anshan City Anhui Province) is a specialized company for making forged and pressed series of products designated by the Ministry of Machinery, having been certified with GB/T9001: 2000 International standard.

Based on elite equipment, advanced technology and first-class managment, making Normal and CNC Press Brake, Shearring machine, Turret Punching machine and Roll Bending machine.

Its registered capital is RMB 32million, the total capital more than 102million, and the factory is located in Bowang Town, in the suburb of Nanjing and the eastern suburb of Maanshan, with developed transportation. It's only 30km due to Lukou International Airport of Nanjing Jiangsu, and high speed way close to Shanghai.

We promise to give you outstanding customer service. Customers continue to do business with us because of our great prices and nice machines. We understand that you want value for your money, and a happy customer will be a future customer.

Our products have been sold to American, Italy, Germany, Mexico, Singapore, Malaysia, Vietnam, Bahrain, Pakistan, Brazil, Spain, etc.
