Product Specifications
| Prod Model: |
TW4900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Average Type: |
Video Average, Power Average, Voltage Average |
| Signal Analysis Bandwidth: |
10Hz~10MHz (40MHz/200MHz, Options) |
| Video Bandwidth: |
1Hz~3MHz (10% Step),4,5,6,8MHz |
| Frequency Range: |
3Hz~4GHz/8GHz/13.2GHz/18GHz/26.5GHz/40GHz/45GHz/50 |
Product Description
Product Overview:

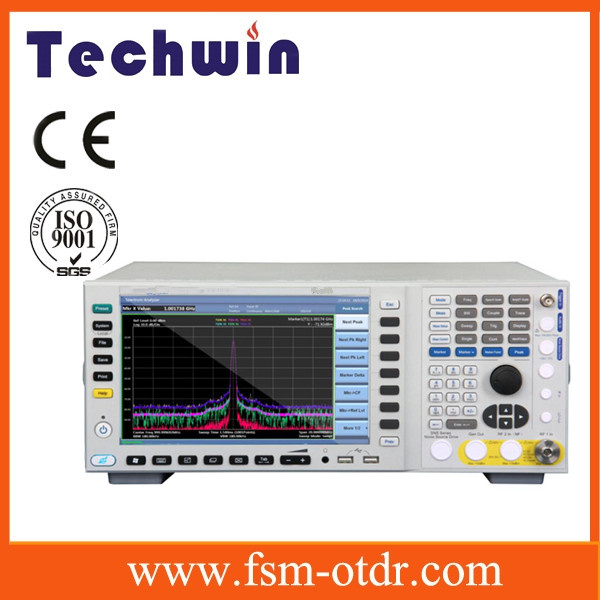

Techwin series signal analyzer have the advantages of broad bandwidth, high
resolution, high dynamic range, high precision, low phase noise and fast measurement
speed. Techwin can provide the high performance services such as high sensitivity
spectrum analysis, power analysis, analog demodulation test, multi-domain analysis,
pulse parameter analysis, audio analysis, phase noise testing, millimeter wave
frequency extension, noise figure testing and USB power meter.
Techwin uses the technology of modular frequency conversion channel and all digital
IF to form a high open testing platform. We can choose the different options to
improve the testing performance of Techwin, and built test system or secondary
development by a variety of digital and analog signal output interface of Techwin.
Techwin has a wide range of applications as follows: aviation, aerospace,
communication, radar and navigation.
Main Features:
Broad frequency bandwidth range
200MHz analysis bandwidth
Excellent testing performance
Full spectrum analysis
Multi-domain analysis and signal playback
Plentiful function option
Flexible analog and digital output interface
Convenient operating characteristics
Broad frequency bandwidth range
3Hz-50GHz frequency bandwidth range
8 kinds of Optional configuration of frequency bands
low frequency (<4GHz) or full-band preamplifier
Frequency extension up to 325GHz (options)
200MHz analysis bandwidth
Flexible Bandwidth to choose from 10Hz to 200MHz
10MHz standard analysis bandwidth (40MHz/200MHz, options)
64M sample memory depth (256M, options)
Seamless capture time can be up to a few hours from 1.28 seconds
Excellent testing performance
The best measurement sensitivity: -152dBm/Hz
Measurement sensitivity at 50GHz: -127dBm/Hz
Phase noise: -115dBc/Hz carrier 1GHz @ 10kHz offset
All digital IF design
