Ceritficate: ISO9001 FM and UL approved
Type: Elbow(22.5/45/90), tee(euqual/reducing), cross, reducer(concentric/eccentric)

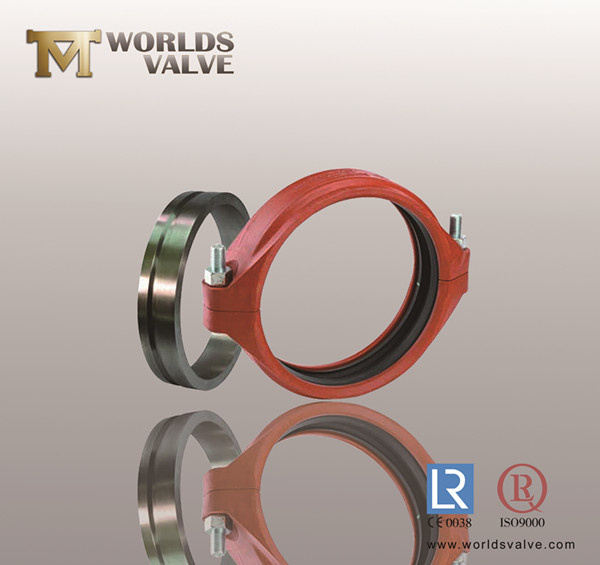

Cap, coupling, mechanical tee, mechanical cross, flange adaptor, ductile iron grooved couplings
Flexible coupings, rigid couplings, reducing couplings, HDPE couplings and so on.
Connect end type: Grooved end and thread end
Material: Ductile iron ASTM A536, Grade65-45
Pressure rate: 300PSI-500PSI
Size: 1''-16''
Finish: Paint, epoxy powder painting, dacromat finish & hot dipped Galv
Packaging: In poly wooden cases or in carton the on poly wooden pallets
Deliver time: 45 days after order conformed
Payment: By T/T, D/P or L/C
Applications range: In various kinds of pipeline projects
| Nominal size mm/in | Pipe O.D mm/in | Working presusre (Mpa) | Dimensions | Bolt/Nut | Hole Dimension(mm)+1 |
| No.-size(mm) |
| A | L | H |
| mm | mm | mm |
| 50-15 | 60.3*Rc1/2 | 1.6MPa(230PSI) | 110 | 59 | 50 | 2-M10*40 | Φ30 |
| 2* 1/2 | 2.375*0.825 |
| 50-20 | 60.3*Rc3/4 | 112 | 59 | 50 | Φ30 |
| 2*3/4 | 2.375*1.05 |
| 50*25 | 60.3*Rc1/2 | 120 | 72 | 50 | Φ38 |
| 2*1 | 2.375*1.327 | 2-M10*55 |
| 50*32 | 60.3*Rc1/4 | 120 | 83 | 55 | Φ46 |
| 2* 1 1/4 | 2.375*1.669 |
| 50*40 | 60.3*Rc1 1/2 | 120 | 83 | 63 | Φ46 |
| 2 11/2 | 2.375*1.9 |
| 65*15 | 76.1*Rc1/2 | 139 | 62 | 58 | Φ30 |
| 2 1/2*1/2 | 3*0.825 |
| 65*20 | 76.1*Rc3/4 | 139 | 62 | 63 | Φ30 |
| 2 1/2*3/4 | 3*1.05 |
| 65*25 | 76.1*Rc1/2 | 139 | 76 | 60 | Φ38 |
| 2 1/2*1 | 3*1.327 |
| 65*32 | 76.1*Rc1 1/4 | 138 | 83 | 60 | Φ46 |
| 2 1/2*1 1/4 | 3*1.669 |
| 65*40 | 76.1*Rc1 1/2 | 139 | 90 | 60 | Φ53 |
| 2 1/2*1 1/2 | 3*1.9 |
| 80*15 | 88.9*Rc1/2 | 155 | 59 | 70 | Φ30 |
| 3*1/2 | 3.5*0.825 |
| 80*20 | 88.9*Rc3/4 | 155 | 59 | 70 | Φ30 |
| 3.75 | 3.5*1.05 |
| 80*25 | 88.9*Rc1/2 | 152 | 76 | 63.5 | Φ38 |
| 3*1 | 3.5*1.327 |
| 80*32 | 88.9*Rc1 1/4 | 152 | 83 | 64.5 | Φ46 |
| 3* 1 1/4 | 3.5*1.669 |
| 80*40 | 88.9*Rc1 1/2 | 152 | 90 | 65.5 | Φ53 |
| 3*1 1/2 | 3.5*1.9 |
| 80*50 | 88.9*Rc2 | 152 | 98 | 66.5 | Φ64 |
| 3*2 | 3.5*2.3753 |
TIANJIN WORLDS VALVE Ltd. is located at TIAN JIN BIN HAI, , it is only 3 kilometers away from Tianjin Xingang Port, TIANJIN WORLDS VALVE Ltd. focuses on producing, installing, sale and service. The main products ranges from Center Line Butterfly Valve, Flanged Butterfly Valve, Metal Butterfly Valve, Dual Plate Check Valve, Gate Valve, Waterpower Control Valve, Microresistance Slow Close Check Valve, Multi-function Pump Control Valve to their series products. Moreover, we can produce control valve and pressure reducing valve with different materials, pressures, specifications, actuation ways. Our products have more than 50 serials and 1200 species, the annual production output is more than 8.000 metric tons. WORLDS valves sells well all over China and have been exported to Europe, America and other countries and areas, they are widely used in water supply and drainage, electric power, petrol chemical industry, metallurgy and other trades. The products are creative with good quality, cheap price and excellent credit, so far we got a good feedback from our customers.
WORLDS has excellent technicians and engineers, at the same time it has a lot of large and middle machines including 178 sets of manufacturing equipments and 32 sets of performance testing equipments imported from overseas. Our products have original design, exquisite technique, perfect manufacture and complete testing ways. It has passed ISO 9001 international quality system certification of DNV. WORLDS will supply best products and service for all customers.
