Product Specifications
| Prod Model: |
KS-2068 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Ontact data
Contact Arrangement
1Z
Initial Contact Resistance
100mΩ (1A 24VDC)
Contact Material
AgNi
Contact Rating(Res. Load)
H: 3A120VAC/30VDC
Z: 2A 220VAC/30VDC
3A 120VDC
Max. Switching voltage
220VAC / 125VDC
Max. Switching curreng
3A
Max. Switching power
240VA / 30W
Mechanical life
1× 107 times
Electrical life
1× 105 times
Characteristics
Initial Insulation Resistance
1000MΩ 500VDC
Dielectric Strength
Between coil and Contacts1000VAC 1minute
Between open contacts500VAC 1minute
Operate time(at nomi. Volt)
Max: 10ms
Release time(at nomi. Volt)
Max: 5ms
Temperature rise(Normal voltageUnder)
H: 50º C N. B: 60º C
Shock Resistance
Stability98m/s2(10g)
Intensity980m/s2(100g)
Vibration Resistance
1.5mm 10~55Hz
Humidity
35%~85%
Temperature
-25º C~+55º C
Termination
PCB
Unit weigth
5g
Construction
Sealed IP67 And Guards against the solder
Coil data
Coil power
L: 200mW, N: 360mW; B: 450mW
Coil Specification table
Nominal Voltage VDCAction voltageVDCDrop-out Voltage VDCMax voltageVDC(25º C)Coil Resistance Ω
LNB
32.30.33.9452520
53.80.56.51207056
64.50.67.818010080
96.80.911.7400220180
129.01.215.6700400320
2418.02.431.2280016001280
Ordering information

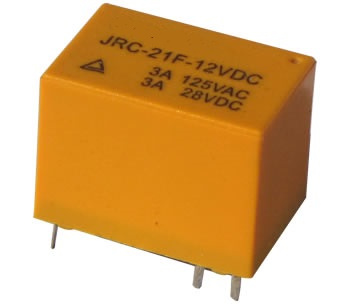

Mark demonstrationJRC-21F/12VDC-1ZS
TypeJRC-21F
Coil voltage1.5 3 5 6 9 12 24VDC
Contact Arrangement1Z: SPDT
TerminationNO: PCB, 3: Clubfoot Model(Suitable for SMD mounting)
Coil power NO L: Standard(0.2W), N: (0.36W), B: 0.45W
