Product Specifications
| Prod Model: |
CAT6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
China |
| Brand Name: |
OEM |
| Model Number: |
UTP CAT6 |
| Number Of Conductors: |
1 |
| Impedance: |
100ohm |
| Pair: |
4 |
| Jacket Material: |
PVC |
| Colour: |
Gery/Black/White/Bule/Yellow/Orange |
| Delivery Time: |
10day/20gp 15days/40gp |
| Insulation: |
PE |
| Application: |
Long Distance Symmetric Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Type: |
Cat 5 |
| Certification: |
RoHS |
| Model: |
LAN Cable |
| Brand: |
Newlink |
Product Description

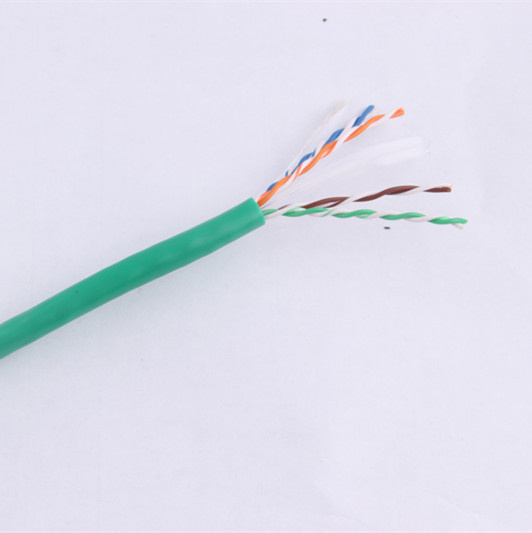

UTP CAT4 4 PAIR 550MHz
1. Description
23AWG solid bare copper or CCA conductors, Polyolefin insulation, twisted pairs, PVC jacket (red, orange, yellow, green, white, blue or gray)
Suitable Applications: Premise Horizontal Cabel, Gigabit Ethernet, 100 Base TX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video.
1. Physical Dimensions
Center Conductor: 0.573±0.01mm BC/CCA
Insulationi:0.953±0.02mm PE
Pair:4
Jacket:6.1±0.05mm PVC
Ripcord:Yes
2. Mechanical Characteristics
Operating Temperature Range:-20ºC to +75ºC
Installation Temperature Range: -0ºC to +60ºC
Max. Recommended Pulling Tension: 45 lbs
Min. Bend Radius(Install):0.25 in
3. Pair Identification
Pair 1 Blue/White Blue Strip on White Single
Pair 2 Orange/White Orange Strip on White Single
Pair 3 Green/White Green Strip on White Single
Pair 4 Brown/White Brown Strip on White Single
4. Electrical Characteristics
Capacitance:15.5 pF/ft
Velocity of Prop.:67%
Conductor DCR:9.38Ω/100M
Impedance:1.0-100Mhz/100Ω±15% 100-200Mhz/100Ω±22%
200-300Mhz/100Ω±32%
6.Electrical Performance (@68ºF. 20ºC)(dB/100M)
| Frequency | Impedance | Return Loss | Attenuation | NEXT | ELFEXT | PS NEXT | PS ELFEXT | Delay Skew | Propagation Speed |
| Mhz | ohm | dB | dB | dB | dB | dB | dB | ns | m/s |
| 1.0 | 100±15 | 20.0 | 1.9 | 74.3 | 67.8 | 72.3 | 64.8 | ≤45 | 0.6c |
| 4.0 | 23.0 | 3.7 | 65.3 | 55.8 | 63.2 | 57.7 |
| 10.0 | 25.0 | 5.9 | 59.3 | 47.8 | 57.3 | 44.8 |
| 16.0 | 25.0 | 7.5 | 56.3 | 43.7 | 54.3 | 40.7 |
| 20.0 | 25.0 | 8.4 | 54.8 | 41.8 | 52.8 | 38.7 |
| 31.3 | 23.6 | 10.6 | 51.9 | 37.9 | 49.9 | 34.9 |
| 62.5 | 21.5 | 15.4 | 47.4 | 31.9 | 45.4 | 28.8 |
| 100.0 | 20.1 | 19.8 | 44.3 | 27.8 | 42.3 | 24.8 |
| 155.0 | 18.8 | 25.1 | 41.4 | 23.9 | 39.4 | 20.9 |
| 200.0 | 18.0 | 29.0 | 39.8 | 21.8 | 37.8 | 18.7 |
| 250.0 | 17.3 | 32.8 | 38.3 | 19.8 | 36.3 | 16.8 |
| 350.0 | 100±20 | 16.3 | 39.8 | 36.1 | 16.9 | 34.1 | 13.9 |
| 400.0 | 15.9 | 43.0 | 35.3 | 15.7 | 33.7 | 12.7 |
| 450.0 | 100±22 | 15.5 | 46.3 | 34.5 | 14.7 | 32.5 | 11.7 |
| 500.0 | 15.2 | 48.9 | 33.8 | 13.8 | 31.8 | 10.8 |
| 550.0 | 14.9 | 51.8 | 33.2 | 12.9 | 31.2 | 9.9 |
