Shenzhen Sopto Technology Co., Limited >> Telecommunication Devices 1 Channel Video Optical Multiplexer (SDV-1010ZFST-R)

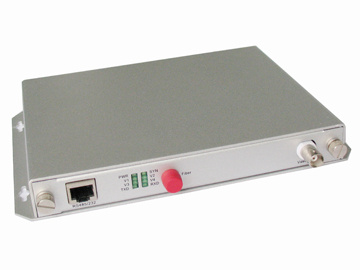

Telecommunication Devices 1 Channel Video Optical Multiplexer (SDV-1010ZFST-R)

Name: Telecommunication Devices 1 Channel Video Optical Multiplexer (SDV-1010ZFST-R)
Brand: China-Manufacturer-Directory.com
SKU: 674875795
Availability: InStock
Rating: 4.8 (57 reviews)

Supplier:	Shenzhen Sopto Technology Co., Limited
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	SDV-1010ZFST-R
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connector:	Sc/St/Fc
Rack:	Mini Rack or 19 Inch Rack
Channel:	1
Distance:	20km
Support Network:	Digital Video Multiplexer

Product Description

Supplier of Digital Video Multiplexer (SDV-1110ZZSR-20)

Features:
* ASIC design SMT craftwork
* Complete digital fiber transmission platform and flexible configuration of different signal
* Independent intellectual property large-scale special-purpose integrated circuit core
* Transmit on one fiber
* PAL/NTSC/SECAM auto-negotiation, broadcasting transmission quality
* Support one asynchronous data port;
* Rate of asynchronous data can reach more than 115.2Kbps
* RS-485 interface supports full/half duplex

Technical Specification
Video
Format: PAL/NTSC/SECAM Video Signal: 1VP-P Video Impedance: 75 Ω ;
Bandwidth: 6.5MHz Frequency: 13.5MHz Digitization: 8bit or 10bit
DG: 1%(Typical value) DP: 1degree(Typical value) SNR: 67dB(Typical value)
Color brightness time extension difference: 10ns(Typical value)
Color brightness gain difference: Plus-minus10%(Typical value)
Audio
Bandwidth for each channel: 20Hz~20kHz Sample Frequency: 96kHz
Digitization: 16bit (24bit for option) Input impedance(Line-in): 600Ω /unbalance
Output impedance(Line-out): 600Ω / unbalance
Input/Output Voltage: 2Vp-p Unbalance SNR: 75bB(Typical value)
Total wave distortion: 0.1%(Typical value)
Asynchronous data
Interface: RS485/422 Manchester (CH1, 3, 5, 7) or RS232(CH2, 4, 6, 8)
Working mode: Full/half duplex (only for CH1 and CH3)
Rate: DC~128Kbps Error code rate: <1X10 -9
Connector
Video connector: BNC socket Audio connector: RJ-45
Asynchronous data connector: Terminal Block with Screw Clamps
Fiber connector: FC/ST/PC

Product Name	Product Description	PDF
SDV-1000ZST/R	1 Channel Forward Video MM 2KM or SM 20KM
SDV-1010ZFST/R	1 Channel Forward Video+1 Channel Return Data MM 2KM or SM 20KM
SDV-1100ZFST/R	1 Channel Forward Video+1 Channel Forward Audio MM 2KM or SM 20KM
SDV-1110ZZFST/R	1 Channel Forward Video+1 Channel Forward Audio+1 Channel Return Data
SDV-1210ZZFST/R	1 Channel Forward Video+2 Channel Forward Audio+1 Channel Return Data
SDV-1000DST/R	1 Channel Bi-directional Video
SDV-1010DFST/R	1 Channel Bi-directional Video+1 Channel Return Data
SDV-1110DZFST/R	1 Channel Bi-directional Video+1 Channel Forward Audio+1 Channel Return Data
SDV-1110DZFST/R	1 Channel Bi-directional Video+1Channel Bi-directional Audio+1 Channel Return Data
SDV-2000ZST/R	2 Channels Forward Video
SDV-2010ZFST/R	2 Channels Forward Video+1 Channel Return Data
SDV-2020ZFST/R	2 Channels Forward Video+2 Channel Return Data
SDV-2110ZZFST/R	2 Channels Forward Video+1 Channel Forward Audio+1 Channel Return Data
SDV-2010DFST/R	2 Channels Bi-directional Video+1 Channel Return Data
SDV-2210ZZFST/R	2 Channels Forward Video+2 Channels Forward Audio+1 Channel Return Data
SDV-3110ZZFST/R	3 Channels Forward Video+1 Channel Forward Audio+1 Channel Return Data
SDV-4000ZST/R	4 Channels Forward Video
SDV-4010ZFST/R	4 Channels Forward Video+1 Channel Return Data
SDV-4110ZZFST/R	4 Channels Forward Video+1 Channel Forward Audio+1 Channel Forward Data
SDV-4130ZDDST/R	4 Channels Forward Video+1 Channel Bi-directional Audio+3 Channels Bi-directional Data
SDV-8000ZST/R	8 Channels Forward Video
SDV-8010ZFST/R	8 Channels Forward Video+1 Channel Return Data
SDV-8110ZZFST/R	8 Channels Forward Video+1 Channel Forward Audio+1 Channel Return Data
SDV-8130ZDDST/R	8 Channels Forward Video+1 Channel Bi-directional Audio+3 Channels Bi-directional Data
SDV-16000ZST/R	16 Channels Forward Video
SDV-16010ZFST/R	16 Channels Forward Video+1 Channel Return Data
SDV-16130ZDDST/R	16 Channels Forward Video+1 Channel Bi-directional Audio+3 Channels Bi-directional Data
SDV-24000ZST/R	24 Channels Forward Video
SDV-24010ZFST/R	24 Channels Forward Video+1 Channel Return Data
SDV-32000ZST/R	32 Channels Forward Video
SDV-32010ZZST/R	32 Channels Forward Video+1 Channel Return Data
SDV-64000ZST/R	64 Channels Forward Video
SDV-64010ZZST/R	64 Channels Forward Video+1 Channel Return Data

Sopto is a professional hi-tech optoelectronics manufacturer engaging in R&D, manufacture, and distribution of fiber optic products.We focus on developing fiber optical communication and WAN network field.With hard work and development for several years, we have established an advantageous technological group and completed reliable production lines.Our main range of products as below:

A.Fiber Optic Transceiver:SFP, GIBC, XFP, CSFP, X2, XENPAK and SFP+ modules
B.GEPON and CWDM system
C.Fiber Media Converters and chassis
D.PDH Fiber Optical Multiplexer
E.PCIe Network Card
F.Fiber Optical Patch cords
G.FTTH solution includes Fiber Cable, PLC Splitter, Fiber Optical Patch Panel, Fast Connector, Mechanical Splice, Fiber Optical Tools

Sopto has been marketing networking products in its own brand worldwide, including Europe, Asia, Oceania, Middle East, North America and South America, etc.Moreover, Sopto also provides customized design and production services for special applications and projects upon requests.

Our object is to sever the reliable and the best quality and the most satisfactory service to our clients;Do our best to meet customer's requirement and make most profit for our clients.If you want to know more our information, don't hesitate to contact us.We are looking forward to having a closed business relationship with you!
