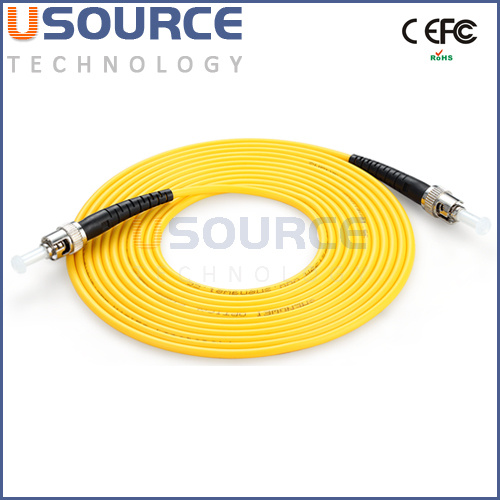

Telecommunication Engineering-class ST/UPC-ST/UPC Single Mode 3mm 9/125 5m fiber optic patch cord
Specifications
| Ferrule | Return Ross
(dB) | Insertion Ross
(dB) | Repeatability
(dB) | Durability Insertion/Withdrawal
(times) | Operating Temperature
(ºC) | Tensile Strength
(N) |
| PC(SM) | ≥45 | ≤0.2(Typical)
≤0.3(Max) | ≤0.1 | ≥1000/≥500 | -20ºC~85ºC | ≥90(Φ3)
≥70(Φ2) |
| UPC(SM) | ≥50 |
| APC(SM) | ≥60 |
Introduction
Fiber Optic Patch Cords are designed to interconnect or cross connect fiber networks within structured cabling systems. Typical fiber connector interfaces are LC, SC, FC and ST in multimode or single-mode applications. USource offers full line of fiber optic patch cord with all kind of connectors and fiber types and customized products.
Applications
- Optical networks (FTTx, PON, CATV)
- Data Centers
- Equipment distribution areas
- Equipment test areas
- Cross-connect applications
- Transmission systems
- Storage systems
- Switching Systems
- DWDM systems
Features
Compatible with industry standard, Telcordia's GR-326-Core, IEC Standard
RoHS Standard
High reliability and stability in various environments
100% polished and performance testing
High-quality of repeatability and matching suitability, Support more than 1000 times insertion
UPT-12345678 |
| 1.Fiber Mode | 2.Fiber Type |
| S=Single Mode, 9/125μm | S=Simplex (1 core) |
| M0=Multimode, 50/125μm | D=Duplex (2 core) |
| M1=Multimode, 62.5/125μm | C=Customized (4/8/12core) |
| 3.Cable Type | 5.Polishing #1 |
| 9=Φ0.9mm | P=PC |
| 2=Φ2mm | A=APC |
| 3=Φ3mm | U=UPC |
| 4.Connector #1 | 6.Connector #2 |
| 1=LC | 1=LC |
| 2=SC | 2=SC |
| 3=FC | 3=FC |
| 4=ST | 4=ST |
| 5=MU | 5=MU |
| 6=E2000 | 6=E2000 |
| 7=MPO | 7=MPO |
| 8=MTRJ | 8=MTRJ |
| 9=SMA | 9=SMA |
| 0=Others | 0=Others |
| 7.Polishing #2 | 8.Cable Length |
| P=PC | X=x meter (1=1m, 12=12m) |
| A=APC |
|
| U=UPC |
|
To be a world-leading manufacturer in telecommunication, USource Technology is specialized in developing, manufacturing, and selling optical passive products, active products and subsystem. The impeccable quality management and expertise in optical communication development enable USource Technology to rapidly deliver marketing leading, high performance optical components and subsystems. The vertically-integrated business and good service enable the products from USource Technology exported to dozens of countries in the world.
Professional in fiber connection solutions in Telecom:
Passive products: Fiber Optic Patch Cord indoor and outdoor solutions, Field Assembly Connector, PLC Splitter, CWDM Mux Demux
Active products: Optical Transceivers, 10G Module/CWDM&DWDM Module/SFP Series/1X9 SFF Package, Media Converter
Customized products: USource has a professional technical team designing customized products to meet customers' special requirements.
