Telecommunication Equipment LC-LC Fiber Patch Cord in Telecommunication Networks

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	RoHS
Condition:	New
Type:	Fiber Opitc Patch Cord

Product Description

Product Description

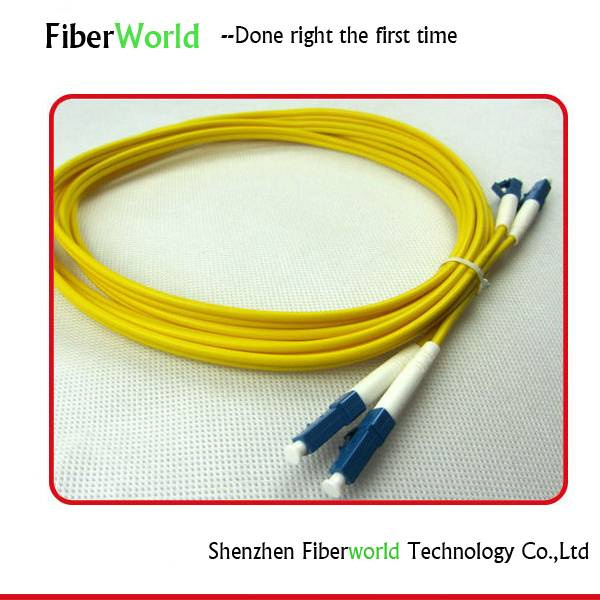

Fiber Patch Cord LC-LC
1.Simplex or Duplex
2.High quality
3.T/T,L/C
4.UL/CE/ISO9001
Product Specification/Models
Model NO. Fiber Patch Cord LC-LC
Style LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC Duplex MTRJ/Female, MTRJ/Male
Fiber Type
9/125 SMF-28 or equivalent (Singlemode) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125,
10G (Multimode) OM3
Cable Type
Simplex, Duplex (Zipcord) 3.0mm, 2.0mm,0.9mm
PVC or LSZH
Polishing Manner UPC,SPC,APC (8°& 6°)
Insertion Loss less than 0.1dB (For Singlemode Master) less than 0.25dB (For Singlemode Standard) less than 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (For Singlemode)
Operating Temperature -40C to 85C
Geometry Requirement (For Singlemode) Ferrule Endface
Application
CATV
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications
