Product Specifications
| Prod Model: |
MZ-CT |
| Markets: |
North America,Southeast Asia,Africa,Mid East |
| Telecommunication Tubular Tower: |
Telecommunication Angle Steel Tower |
| Structure: |
Four-Post Steel Tube Tower |
| Material: |
Steel Pipe Tower |
| Belly Bar Shape: |
Communication Tower |
Product Description
1. Steels: ASTM A36; ASTM A572
2. Hot-DIP galvanization: ASTM A123
3. Structure: Self-supporting tubular towers, angle steel tower, Broadcast&TV tower, microwave tower, roof top tower, watch out tower, medium wave tower
4. Connection: Bolted&welded, flange, slip joint
5. Life time: 50 years at least
6. MOQ: 20 tons
7. ISO9001: 2008, OHSAS 18001, iso14001
Monopole Telecom Tower
Communication tower is the main carrier of launch communication signal reception and transmission equipment, a complete coverage infrastructure for mobile communications.
As one of types of Communication Tower, height of Single Pipe Tower is generally designed from 30m to 60m with 2 platforms. And it usually located in the place that polulation is relatively small due to its exposure of the antennas.

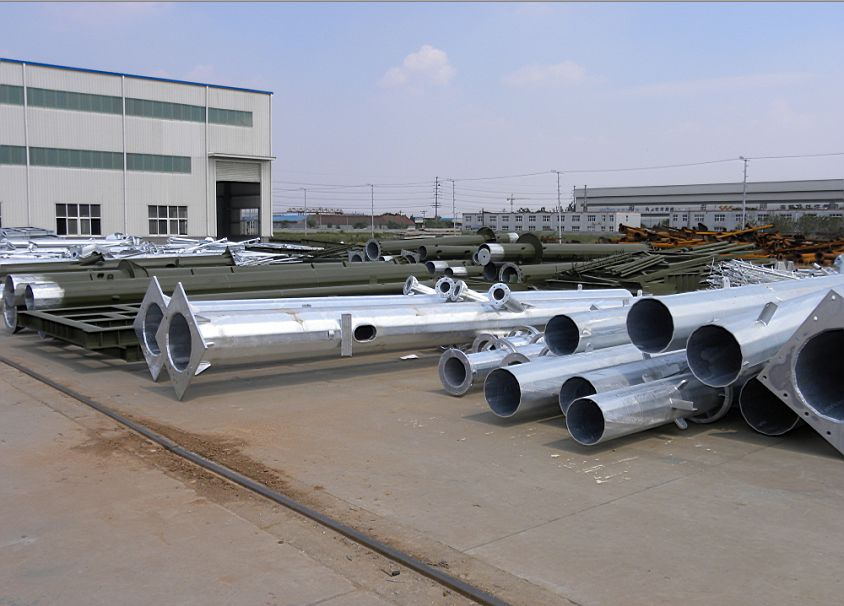

A popular telecom tower model is the Flange Monopole Tower; This tower can reach 18 sided monopole that reaches heights of up to 60m. The flange monopole tower is made of several tapered hollow steel sections. These individual sections are bolted together with circular flanges, and are able to efficiently handle medium to heavy loads. This model of telecom tower is which is offered by us is generally suitable for standard single or multi operator cellular sites. The monopole telecom tower is designed for heights of 15 to 60m and can be shipped in an OT 40' container.
Another monopole telecom tower that is very popular is the slip-joint monopole design. The slip-joint monopole is made of several tapered hollow steel sections which are connected in the slip joint method. This telecom tower design is ideal for light to medium loads and heights up to 40m. It is equipped with a number of accessories including lights, lighting protection kits, and antenna mounts. This telecom tower can be customized to fit specific installation specifications.
Mingzhu is equipped with sophisticated machinery and equipment for the manufacture of monopole for power transmission line and telecom project, monopole is one good choice for power transmission and telecom application due to its less space, less time to install and are aesthetical in appearance, compared to conventional lattice tower. Monopole towers use a minimal space requirement, and with a solid and stable structure from which to add additional carriers.
Other Basic Terms:
1. Price Term: EXW, FOB, CFR or CIF.
The price includes pole shaft, base plate, crossarm and anchor part.
Shipping seaport: Qingdao Port. For FOB, CFR or CIF price, please specify which exact model you need, and tell us your order quantity so that we can calculate the local transport charges and sea freight.
2. MOQ: 1 SETS
3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Package: 40' OT Container
5. Delivery: For 30 sets, goods can be ready for shipment within 20 workdays after receiving deposit.
6. Parts Design Service Period: 20 years.
| Height | 5-50M |
| Wind Pressure | 0-300 KM/H |
| Structure | Overlap Connection |
| Material | Q345B/A572, minimum yield strength >=345MPA; Q235B/A36, minimum yield strength>=235MPA |
| Details & Shape | Can be designed as per customer's requirement |
| Good's Description | Cable and Ladder can be assembled by customer's request |
| Lifetime | 5 years |
| Main Pole Lifetime | More than 25 years |
| Barks | Hot Dip Galvanization and Special Tree Gluewater |
| Delivery Time | 28 days after receiving deposit |
| Galvanizing Standard | EN ISO 1461,ASTM/A123 or equivalent |
| Working & Resting Platform Quantity | 1-3 PCS |
| Antenna Support | 3-18 PCS |
| Microwave Dish | 3-18 PCS |
| Manufacturing and Workmanship | BS449 or AISC |
| Welding Standard | BSEN287, BSEN288 or equivalent |
| Nuts& Bolts | Grade 8.8 |
| Spare parts | All Necessary parts, e.g. Antenna Mount pole and Brackets , Climbing Steps, Safety Guide Cable, Lightning Rod, Mounting bracket for Obstruction light, Holding down bolts/nuts, and all other bolt and nuts required for erection and installation |
Qingdao Mingzhu Steel Structure, Co., Ltd., was established in 1993, located in Jiaozhou Bay of Qingdao, which is also a large-scale comprehensive industrial group. Through many years of development, the company now covers an area of over 199, 998 square meters, workshop covers 100, 000 square meters, owns fixed assets of RMB 0.12billion, registration capital of RMB 0.1billion, employs more than 450 staffs, among them, senior engineer 8 people, engineer 36 people, technical personnel 90 people, and has an annual production capacity of 110, 000 tons. Engaging in tower manufacturing for more than 15 years, we have become a professional manufacturer in the design, manufacture and installation of steel tower mast structure, tubular tower &mast, substation framework and other steel structures. Our main products include all kinds of steel towers and similar steel structures widely used in the fields like power transmission, substations, telecommunication, microwave-communication, radio/TV broadcasting, mapping, watching and other fields. In compliance with the customers' requirements, we can provide design, production, installation &EPC or single contracted project services. Our products have been exported to American, UK, Bangladesh, Pakistan, Nigeria and Vietnam etc.
