Telephone/Net Signal Surge Protector for CE

Product Specifications

Prod Model:	bnc
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Surface Properties:	52mm*25mm*25mm
Warranty:	1 Year
Response Time:	<1ns
Way To Install:	Series Connection
Type:	Signal Type Arrester
Structure:	Valve Type Arrester
Installation:	Tandem Arrester

Product Description

Product Introduction

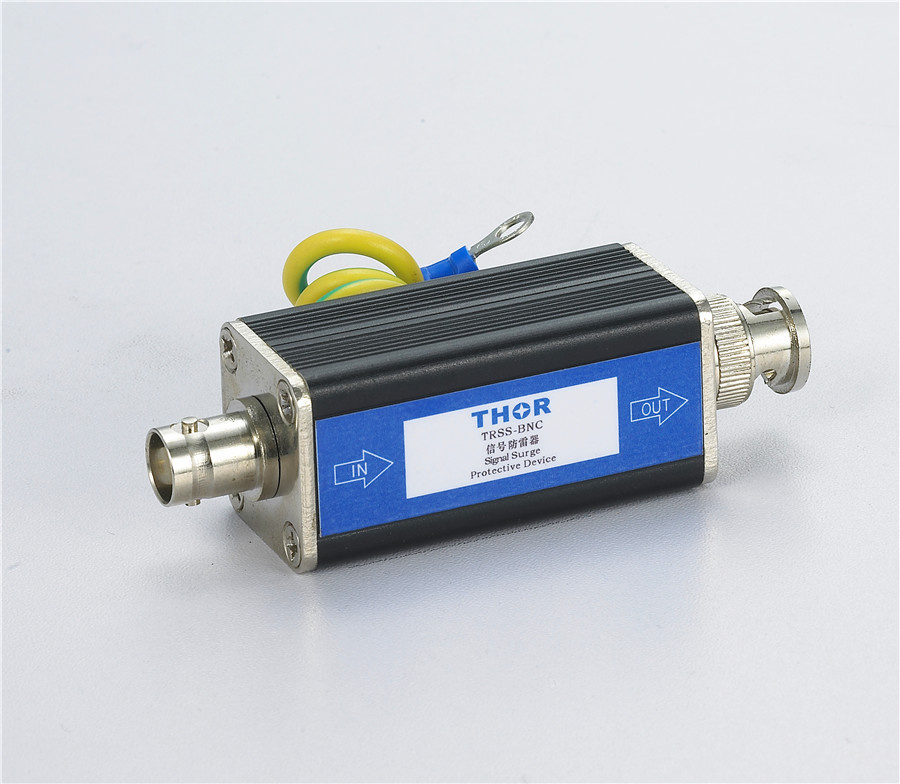

TRSS-BNC seres coaxial communication signal surge protective device,designed according to IEC standard,divided inti F10 head,N head,BNC head and etc coaxial interface,suitable for CATV,monitoring,video communication equipment.It can provide the protection for cable and thicknet equipment.


Technical Parameter


Characteristics
1.Protection against surging over-voltage in communication circuit.
2.Wide bandwidth, low insertion loss.
3.BNC bidirectional interface.
4.Free of maintenance.
5.Fast response.

Installation
These series installed st BNC,N,F10,TNC,F and etc coaxial interface between LPZOB and LPZ3.It applied in close-circuit TV,monitoring system,security system,and the computer network system of coaxial signal transmission,satellite communication system VSAT.

pecifications

Max transfer speed :100M Bit/s
CE Certification
Response time :<1ns
Professional manufacturer
6 years OEM service



Multi-Connection Net Signal Surge Protector(spd)

Detailed Product Description:

Application:
TRSS-RJ45-24 multi-connection net signal surge arrester . used for protecting Ethernet 100 Base T/TX .100Vg-Any-LAN.  CDDI.  OBASE-TIEEE802.3.  EURO-ISDN etc . Like HUB from damage for inductive thunder bolt electric wave . surge and static interference

Specificatious:
1):Operating Voltage (Un):≤8V
2):Operating current :100mA
3):Nominal discharge current (8/20us)(In):5KA
4):Connection form :RJ45
5):Response time :<1ns
6):Standard distribition line:1/2    3/6    4/5     7/8
7):Max transfer speed :100M  Bit/s
8):Voltage protection level up:line--line  35V               line--PG   300V
TRSS-RJ45-24 series can add remote signal control function


Technical data
Type		TRSS-RJ45-24
Nominal voltage Un(V)		5V
Nominal discharge current(In)8/20μS		5kA
Voltage protection level (UP):	line-line	60V
	line-PE	250V
Max transfer speed		100MB/S
Response time (ns)		1ns
Connection inpotout put		RJ45
Pinning		1/2,3/6, 1-8





Technical data
Type		TRSS-BNC-24
Nominal voltage Un(V)		5V
Nominal discharge current(In)8/20μS		5kA
Voltage protection level (UP):	line-line	25V
	line-PE	600V
Max transfer speed		16MB/S
Bestwith fo		≥20MHZ
Imax loss		≤0.3db
Test socket connection loss		≥20db
Connection inpotout put		BNC



Technical data
Type		TRSS-RJ11
Nominal voltage Un(V)		≤180V
Nominal discharge current(In)(8/20μS)		5kA
Voltage protection level (UP):	line-line	250V
	line-PE	250V
Max transfer speed		2MB/S
Response time (ns)		1ns
Connection inpotout put		RJ11
Pinning		3/4


Specifications

lightning protector(BNC+2)
Protection class :Provides III/C
CE Certification test Report
manufacturer ,professional OEM


3In 1 Lightning  Arrester(spd)voltage surge suppressor
Detailed product Description:
Application:
TRSS-BNC+2  3In1 surge arrester is mainly  used forsupervisory control system . preventing product form Lightning strike and surge possessing three kinds of production for single-phase AC power source 24V    36V     48V   and video signal
Specifications:
1):AC power source: 24V      36V    48V
a):Protection class :Provides III/C
b):Connection form:in series
c):Rated operating voltage (Un):220V    AC
d):Voltage protection level (up):<1800V
e):ISN(8/20us):10KA
2):485 Control Signal:
a):Roted Operating voltage (Un):24V   DC
b):Voltage protection level (up):<60V
c):Thunder carrent capacity (ISN)(8/20us):5KA
3):Video signal:
a):Connection form :BNC
b):Rated operating voltage (Un):24V    DC
c):Voltage protection level( up):65V/300V
d):Thunder current capacity (ISN)(8/20us):5KA
e):Transfer speed :20Mbps
f):Standing wave rate :<1.2
g):Inserting loss:<0.2db
TYPE:TRSS-BNC3In1
Voltage:
220V--24--BNC
220V--36--BNC
220V--48--BNC

TRSS-BNC+2 series can add remote signal control function
