Telescopic Type Davit Device for Ship
Product Specifications
| Prod Model: |
DY7384940 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Load: |
65-180 Kn |
Product Description

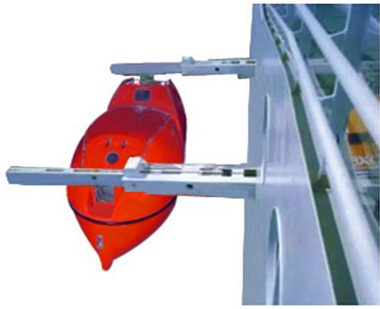

Telescopic type davit device/Marine boat Davit Device
The telescopic device is used for hanging realted boat on board. The device arm could be moveable horizontally, also, which could hang the boat from the parking lacation to water position, also recovery it from the water position to the parking location, and the lifting device could make vertical movement of the boat. Vertical movement and horizontal movement can be in independently controlled manner. This device meets the 1974 International Convention for the safety of life at sea, International life-saving appliance regulations(LSA)&IMO, MSC. 81(70) and other regulatory requirements.
| type | Max working load | Max recover load | Breath | Height | Suitable winch | Suitable boat
M |
| TD65 | 65KN | 42 KN | 3650 | 4500 | D50S/D50Z | BCF-6.5 |
| TD80 | 80 KN | 40 KN | 4000 | 4850 | D63S/D63Z | BCF-7.5 |
| TD120 | 120 KN | 60 KN | 4700 | 5500 | D80S/D80Z | BCF-8.5 |
| TD150 | 150 KN | 65 KN | 5300 | 5600 | D100S/D100Z | BCF-9.5 |
| TD180 | 180 KN | 70 KN | 5600 | 5700 | D125S | BCF-10.3 |
Zhuhai City Deyuan Import&Export Co., Ltd is a subsidiary company of China deyuan marine fitting Co., Ltd, .
We are the leading and trusted supplier of marine equipment and offshore equipment in the marine market of China.
We do export business globally in the market for many years and export lots of marine equipment to different countries. Our target is to be the best alternative for the customer's bottom line in the long perspective and always put good quality, good service in the first place. Because of that, we win high appreciation from our customers and have high reputation in this field
Our products include:
Marine life saving equipment: (immersion suit, life boat, inflatable boat, life raft, life jacket, life jacket light etc)
Marine fire fighting equipment: (FIFI system, SCBA, EEBD, fire suit, heat insulation suit, fire extinguisher etc)
Environment Protection Equipment: (Oily water separator, sewage treatment plant, fresh water generator, UV-sterilizer etc)
Marine Mooring Equipment: (marine anchor, anchor chain etc)
Marine Power&Propulsion Equipment: (Tunnel thruster, marine propeller, marine shaft etc)
Marine Deck Equipment: (Marine Windlass, Marine Winch, Marine Davit)
Marine Diesel engine: (CUMMINS Diesel engine, Weichai diesel engine, Deutz diesel engine)
These products are SOLAS compliant, approved by different Classification Society, such as ABS, BV, KRNK, GL, LR, RINA, CCS, DNV, IRS. Pls contact us for more information or just send yr inquiry to us.
We are very confident that our ethusiasam and profession, integrerity will earn your trust.
