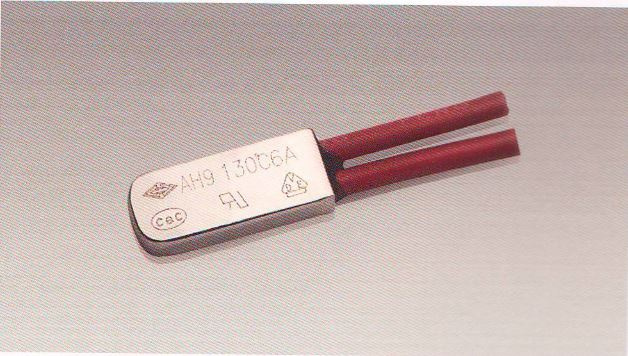

Temp-Sensing Protector

Product Specifications

Markets:	South America,Mid East

Product Description

Item no.: AH9
Panted product:
The integrated injection molding main structure is more reasonable and more compact.
Square silver contact with longer resistive and larger current-carrying capacity.


AH9 series is auto-reset temp-sensing protector,the snap-action of bimetal will cut off the circuit when pre-calibrated temp are reached,protecting electrical from fault condition, the bimetal will auto-recover to connect circuit as the temp drops to reset temp-rating


AH9 series divided into large & medium & small sizes according to different currrent-carrying capacity. There are metal & plastic cases for your choice, metal case are more sensitive to heating response and higher temp-resistanced campared by plastic case.

Specifications		Applications
Type	Normally closed	Temp anomaly protection
Electrical Rating	AC125V/16A AC250V/8A	AH9	AH9B
Operating Temp	50ºC--150ºC (5ºC Step)	transformer, series motor, NI-MH battery,air-conditioner,washing machine, juicer, vacuum cleaner, massage chair, seat heating pad, etc.	transformer, series motor, lighting, NI-MH battery,vacuum cleaner, massage chair,seat heating pad,electric blanket, etc.
Operating Tolerance	+3ºC +5ºC
Reset Temp	Operating temp decreased by 30ºC+15K
Contact Resistance	≤50mΩ
Insulation Resistance	≥100mΩ
Loading time	≥10000 cycle

Product covered:
USR, CNR Component- Operating Control, Temperature Limiter, Model AH9, f/b blank, f/b 50-150.

General character:
The devices covered by this report are bimetal -actuated, single-pole, single-throw, non-adjustable, normally closed, automatic reset type temperature limiter for use in household appliance. The contacts of these devices open on temperature rise.

This device si an Operating Control (Type 2.B) and was not investigated for performing any safety/protective functions. Temperature deviation and drift was verified according to Appliance Thermostat requirments in CSA E60730-2-9, Annex AA.
