Product Specifications
| Prod Model: |
TDW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Refrigerator |
| Certification: |
ISO |
| Control Type: |
Mechanical |
| Type: |
Temperature Controller |
| Display Type: |
Indicator |
| Material: |
PVC |
Product Description

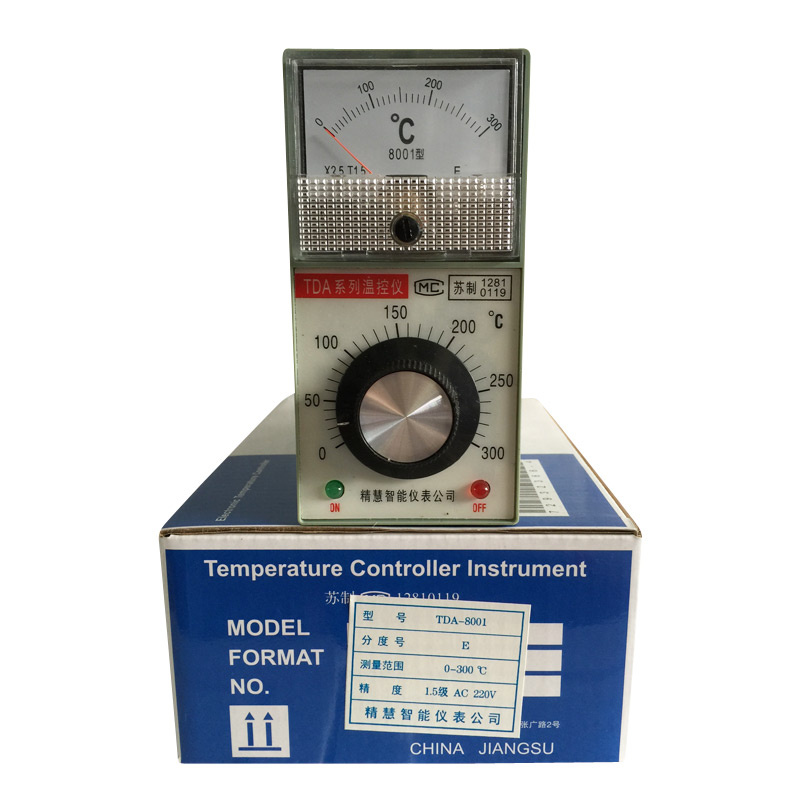

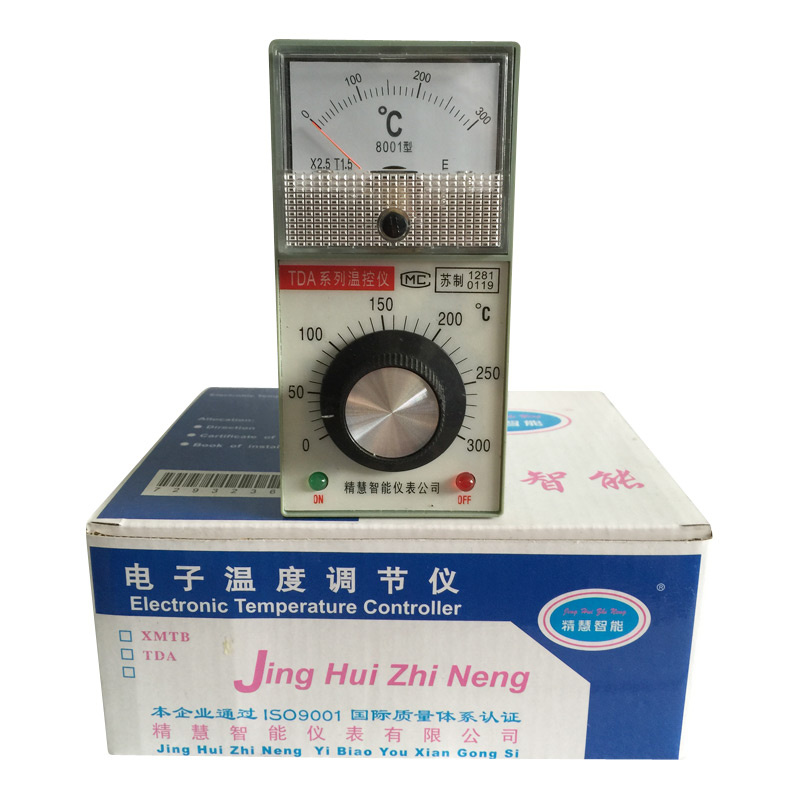

TE/TD series temperture controller
TDW
small volume, light weight, beautiful outline, good reliability
| TDA, TDW, TE72 and TE96 series electronic temperature indicating adjuster is a novel automated meter produced by our factory with small volume, light weight, beautiful outlook, good reliability, strong shock resistance and anti-jamming ability,it owns function of cold junction autocompensation when equipped with thermocouple, and can add over temperature alarm function for particular order. Thereinto, installing holing dimension of TDW series meter is the same with XC series moving coil meter and it is the enewed product based on moving coil meter. It is widely used for -200°C~1800°C temperature measure and autcocontrol of different industries such as metallurgy,plastic machinery,rubber machinery,packing machinery,dress, food,printing &dyeing and so on. |
Model | TDA- | TDW- | TDB | TEA- | TED- | TEFG(TE-) | TE96 |
8001
8002
8301
8302 | 2001
2002
2301
2302 | 0301
0311 | 2001
2002
2301
2302 | 4001
4002
4301
4302 | 2001
2002
2301
2302 | 4001
4002
4301
4302 | 01
02 | 2001
2301
3001
3301 |
Input Signal | Thermocouple(×××1type) Thermal Resistance(×××2type) |
Display Mode | full range index indication | warp
indication | full range
index indication | on-off
indication | full range
index indication | on-off indication |
|
Adjusting Mode | two digits adjusting(×0××type) time proportion adjusting(×3××type) overrun alarm(××1×type)
relay's output connecting point capacity3A 220V 10A 110V precision 1.5 class |
precision | 1.5class | 2.5class |
Temperaturerange | Equipped with thermocouple(×××1type meter) -200~1800°C
equipped with heat resistance (×××2type meter)-200~800°C |
Outline Dimension | 60×120×150 | 160×80×150 | 48×96×120 | 96×96×142 | 72×72×135 | 48×48×120 | 96×96×120 |
