Product Specifications
| Prod Model: |
Slim KIC 2000 Thermal Profiler |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

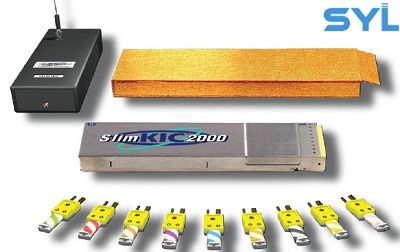

Temperature Record Analysis Reflow Oven Wave Soldering SMT PCBA Slim KIC 2000 Thermal Profiler
Profiling So Easy, Anyone Can Do It
By automating the complex task of process set up the SlimKIC® 2000™ makes profiling so easy that any operator can quickly achieve the optimal process. Simply select from a built-in library containing hundreds of commonly used solder paste specifications, and the software automatically defines the process window. Oven zones and mapping of thermocouples on the product are automated using innovative, patent pending technology.
The SlimKIC 2000 simplifies profiling by reducing the process to a single number -- the Process Window Index™ (PWI) -- so you know precisely how good your profile is. The simplified user interface guides the operator through the profiling process, minimizing the potential for improper oven set up and yield-reducing defects.
Profiling Reduced to a Single Number
For precise ranking of profile performance, the KIC software uses the Process Window Index (PWI). The PWI measures the profile's fit to the process window in a mathematical and objective manner by using a single number. This aids in optimizing the process by comparing and ranking alternative profiles in terms of their fit to the available process window. The lower the PWI, the more efficient and stable the process! (See the PWI data sheet for a detailed explanation)
Technical Specifications
1.Accuracy: ±1.2C
2.Resolution: Variable 0.3C to 0.1C
3.Internal Operating Temp: 0C to 105C
4.Thermocouple Compatibility: Type K, 9 or 12 channels
5.Temperature Range: -150C to 1050C
6.Power Requirements: Standard 9V alkaline battery
7.Thermal Receiver: 433.92 MHz (Dual Unit Model only)
8.Dimensions: See Temperature Tolerance Chart below for specifications
Datalogger Model: data is downloaded to the computer through a cable after the run.
Dual Unit Model:data is sent to the computer in real-time during the run. It is also stored internally for high-speed download after the run.
Computer Configuation
Minimum System Requirements
1.When KIC 2000 Software is running on the same computer as the Oven software, and/or when additional KIC 2000 Software options are installed, a faster CPU and more RAM may be required.
2.A USB to Serial Adapter may be required to connect the SlimKIC 2000 for profiling.
3.Contact KIC for issues with operating systems other than those listed.
400 MHz Processor, Celeron / 128 Mb RAM1
1 Gb available storage (for product history)
Video 1024 x 768 resolution / 16-bit
1 available serial port or USB port2
1 available parallel port or USB port for software key options
Microsoft® Windows® 2000 or XP3
Payment terms:
1. T/T
2. Paypel
3. Western union
4. L/C
5. Escrow
Package and Delivery:
1. Standard wooden box package.
2. Delivery in 1 workday after receive payment.
3. Transport by DHL,FedEx, TNT, UPS, EMS or by air freight or sea freight.
Our Service:
Training: Life time free of training and maintenance.
Warranty: Two years of free warranty. Lifetime warranty.
We offer three ways to training and warranty:
a. Welcome to visit our Shenzhen head office for training and warranty.
b. Overseas local office for training and warranty.
c. The third party offer training and warranty.
More details please contact with us.
Shenzhen Siyuanli Technology Co., Ltd is a professional manufacturer engaging in electronic equipment design, production, sale and service. Equipped with high caliber R&D team, many engineers have over 20 years experience in SMT equipment field.
Adopting advanced technology, our R&D team successfully develops a series of new machines. Our sales engineers are equipped with comprehensive SMT process knowledge and are committed to provide the best solution to our clients.
We initiated 2-hour response system in service, providing heartedly, thoughtful and quick consulting service within 24 hours and on-the-site service. To perfect this service system further,
Our professional engineers have developed a distance training system, enabling to help our customers solve problems and offer technical support.
In recent years, We aim its development at the international market in good time, making exchanges actively with the international companies of the same trade, and has established a relationship of cooperative agent, Our products have been sold far to India, Spain, Brazil, Pakistan, America, Europe, Middle East and Southeast Asian countries.
