Product Specifications
| Prod Model: |
SHUA-WR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Red/Blue |
Product Description

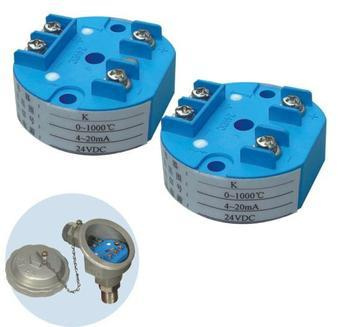

pt100 high performance temperature transmitter module
pt100 high performance temperature transmitter module Working condition
Thermocouple electrodes made of two different conductor materials. When the temperature difference on the measuring terminal end with the reference potential, heat is produced, the instrument will display the temperature value of the thermal electromotive force
Nominal pressure
Usually at room temperature, protective tube can bear static pressure without rupture. Allowable working pressure not only with the protection of pipe material, diameter, wall thickness, and the structure, installation method and by the side of medium velocity, species.
Main Technical Parameters
The implementation of product standards IEC584 IEC751 JB/T5518-1991 JB/T5582-1991
The temperature range and temperature
Type |
Division
No. |
Tolerance |
I |
II |
Permissible
difference |
Measuring Range |
Permissible
difference |
Measuring Range |
WRN |
K |
±1.5°C |
-40-375 |
±2.5°C |
-40-333 |
±0.004t |
375-1000 |
±0.0075t |
333-1200 |
WRE |
E |
±1.5°C |
-40-375 |
±2.5°C |
-40-333 |
±0.004t |
375-800 |
±0.0075t |
333-900 |
WRP |
S |
±1°C |
0-1100 |
±2.5°C |
0-600 |
±1+0.003(t-1100) |
1100-1600 |
±0.0025t |
600-1600 |
WRQ |
R |
±1°C |
0-1100 |
±2.5°C |
0-1100 |
±1+0.003(t-1100) |
1100-1600 |
±0.0025t |
1100-1600 |
WRR |
B |
- |
- |
- |
- |
- |
- |
±0.0025t |
600-1700 |
Remarks: t are measured temperature element of absolute value
The company is set Branch, engineering, trade and an integrated enterprise, the main production: Wire and cable, instrument of the three categories of over 500 varieties of more than 2000 specifications. The company provides the following products for your selection and welcomed the use of its main products are: WR series thermocouple, WZ series of thermal resistance, bimetal thermometers, gauges, intelligent digital regulator controllers, temperature converters, display and power cable special cables, control cables, electrical wire and cable equipment communication cables, thermocouple wire compensation, compensation cable and high-temperature fluorine plastic compensation wire, cable, silicone rubber control cables, overhead cables, ACSR and aluminum cables, etc...
The company attaches great importance to science and technology development and technological progress, in December 2000 introduction of a special cable production line, self-regulating heating cable series is currently the most favored by the majority of users of high-tech products. The Company and the National Institute of more than 10 projects to establish a cooperative relationship, sales network throughout the country.
We will adhere to the "technology works, good faith, " the purpose and dedication to providing quality products and excellent service. Welcome patrons, the inquiry.
