Tempering Furnace Used in Tempered Mini Glass with CE Certification

CE Certificate High Automation Flat Mini Glass Tempering Furnace

1.Brief introduction of Mini Glass Tempering Furnace
Mini Glass Tempering Machine is used for producing small-size flat, bent tempered glass for architecture, and multi-curvature bent tempered glass for automobile, shower cabins and kitchen, etc.The type of sheet glass including float glass, coated glass, tinted glass,soft low-E glass etc.

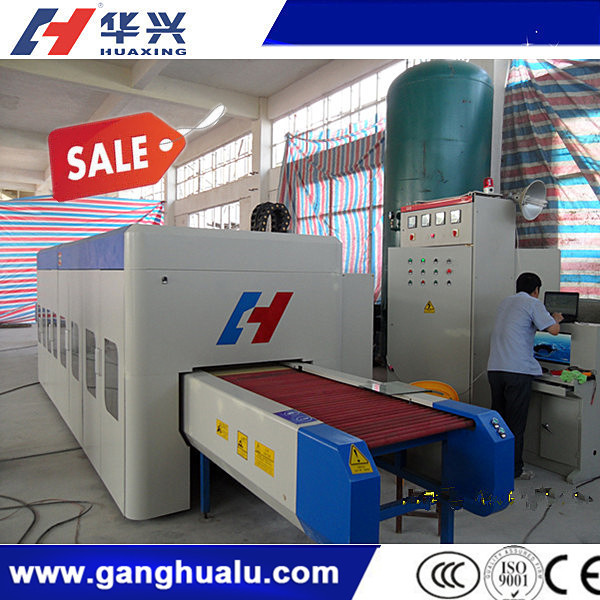

2.Picture of Mini Glass Tempering Furnace


3.Technical Parameter of Mini Glass Tempering Furnace



Types	Maximum Specification (mm)	Minimum Specification (mm)	Thickness (mm)	Capacity (5mm) Square meter /hour	Power supply capacity (KVA)	Product Use
HP1506	1500*600	90*90	3-8	14	≥100	Main uses:advanced insudstrial instrument,light sheet,home appliances and other-ultra-thin ultra small or large size glass
HP1508	1500*800	100*100	3-12	18	≥150
HP2010	2000*1000	100*100	3-12	30	≥200
HP2012	2000*1200	120*120	3-12	37	≥250
HP2512	2500*1200	120*120	3-12	46	≥250



4.Main Parts

5.Technical features
1)Adopting Jet Convection heating technology and have a flat quenching section and a bending quenching section
2)Each bending system has one individual fine adjusting device, slightly adjusting the local curve necessarily for the best possible quality products.
3)Adopting precise screw pairs in bending mechanism, which ensures smooth curve of bent glass. There will be no accumulated error in bending mechanism.
4)Different curves can be set and achieved by simply input the numbers via human-machine interface. With precise screw pairs in bending mechanism and servo control system, the end products are of high quality.

6.Factory assembly


7.Tempered glass application area

1)Laminated tempered glass: Architectural glass, tempered glass, bending glass, bullet-proof glass, art glass sandwiched with true flower, silk, cloth, pattern, photo etc.
2)Windshield for cars, trains, military vehicles and ships
3)Solar pv panel/led laminated glass

 8.Quality standard
1)The product meets Chinese national quality standard
2)Glass stress equilibrium, particle
3)Quality of all finished glass is the same
4) Heat resistance: conform to international standard

9.Our Service
1)Installation and Training
 Technicians are available to serve overseas for installing and training.
2)Warranty
one year quality guarantee or the whole machine except for the man-made damage and force majeure circumstances.  Lifelong maintenance. Customer response service time within 12 hours.
3)Cost
Above mentioned travel expense is on the buyer, including the round ticket, accommodation cost
and the daily wage.


10.Company Profile
China Glass Tech Co.,Ltd was founded in 1998, formerly known as Shandong Huaxing Glass Tech Co., Ltd. Mainly engaged in R&D and manufacturing of glass deep processing technologies and glass deep processing devices.
We are membership units of China Building Glass and Industrial Glass Association, and 10 strong units of Shandong Building materials industry.
