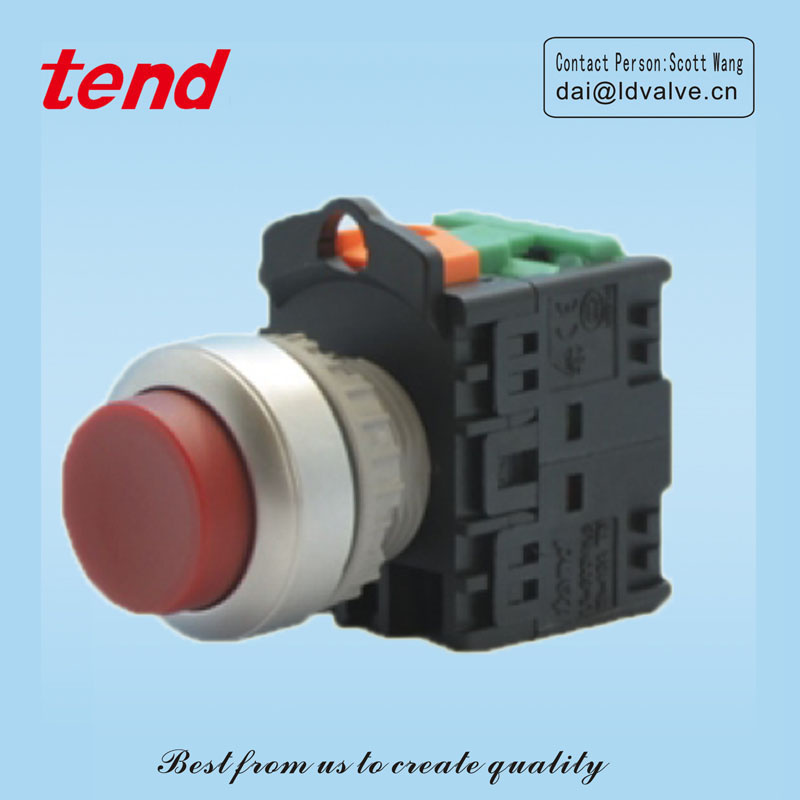

Tend Tb2ba Push Button Switch

Name: Tend Tb2ba Push Button Switch
Brand: China-Manufacturer-Directory.com
SKU: 728671535
Availability: InStock
Rating: 4.6 (72 reviews)

Supplier:	Suzhou Icomeon Automation Equipment Co., Ltd.
Price:	US $ 8/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	TB2BA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Button Color:	Red/Green
Button Diameter:	38mm
Usage:	Check Button
Kind:	Single-pole on-off Switch
Type:	Normal Open

Product Description

TEND TECHNOLOGY CO., LTD. Was founded in 1978. We quickly developed and established ourselves as one of the leading and largest manufacturer of switches in Taiwan. We design and manufacture a variety of control components, toggle, micro and limit switches, illuminated push button switches, indicators, photoelectric switches and terminal blocks.
TEND TECH believe quality must always come first. Our products have CE, TUV, VDE, UL approval.
TEND TECH products are sold throughout the world and are respected for quality, reliability and performance. We are an Original Equipment Manufacturer for some of the world*s major brands.

It must use transparent button to have marking printing on buttons. The colors can be distinguished by using different colour guard ring.

Model number: TB2A, TB3BA

The contact block of this series is standard for contact arrangement and dimensions. Twin touch type can only used with AB connect

CONTACT BLOCKS CAN HAVE THE FOLLOWING 3 STYLES. IT DEPENDS ON THE FIXNG BLOCKS.

1. Stand contact block: Standard fixing block with contact block. It can be extented to 4c (or 8a)used in non- illuminated products.

2. Direct contact block: Direct fixing block with contact block. It can be extented to 4c(or 8b)used in illuminated products.

3. Transformer type contac block: Transformer type fixing block with contact block. It can be extented to 2c (or 4a or 4b)used in transformer in illuminated products.

Operating frequency	Mechanically Push button(momentary)60 cycles/min,Other 30 cycles/min.
Operating frequency	Electrically 30cycles/min
Service life	mechanically Push button (momentary)3,000,000 operations,others 300,000 operations
Service life	electrically Push button (momentary)500,000 operations,others 200,000 operations
Shock	durability Tans former series 600m/s2,other 250m/s2
Shock	malfunction Push button(momentary)1000m/s2.,others 250m/s2
Vibration	malfunction 10~55 Hz double amplitude 1.5mm
Vibration	50mΩ max.(Initial value)
Contact resistance	50mΩ max.(Initial value)
Insulation resistance	100M Ω min.(500VDC)
Dielectric strength	2500VAC,50/60 HZ for 1 minutes
Ambient temperature	-20ºC~+60ºC
Humidity	45~85%RH

Designation	Signal	Description
1.Mounting Hole	TN2 TN3	Φ22mm /Φ25mm
2.Type	BF BL BM BA BK BP BT	Flat Long head Mushroom head Long head(alternate) Push-lock Push-pull Twin-touch
3.Lens Color	R G Y W BL B	Red Green Yellow White Blue(only avaliable with lettering) Black
4.No.of Contacts Fitted	1 2 3 4	1 2 3 4
5.Type of contact Block Fitter	A B C AB	1a 1b 1a1b 1a+1b
6.Lettering	00 P01~P43 M01~M22	NO Lettering See TA86 TPP See TA86 TPM
