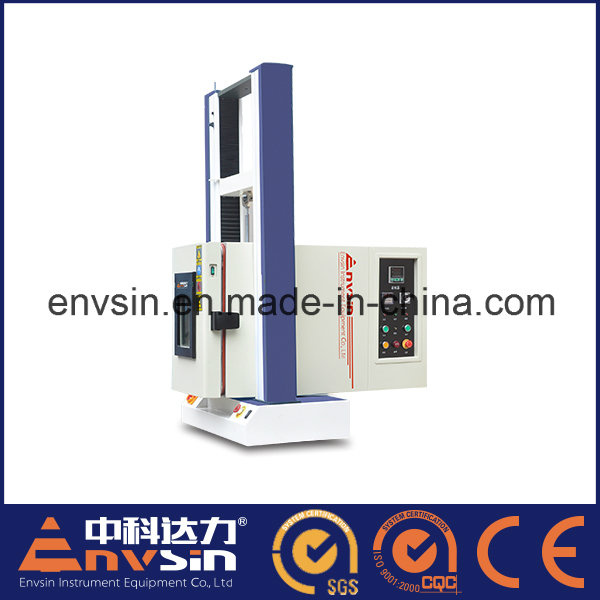

Tensile test instrument for rubber testing
Tensile test instrument for rubber testing has a tensile structure mounted on a oil cylinder which is used to drive the tensile structure up and down, and the oil feeding rate to oil cylinder is controlled by a servo valve. such as HUALONG servo-hydraulic universal testing machine.
Servo-hydraulic tensile test instrument from China features:
1. Deformation test function on plastics, rubbers and mental specimens.
2. PC with professional software management for parameters setting, test control, data collect and analysis.
3. Pre-installed complete database kernel providing professional data analysis.
4. Customized test mehods set in accordance with special demands or requirements.
5. Great optional functions: pull, press, bend, rub, cut, peel, tear, sustained pull or press and anti-fatigue test, etc.;
6. Metal stretch meter, displacement coder and large deformation extensometer interfaces reserved.
7. Fixtures Removable and Replacable.
8. High accuracy: Gapless ball screw and synchronous transmission system design.
9. Quick frequency response servo motor for control centre unit, making transmission sensitive, accurate and of low noises level.
10. Update service for operation system; professional data analysis ability.
11. Tensile combined with environmental temperature parameters for multiple testing purposes.
12. Independant and removable environmental chamber of high accuracy; constant temperature control.
Servo-hydraulic tensile test instrument from China pecification
High Temperature ModelETP/
High/low Temperature Model ETPS |
ETP200-X (X is test force)
|
ETPS415-X (X is test force)
|
| Temperature Range | Rt~200ºC -40~150ºC |
| Temperature Accuracy | Constancy:<±0.5 ºC ; Homogeneity:<±2.0ºC (No load) |
| Max. Force | 200kg/500kg/1000kg/2000kg/10000kg/20000kg; one of them provide |
| Operation System | PC with Windows system and total opening professional test management software |
| Force Measureent Accuracy | <±0.5% |
| Dectection Resolution | 1 /300000 |
| Deformation Test Resolution | 0 .01mm |
| Deformation Scale Reading Accuracy | <±0.5%(0.2~10mm) |
| Force Range | 0 .4% ~ 100%F.S |
| Test Speed Range | 0.01~500mm/min; 0.5~500mm/min; 0.5~1000mm/min; stepless speed regulation |
| Speed Control Accuracy | ±1%(0.01~10mm/min); ±0.5%(10~500mm/min) |
Costant Force/Deformation/Displacement | if <10%FS, then ±1.0%; if ≥10%FS, then ±0.1% |
Control Accuracy | if <0.05%FS, then ±2.0%; if ≥0.05%FS, then±0.5% |
Deformation Speed Control | 450mm,fixtures excluded (depended on the volume of temperature chamber) |
Max. Test Stroke/Trael | Left and right 220mm; back and front 350mm(depended on the volume of temperature chamber) |
Test Space | Force unit: kgf,gf ,N,kN,Ibf ; |
Stress Test Unit | Stress unit: MPa,kPa,kgf/cm²,Ibf/in² ;
Deformation unit: mm,cm,in; |
Stop Methods | Limit sensors up and down; emergency stop button; Programmable force and stretch set; Specimen damage sensors |
Special Functions | Sustained pull, press, fatigue, bend, fold, cut and other tests as required by users in accordance with test methods or standard. |
Transmission Structure | High accuracy ball screw |
Power Device | Quick frequency reponse servo motor |
Power | AC230V±10%,50HZ,1/N/PE (200~2000kg Models);AC380V±10%,50HZ,3/N/PE (10000~20000kg Models) |
Chamber Internal Dimension(W×D×H) | 220mmx350mmx450mm(with obversation window and light) |
Chamber External Dimension (W×D×H) | Tensile Tester Dimension: 760mm×450mm×1540mm / 1130mm×650mm×2650mm(200~2000kg/10000~20000kg Models); Dimension:450mm×1050mm×600mm / 450mm×1450mm×600mm(Extreme High Temp./High/Low Temp. Modes);
OverallDimension:760mm×1050mm×1540mm / 1130mm×1450mm×2650mm (min/max); |
Test Standards | GB, ISO, ASTM, BS, DIN, JIS standards |
Customized Model | Accepted all kinds of customized design for specific functions |
