Tepcon POM Polyoxythylene Plastic Resin for Radio Cassettes
Product Specifications
| Prod Model: |
M90 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Polyacetal/POM |
| Usage: |
Engineering Plastics |
| Color: |
White |
Product Description
Acetal Copolymer/ Polyacetal/ Polyoxymethylene/ POM Plastic Resin
POM is an acronym for the chemical name polyoxymethylene. It is generally referred to as polyacetal or acetal resin.
Polyoxymethylene POM Uses:

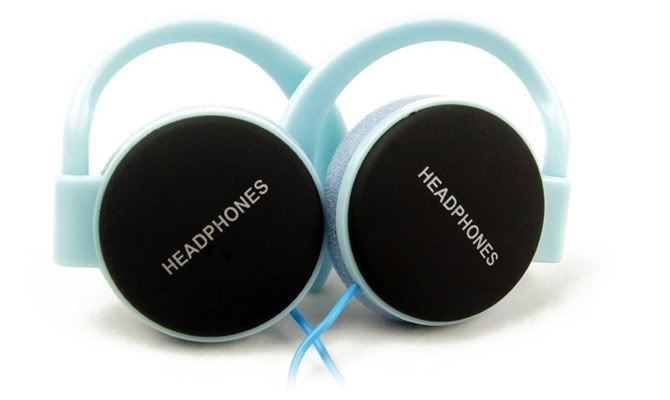

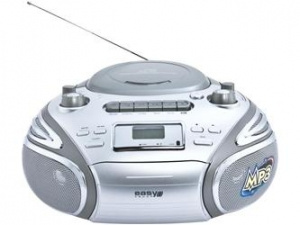

1. AV equipment such as VCRs, CD/laser disk/MD players, radio cassettes, headphone stereos;

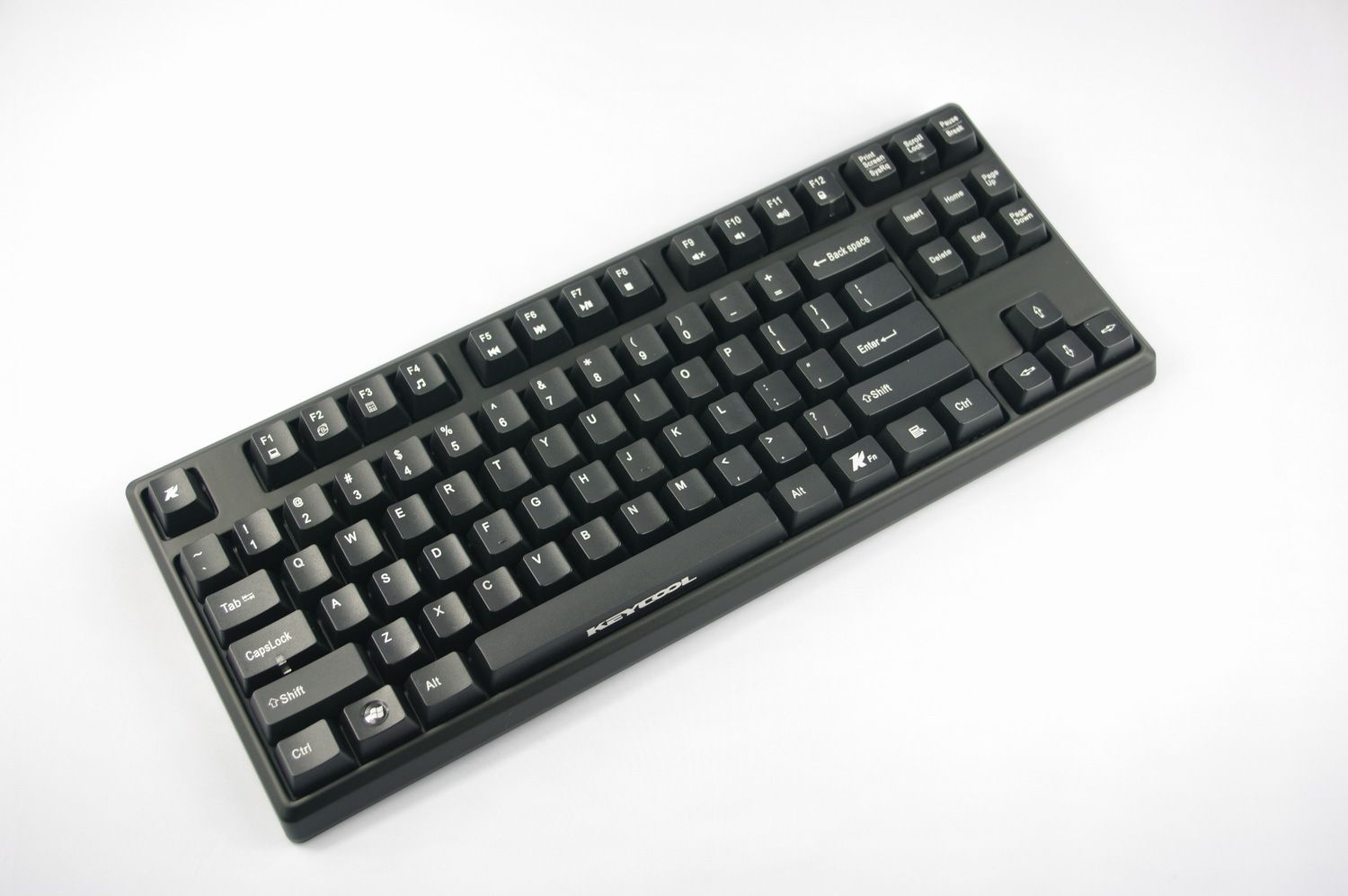

2. OA equipment such as printers, keyboards, and CD-ROM drives;
3. Home electrical appliances such as washing machines and dryers
4. Auto parts such as seat belt mechanical components, outer door mirrors, door mirrors, and engine room components;
5. Precision components used in such products as cameras and watches, construction materials, toys such as game machines, and stationery.Tepcon
Acetal Copolymer / POM
General Grade
| Properties | Test method | Unit | M90 |
| Specific Gravity | ISO 1183 | g / cm 3 | 1.41 |
| Tensile Strength | ISO 527-1,2 | MPa | 62 |
| Tensile Elongation | ISO 527-1,2 | % | 35 |
| Tensile Modulus | ISO 527-1,2 | MPa | 2,700 |
| Flexural Strength | ISO 178 | MPa | 87 |
| Flexural Modulus | ISO 178 | MPa | 2,500 |
| Charpy Impact |
|
|
|
| Notch Side | ISO 179 / 1eA | KJ / m 2 | 6.0 |
| Deflection Temperature under load (1.8MPa) | ISO 75-1,2 | °C | 95 |
Coefficient of Linear Thermal
Expansion (Flow) 23~55°C | ISO 11359-2 | x 10 -5 / °C | 12 |
Coefficient of Linear Thermal
Expansion (Vertical) 23~55°C | ISO 11359-2 | x 10 -5 / °C | 12 |
Dielecttric Strength
(Short-time test:3mmt) | IEC 60243-1 | kV/mm | 19 |
| Volume Resistivity | IEC 60093 | Ω.cm | 1 x 10 14 |
| Surface Resistivity | IEC 60093 | Ω | 1 x 10 16 |
| Flammability UL94 | UL94 |
| HB |
Static Charge Half Life(20°C,
65%RH) |
| Sec | > 50 |
| Arc Resistance |
| Sec | 240 |
Comparative Tracking
Index (CTI) |
| V | 600+ |
| UL Temperature Index |
|
| 105~110 |
| Electrica |
| °C |
|
| Mechanical with Impact |
| °C | 90~95 |
| Mechanical without Impact |
| °C | 90~100
|
Xiamen Dynachem Import and Export Trading Co., Ltd. Was established in 2003 as a specialist in plastic resins and acrylic sheets. We are also an authorized agent of international industry manufacturers including Teijin - Panlite Polycarbonate, Polyplastics - Tepcon & Duracon POM, Mitsubishi Rayon - Acrypet PMMA & Shinkolite Acrylic Sheet, Toray - Toyolac ABS, CCP - PBT & EVOH, Z-clean Purging compound, PP Nucleating Agent, TPE, TPEE and so on.
After over 10 years of efforts and development, our products have been successfully marketed across China, South Africa, Brazil, New Zealand and other areas. Below are famous brands that we work with on plastic resins and acrylic sheets:
Plastic Resins:
1. Bugaboo, an American stroller enterprise, comes to us for cooperation in new component development.
2. Toto, Kohler, Jomoo and SoLux, well-known in sanitary industry, source our raw materials.
3. Midea, Panasonic, Galanz, Soueast Motor, Toyota, Honda and Mazda, specify us as their plastic material supplier.
Acrylic sheets:
1. H&M company is our one-year acrylic sheet business partner.
2. Xiamen Airport, Fuzhou Changle Airport, Chengdu Airport and Tianjin Airport, use our plastic acrylic sheets for their signage.
3. Agricultural Bank of China, Bank of China and more, place repeat orders on our plastic acrylic sheets for their outdoor sign boxes, billboards and display equipment.
4. Developing a new customer of the blue logo billboard for Suning Appliance Company by using our plastic acrylic sheets.
