Testing Electrostatic Powder Coating Machine
Product Specifications
| Prod Model: |
Colo-610T-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
110/220V |
| Power: |
50W |
| Protection Type: |
IP54 |
| Warranty: |
12months |
| Capacity: |
500ml |
| Coating: |
Powder Coating |
| Packing Size: |
42X42X50cm |
| Gross Weight: |
17kgs |
| Payment: |
Tt 100% in Advance |
| Delivery: |
2-4 Days According to The Order |
| Type: |
Electrostatic Spraying Equipment |
| Certification: |
ISO |
| Method Type: |
Manual |
| Application: |
Hardware Spraying Equipment |
Product Description

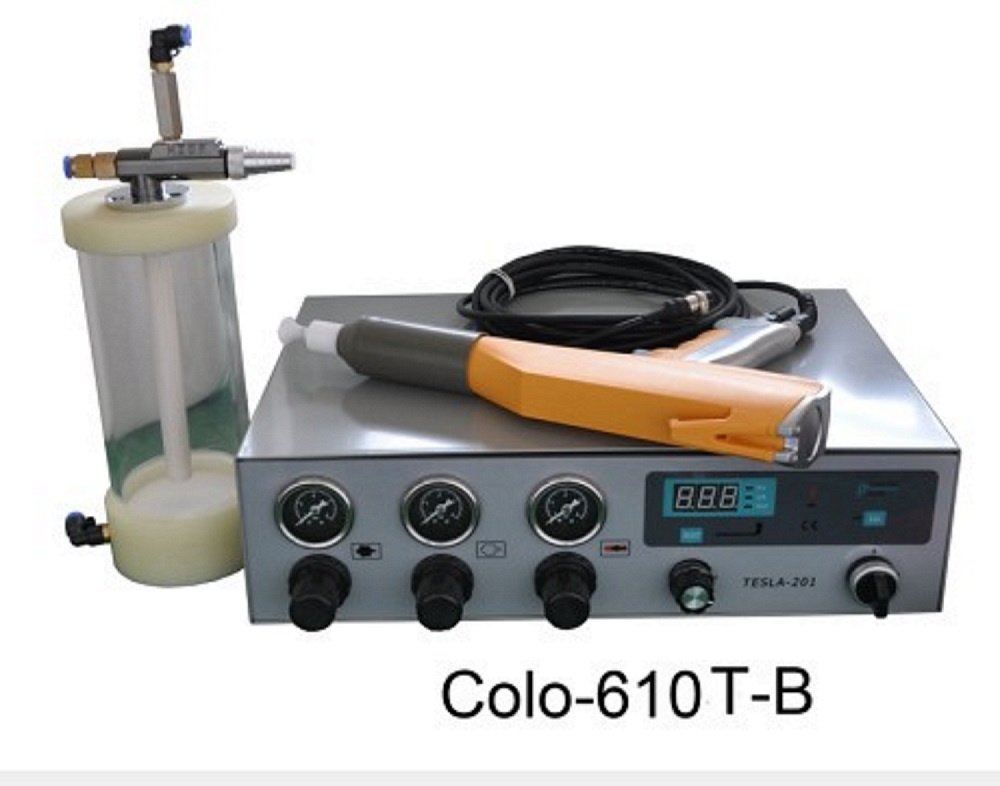

Testing electrostatic powder coating machine COLO-610T-B
1,manual powder coating systems
2, Testing electrostatic powder coating machine ,digital display model
3,good for coating workpieces with complicated shapes
Feature Description
COLO-610T-B,is laboratory unit,the perfect solution for laboratory powder coating applications.Designed for short runs,with a 1L fluidizing powder hopper and is easyly cleaned between colors changes..This model is used for spraying workpiece flat parts,
complicated parts and recoat parts workpiece with deep corners.
Electrical data
Mains input voltage: 220V/110V
Operating frequency:50HZ /60HZ
Powder:50W
Output voltage (to the gun):0-100KV ( adjustable)
Maximum output current (to the gun): 180UA(max)
Protection type:IP54
Approvals:CE Certification
Pneumatical data
Input pressure: min. 6 bar(87PSI)/max. 10 bar(145PSI)
Recommended input pressure: 7 bar(101.5PSI)
Max. water vapor content of the compressed
air 1.3 g/m³
Max. oil vapor content of the compressed air 0.1 mg/m³The powder coating cup gun for tests at powder manufacturers' premises.powder coating equipment
powder coating equipments
powder coating machine
powder coating unit
powder coating machinery
powder coatings machine
powder coatings machines
powder spray gun

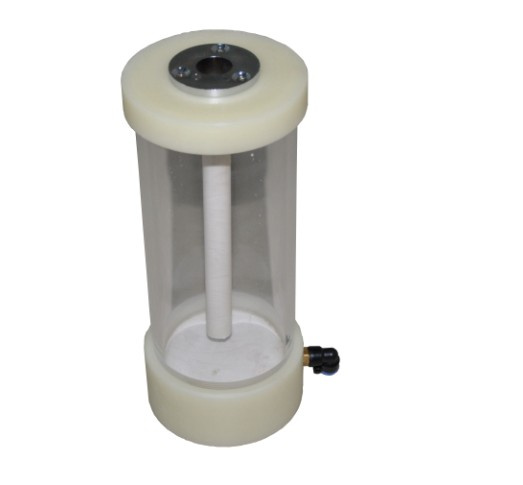

Mini powder coating hopper
capacity: 2l
dia:10cm
height:20cm
Use Performance K powder pump, K powder injector
Including:
Length of Gun Cable:6m
Powder Hopper Volume : 45L
Manual Powder gun with gun cable x 1
Powder Gun Spare Parts x 1 kit
Control Unit x 1
Fluidized Powder Hopper x 1
Oil-water separator x 1
Air pressure regulating valve x 1
Powder Hose ,Air Tubes ,Grounding line: 1kit
