Testing Equipment Material Rapid Change Temperature Testing Machine
Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
| Type: |
Temperature Alternating Test Chamber |
Product Description

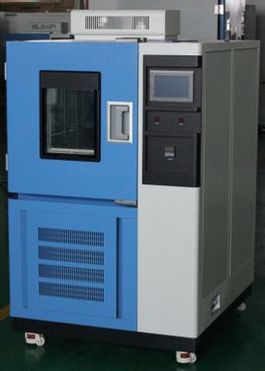

Material Rapid Change Temperature Testing Machine
Introduction&Application:
Rapid Change Temperature Thermal Test Chambers simulates the changed environment of test temperature with rapid change rate based on linear or non linear, which is used to detect the resistance ability of electronic, automobile, rubber, plastics, aerospace science and technology, military technology and advanced communication equipment and other products in the heat and cold conditon, so as to judge the reliability and stability for the products, improve the products quality and provide the basis for the reliability.
Feature:
1 New design, easy operation.
2 Imported LCD touch controller.
3 Uniform air supply cycle system.
4 Long axis motor is vertically installed on the top.
5 Bright and spacious observation window.
6 Advanced security protection device
7 Rapid heating-up and heating-down temperature
Technical parameters
Performance | Temperature humidity
method | Equilibrium temperature humidity (BTHC) PID intelligent adjustment |
| Temperature range | -40ºC±130ºC (150ºC) -60ºC±130ºC (150ºC) |
| Temperature uniformity | ≤2ºC |
| Temperature fluctuation | ≤±0.5ºC |
| Temperature change rate | Average 3ºC/min-15ºCmin(optional),Linear 3ºC/min-15ºC/min (optional) |
| Inside capacity(L) | 100 | 150 | 225 | 408 | 800 | 1000 |
| Size | 400*500*500 | 500*600*500 | 500*600*750 | 600*800*850 | 800*1000*1000 | 1000*1000*1000 |
| Material | Inner material | SUS304 Mirror stainless steel plate thickness=1.2-1.5mm |
| Outside material | SUS304 Wire drawing of stainless steel plate or antirust processing cold-rolled steel sheet(spraying plastics) |
| Thermal insulation | Superfine glass wool or polyurethane foam |
| Refrigeration system | Cooling way | Air/water cooling |
Refrigerating
machine | Fully enclosed compressor (imports) |
| Wind system | Centrifugal fan |
| Gas flowing way | Broadband type forced air circulation(up go down come) |
| Heater | Nickel-chromium alloy heating wire heater |
| Refrigerant | HFC-R404A/HFC-R23 |
| Control system | Digital temperature controllers and humidity controllers programs of touch screen(TEMP850) |
| Security device | Leakage protection, water protection, overtemperature protection, quick fuse compressor over-voltage protection and current protection |
| Standard configuration | Internal heating type hollow glass observation window 1PCS/Floodlight 1PCS/Test hole 60mm and Rubber plug each 1pcs/ sample frame 2 layer/Wet ball gauze 1pcs/small caster 4pcs/power line (limit 3M) |
Shenzhen Lianxin testing equipment Co., Ltd(Referred to as "LianXin detection", )with HongKong LianXin testing equipment is a global professional wire and cable, Mobile phones and environmental testing equipment research and development, Production and sales of high-tech enterprises. With excellent working environment and the advanced production equipment, Also introduced a number of highly qualified knowledge and technical personnel and marketing elite, For the company has been rapid development has laid a solid foundation.
The company's products are widely used in wire and cable, connectors, LED, photoelectric, electric power, electronic and network communications and other industries and departments, Mainly includes:
1. All kinds of environmental simulation test equipment(Constant temperature and humidity, thermal shock, Rapid temperature change, aging, UV, etc);
2. All kinds of DC wire tester, AC double head plug wire tester;
3. All kinds of wire and cable equipment and appliances experiment equipment(Swing machine, salt spray machine, pulling machine, insertion force testing machine, etc);
4. All kinds of mobile phone simulation test equipment(Flip, slide, falling, click on the line, such as key life test etc. );
5. All kinds of safety equipment(High pressure/pressure gauge, low resistance, insulation resistance, digital bridge, etc);
6. All kinds of environment the calibration equipment.
Our company with domestic and foreign large and well-known enterprise or its affiliated companies to maintain good, the good faith cooperation. Such as "the same continents, BYD, Samsung Group, " and so on, Is the most powerful in the same industry at home and abroad with the size of the testing instrument producer.
Products are exported to all over the world, deeply the customer high praise. Company in Vietnam, South Korea, India, Hong Kong, Shanghai, zhejiang, changsha, Beijing, guangzhou, zhuhai, foshan, dongguan, such as setting up branch office, Forming technology service network, for users across the country to provide professional technical services. Company to fully implement the customer is supreme principle, Set up to the quality strives for the development, the service strives for the survival of development policy, with customers to establish long-term friendly relations of cooperation.
