Product Specifications
| Prod Model: |
SP-560 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Load Dump: |
DC14+87V(Td400ms) |
| Brightness: |
400CD /M2 |
| Operating Temperature: |
-20 Degree to +70 Degree |
| OSD Menu: |
Set Each Camera Mirror/Normal Image |
| Interface: |
Air Plug |
| Chip: |
CCD |
| Definition: |
600tvl |
| Waterproof Grade: |
IP69k |
Product Description
China factory price CE FCC Rohs TFT screen monitor for Vehicle, Livestock, Tractor, Combine

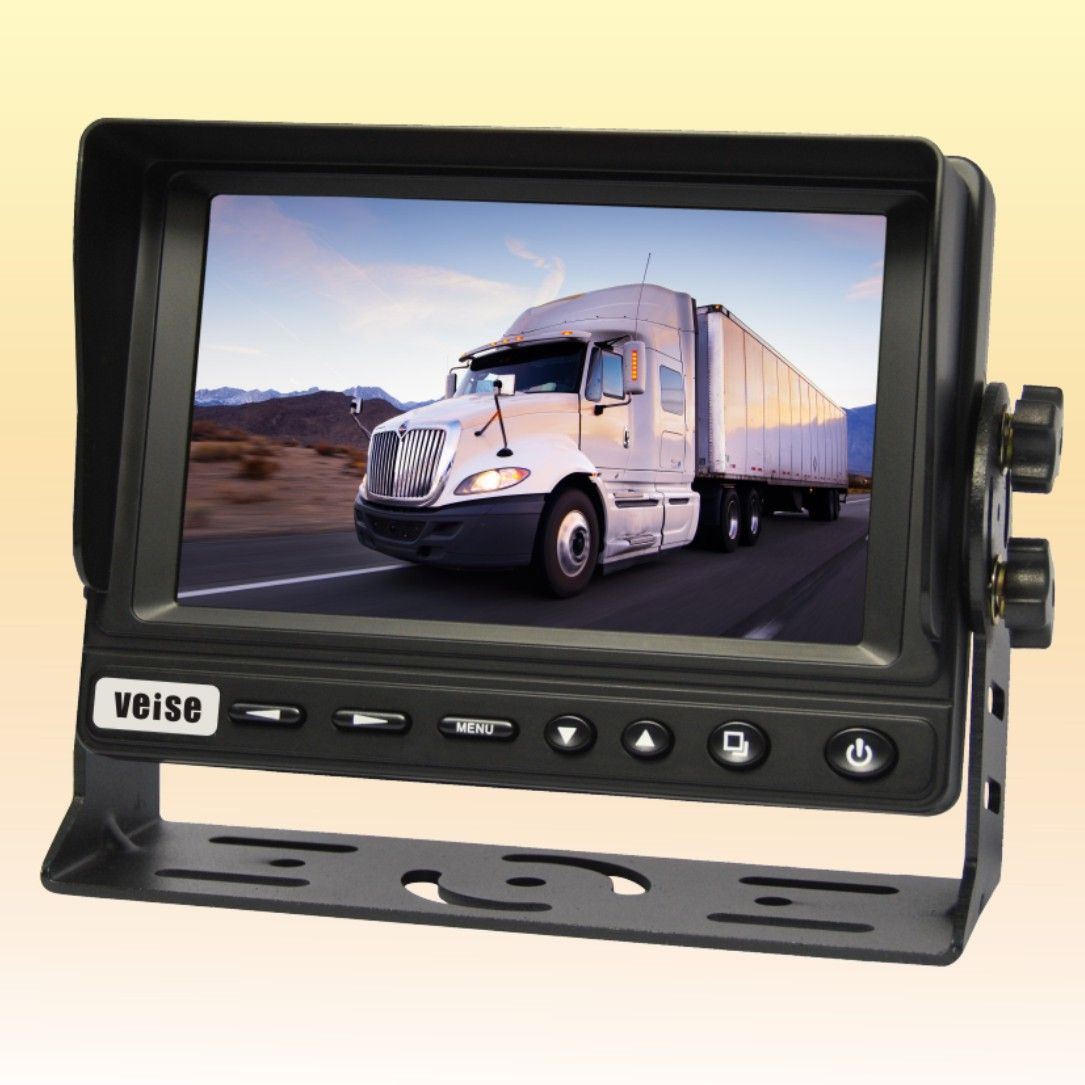

5"Digital Screen Monitor with Removable Sun Visor,DC14+87V(Td400mS) 5pulses Load Dump,400cd/m2 Brightness
Application USA Techwell Automotive Digital Video Processor
OSD Menu Separately Set Each Camera Mirror/Normal image ,Reversing Image Delay Time 0-30",Trigger priority
Multi-languages of display available: Chinese,English,French,German,Italian/
Spanish,Portuguese,Russian,Dansk,Polski,Nederlands
Free Operating Voltage DC11~32V
Mobile Vision Monitor
| 5"Digital Screen TFT LCD Monitor with Removable Sun Visor |
| Model | SP-560 |
OSD Menu Function |
Separately Set Each Camera Mirror/Normal image , Reversing Image Delay Time ,Trigger priority, Multi-languages |
| Video Inputs | 2 CH Video |
| Audio Inputs | YES |
| Connector Receptacle | 9 Pin |
| Display Resolution | 800RGB(H) X 480(V) dot |
| Color System | PAL/NTSC (AUTO) |
| Brightness (cd/m2): | 300 |
| Contrast ratio | 500:1 |
| Load Dump | DC14+87V(Td400mS) 5pulses |
| Operating temperature | -20ºC to +70ºC |
| Storage temperature | -30ºC to +80ºC |
| Operating Voltage | DC11-32V |
| External dimensions | (L x W x T) (157 x 118 x 67mm) Including mounting bracket |
| Weight Approx: | 230g |
Product Accessories |
| U- Support Bracket,Angle Adjustment Screw,Electrical Connecting Cable |
|
Veise (Guang Zhou) Electronics Co., Ltd. is a high-tech enterprise engaging in the R&D, selling and manufacturing of vehicle rear view monitor camera system, mobile DVR quad back up system, farm CCTV systems for car, heavy truck, trailer, SUV, farm tractor, forklift, compactor vehicle, street sweeper, mobile home, passenger bus and mining vehicle.
Since 1997, our company insists on developing innovative vehicles vision safety system for both workers and vehicles, such as can not only eradicate blind spots night-vision equipped cameras but also improve workplace safety, minimize vehicle damage, human injuries and fatalities. Independent research and development of the world's first infrared night vision waterproof camera, digital screen monitor with removable sun visor, DVR quad monitor, wireless camera monitor backup System and more.
Our company are passed the requirement from quality management system for production, such as ISO/TS16949: 2009 Advanced Product Quality Planning (APQP), Design Failure Mode and Effects Analysis(DFMEA), Process Failure Mode and Effects Analysis(PFMEA), Measurement System Analysis(MAS), Statistical Process Control(SPC), Production Part Approval Process(PPAP) to design a production approach, effectively improve the quality of company management capability and product quality.
Applying the energy-saving Low power techniques and industrial grade material quality standard, the company design all the mechanical parts pre-verification through 3D simulation minimiz mechanical and assembling errors, and protect from water and vibration. Our Producing capacity of the rear view backup camera system is: 30000 sets monitors, 40000 sets cameras per month of SMT components and simplify the process. Can provide professional OEM, ODM service.
Our company has introducted advanced production facilities and reliable test equipment: Anti load dump, Waterproof, Vibration testing instrument, Environment temperature, Salt fog detection apparatus ets, VEISE monitor camera system complies with ISO-7637-2.
Our rear view Monitor and camera has design patent, model patent. And get the MA, IP69K, EMC, FCC, RoHS, E-MARK. Without special requirements the lead-time is 2-4 weeks and warranty for 2 years.
