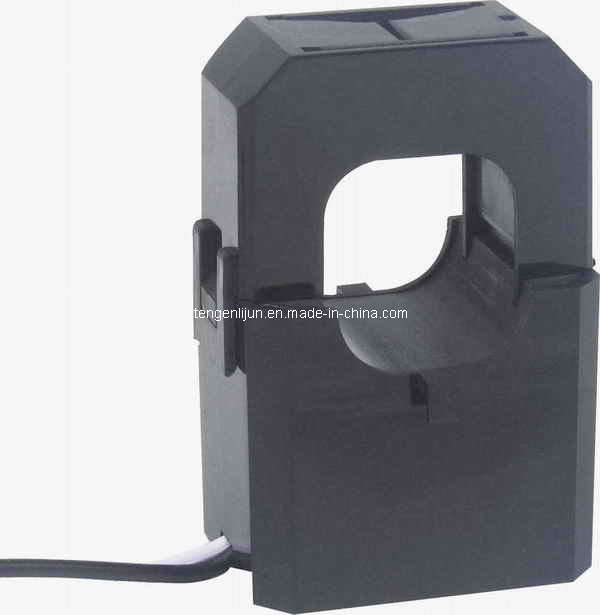

TG1 Series Open-Close Core CT
Product Specifications
| Prod Model: |
TG1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
SPECIFICAIONS
-Rated Primary current: 200A.
-Secondary current: 40mA
-Precision: 0.5,
-Rated Voltage: 720V
-Standard: IEC60044-1, BS7626
-Rated Frequency: 50/60Hz
-Rated test voltage: 3kV AC. (1 min)
-Rated short-time thermal current(Ith): 60In
-Rated dynamic current, (Idyn): 2.5Ith
-Rated voltage, (Um): 0.72Kv AC.
-Continuous overload, (ID)1.2In
-Operating temperature: -10C~50C
-Safety factor FS 5
DESCRIPTION:
The TG1 Series Split Core Current Transformers has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or bus-bar circuit. The connection of conventional CTs usually requires the interruption of the primary side circuit to pass cables or bur-bars through the transformer core or to connect such cables to the primary terminals. TheTG1 series CT core may be easily opened and they may be installed and connected without any supply interruption. Thus saving time and the installation costs
FEATURE:
-Very easy to mounting.
-Wide inner window, allowing clamping of cables or bus-bars. Wide range of sizes to accommodate all the existing installations.
|
Rated Primary Current |
Secondary Current |
Accuracy Rate |
|
200A |
40mA |
0.5 |
|
100A |
40mA |
0.5 |
|
60A |
20mA |
0.5 |
|
6A |
2mA |
0.5 |
|
5A |
2mA |
0.5 |
Long Road Electric Co., Ltd founded in 2010, is located in the largest manufacturing base of low-voltage electrical equipment of Wenzhou China, which is called "the Electric Device Metropolis of China". Long Road Electric Co., Ltd is committed to the production, marketing and service of smart high and low voltage electrical components, smart power systems, and is one of the most dynamic companies in China's smart electrical industry. The company has strong independent innovation capabilities, has a number of core technologies, and has obtained a number of patents, it has passed IS09001: 2008, 14000, OHSAS18000 and other certifications. Among them, the Internet of Things circuit breakers and DC power distribution products for photovoltaics and communications have a leading level in the industry. They have taken the lead in passing CE, CB, IEC, SGS, Nemko, SAA, SASO, TUV, CCC, Golden Sun, VDE etc. Certification authority.
With the joint efforts of all employees and the strong support of our customers, the company has achieved considerable development, continuously increasing its market share, and has become a high-quality supplier of intelligent high and low voltage electrical appliances. The company's rich product line can provide customers with one-stop system solutions, which greatly facilitates customers' selection and application.
First-class products, derived from advanced design concepts, sophisticated production equipment, strict testing methods, perfect quality assurance system, fast information feedback and excellent after-sales service. Providing users with first-class products and services is Long Road Electric constant pursuit.
Long Road Electric Co, Ltd regards quality of products as life. The products sells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa, Nigeria etc...More than 80 countries and regions.
Long Road Electric Co. Ltd is always striving hard to provide the best services and competitve pricing to all customers.
