The Cleaning Machine with Railway Track
| Price: |
US $ 200000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size As Per Customer's Request: |
Color Can Be Green or Blue or White |
Product Description

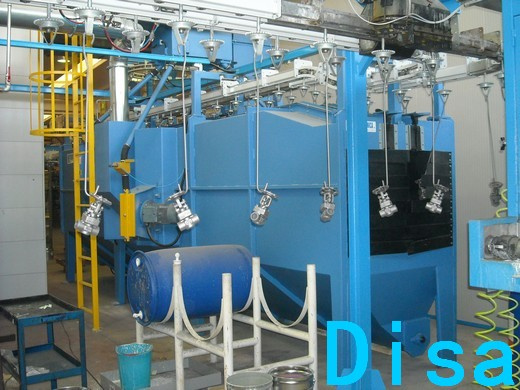

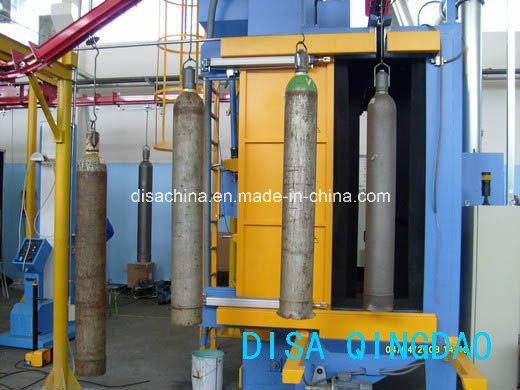

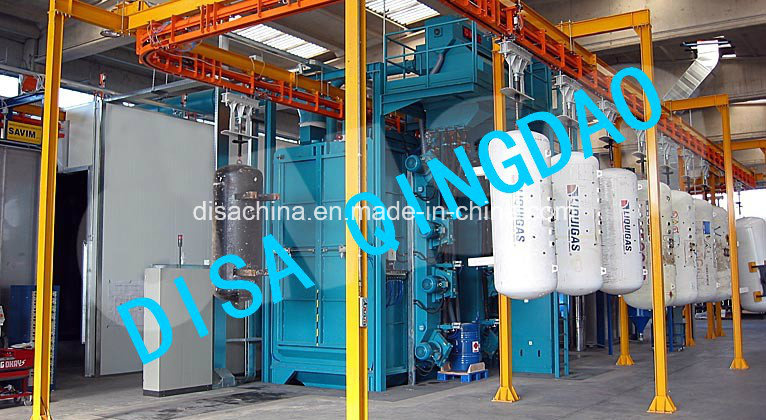

QSD38 Series overhead conveyor (HookType) Shot Blasting Machine
CENTRIFUGAL SHOT BLASTING WHEEL
Six (6) 3600 RPM direct drive, bi-directional blast wheels, for maximum abrasive velocity and smooth operationBLADES:exclusive Rim-Loc design ensures easy replacement of long life, abrasive resistant, alloy blades.CONTROL CAGE:
Dial Type CageWHEEL HOUSING:
Fabricated from 12mm steel plate, and protected by replaceable cast alloy steel liners. CABINET CONSTRUCTION
CABINET:
Pitless type, structurally reinforced, all welded from 12mm steel plate and abrasive resistant steel, rear access door for inspection and maintenance of blast wheelsDUAL BLAST CHAMBER:
Structurally reinforced, fully welded 12mm and 15mm steel plate and abrasive resistant steel, chamber revolves on a 2" diameter shaft supported by a heavy duty thrust bearing
CHAMBER DRIVE:
Motor and gear reducer activate a low speed/high torque drive assy., indexing available through adjustable stops on chamber top
SEALS:
Dual heavy duty rubber seals on chamber sides, abrasive
accumulation on chamber top and
bottom positively seals blast
chamber during operation, seal
design reduces abrasive leakageLINING:
Shot Blasting chamber lined w/cast alloy liners & abrasive resistant steelHOOK SPINDLE:
500kgs maximum hook spindle capacity, continual hook spindle rotation during blast cycle, maximum shot blast area is 850mmX1900mmCABINET VENTILATION:
Air inlet and outlet positioned to provide maximum dust evacuation of blasting zoneABRASIVE RECYCLING SYSTEM
ELEVATOR:
Centrifugal discharge belt and bucket elevator is rigid and dust-tight, removable service and inspection door, exterior mounted shaft bearings for extended life, positive belt alignment through screw adjusted take-upsFLOOR LEVEL ABRASIVE SCREENING:
Cabinet screen protects screw conveyor and elevator from large objects, perforated screen between elevator and floor level separator removes small foreign objects from abrasiveSCREW CONVEYOR:
Direct drive heavy duty 15mm screwABRASIVE CONTROL:
Totally enclosed, fully adjustable butterfly valve, quietly and precisely controls abrasive flowABRASIVE REQUIRED:
5MT for initial start-up
SEPARATOR:
Single lip high efficiency separator. Adjustable abrasive
spreader and refuse gate provide
a through air washing of abrasive, for maximum contaminate
removal OPTIONAL DUST COLLECTOR:
self-contained, self-cleaning, 32-96cartridge dust collector, will accomodate M3 refuse drumPOWER AND AIR REQUIREMENTS
NEMA:
Type 12 electrical enclosure, 380 volt, 3 phase, thermal overload protection for all motors, Ammeter, oil tight push button controls, automatic reset abrasive cycle timer, hour meterAIR REQUIREMENTS:
90-110 PSI required to operate abrasive valve, and dust collector automatic blow down.ELECTRIC MOTORS:
All motors are totally enclosed fan cooled to provide maximum life.
Blast Motor: 11KW
Elevator Drive: 5KW
Chamber Drive: 5KW
Hook Spindle Drive: 0.5KW
Dust Collector: 7.5KWSAFETY FEATURES:
Blast wheel operates only when rear door is closed, chamber seals prevent stray abrasive, abrasive valves operate only during blast cycle, emergency stop on control panel and safety reverse on cabinet sideNOISE LEVEL:
Approximately 85 DBSHIPPING WEIGHT:
About 20MT| Model | Productivity
(Hook/h) | Single Hook Weight
(Kg) | Shot Blast Capacity
(Kg/min) | Separating Capacity
(T/h) | Ventilation Volume
(M3/h) | Workpiece Dimension
(mm) | Total Power
(kw) | Overall
Dimension
(mm) |
| Q383 | 35-55 | 300 | 4*200 | 45 | 8000 | 700*1600 | 73.1 | 18000*7100*4000 |
| Q384 | 35-55 | 400 | 4*250 | 60 | 10480 | 700*1600 | 82.8 | 18000*7000*7560 |
| Q385 | 60-75 | 500 | 6*250 | 90 | 14500 | 850*1900 | 131.7 | 20300*5200*7200 |
Disa as shot blasting machine international leading supplier in China, has been established for 20 years, Disa known production shot blasting machine, since it sold in 1992 in China, the first such shot blasting machine, in just 20 years has developed rapidly, as of 2011 years on sale to the world more than 200 articles, good to use.
Disa offers you system solutions from a single source - beginning with a project idea to consulting, profitability analysis and individual engineering to a turnkey plant. With 17 years of collective experience, we have rebuilt over 1500 kinds of shot blasting machines. Through the years we expanded our engineering and manufacturing capabilities so that today we are able to take on design problems involving castings, forgings, stampings, steel mill products, fabricating, etc.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
