Product Specifications
| Prod Model: |
MZLH |
| Markets: |
Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Certification: |
SGS |
| Type: |
Wood Processing Machine |
| Voltage: |
220V / 380V /According to Customer Need |
| Color: |
Bule and White |
Product Description

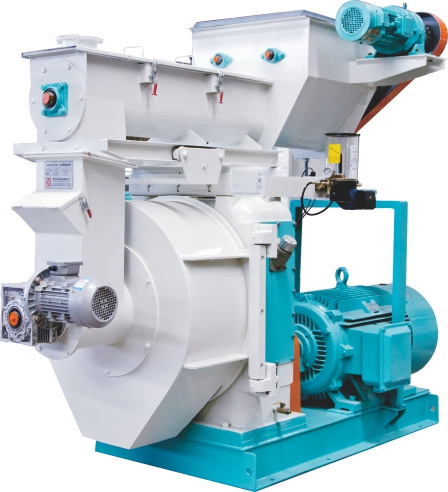

Reasonable price wood pellet mill
Detailed Product Description:
1.ISO, SGS certificated pellet mill
2.SIEMENS motor and SKF(NSK) bearing
3.Schneider electrical components
4.High capacity and low energy consumption
5.Capacity from 1-30TPH or even more
6.After-sale guarantee with one year warranty
Features:
1. Over 10 years experience and more than 1000 turn key pellet lines
2. Widely used for large scope of raw material, such as wood chips,sawdust,straw,grass,rice husk,pasture,palm leaf etc
3. With magnet and over load protection system, which can protect the machine well during production
4. The feeder is variable speed controlled to meet different output requirements and with the special structure, it makes materials conveyed evenly
5. The imported bearing and oil seal in the main drive to ensure highly-efficiency,stability and durability
6. With international advanced equipment and technology, Stainless ring die has long service life and can make slippy pellet with high quality
7. Gearbox: with pinion shaft, main gear, main shaft, quill shaft, gearbox body, manual lubrication system and overload protection system
8. Coupling assembly: with hub-taper lock bores, bushing-taper locks, S-shaped grid cover etc.
9. One set of roller assembly---two roller system
| Model | Capacity
(t/h) | Power(Kw) | Inner diameter of die (mm) | Pellet Size | Dimension
(mm) | Net Weight
(T) |
| Main | Feeder | Conditioner |
| MZLH250 | 0.1-0.2 | 15 | 0.55 | 2.2 | Φ250 | Φ6,Φ8,Φ10 | 1420*1200*1400 | 1 |
| MZLH320 | 0.3-0.5 | 37 | 0.55 | 2.2 | Φ320 | Φ6,Φ8,Φ10 | 2200*1000*1500 | 2.5 |
| MZLH350 | 0.5-0.8 | 55 | 0.75 | 3 | Φ350 | Φ6,Φ8,Φ10 | 2500*1100*1600 | 3.5 |
| MZLH420 | 1-2 | 90/110 | 1.5 | 5.5 | Φ420 | Φ6,Φ8,Φ10 | 2800*1150*1730 | 4 |
| MZLH508 | 1.5-2.5 | 132/160 | 1.5 | 11 | Φ508 | Φ6,Φ8,Φ10 | 3000*1260*1860 | 4.5 |
| MZLH600 | 2.5-3.5 | 185/200 | 2.2 | 11 | Φ600 | Φ6,Φ8,Φ10 | 3200*1400*2300 | 5.5 |
| MZLH800 | 3.5-5 | 250 | 2.2 | 15 | Φ800 | Φ6~Φ10 | 3742*1800*2885 | 8 |
Professional Design: We are leading manufacturer in China, we have professional design team, we specialize in feed processing machinery, food processing machinery and biomass energy pelleting equipments. The technology flow is followed the trend of latest industry development and the best plan is designed according to customer's requirements and local conditions. The general layout is reasonable, economical with detailed consideration from customer side.
Professional Manufacture: All machines are stable, safety, reliable; The plant is with high automation level, reducing the labor intensity of workers; The automatic control for process of production through advanced centralized control system guarantees lowest operational cost.
Professional Installation: We have professional installation team with skillful experience for many years. They are careful and responsible.
Environment Friendly: Dust, noise and drainage of waste water meet environmental requirements.
Turn-Key Projects And Machines
Livestock & Poultry Feed Project
Chicken Feed Project
Swine Feed Project
Cattle, Sheep& Horse Feed Project
Mouse& Bird Feed Project
Aqua Feed Project
Fish Feed Project
Shrimp Feed Project
Special Aqua Feed Project
Concentrate Feed Project
Premix Feed Project
Porket Feed Project
Straw Feed Project
Pasture Feed Project
Wood Pellet Project
Spice Processing Project
Herbaceous Plant Processing Project
Hops Pelleting Project
Chrysanthemum Pelleting Project
Biological Fertilizer, Organic Fertilizer,
Compound Fertilizer Project
Steel Structure Production Building Project
Steel Structure Silo project
Material Storage, Drying project
The turnkey project service
1. The general layout design of the plant
2. The electrical design of the powder, pellet workshop
3. The main design of the pellet workshop
4. The main workshop of all machinery and equipment (including frame, wind pipe, feeding pipe, bin, compressed air system and other non-standard parts) production, installation and commissioning
5. Design and installation, commissioning of all electrical control system
6. On-site training operation repair personnel
7. Long-term supply of spare parts
8. Long-term provision of technical information and business consulting.
