Product Specifications
| Prod Model: |
CB001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wire Specification: |
Dia.5.5~Dia.8.5mm |
| The Running Speed Of Finished Product: |
30~90m/S |
| Water Pressure Of Cooling Nozzle: |
0.6MPa |
| Water Pressure Of Counter Hydraulic Stri: |
1.0MPa |
| Water Pressure Of Cooling Guiding Pipe: |
0~0.3MPa |
| Pressure Of Compressed Air For Counter H: |
0.6MPa |
| Type: |
Steel Rolling Equipment |
| Certification: |
ISO |
Product Description

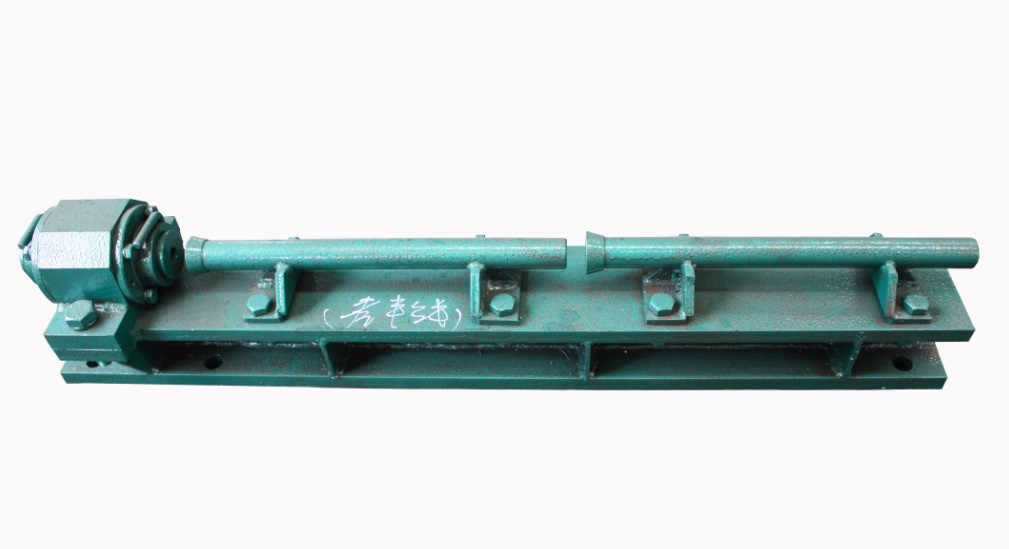

1. The function of the cooling device
The cooling device is installed behind the finishing mill, the newly produced wires from the mill are inducted to the pinch roll in front of the wire discharger by guiding groove or guiding pipe, meanwhile the temperature of the wires are cooled down from 1000~1100º C to 920~900º C rapidly along the water-cooling pipe, in so to prevent the mass production of iron oxide. Meanwhile created a better condition for wind cooling of loosing coil and metal phase transformation, only in this way the quality wire can be produced.
2. The number of nuzzle:
Water cooling on motor: 6PCS cooling water nuzzles, 1PCS counter water nuzzle, 1PCS compressed air counter air nuzzle
Water cooling section: 6PCS cooling water nuzzles, 1 PCScounter water nuzzle, 1 PCScompressed air counter air nuzzle.
3. Composition of equipment and structure characteristics
Water cooling device combined with three cooling sections and three slow cooling sections. Water cooling sections have 21 cooling nuzzles, each cooling nuzzle can be controlled individually. High pressure counter water nuzzle and high pressure counter air nuzzle are also fixed.
The water cooling box is of welded structure with steel plates, the cover of the water tank and the heavy punch fixed to guiding pipe bases should be lifted during the installment, resume the cover and heavy punch after the guiding pipes are installed properly.
In production, the newly produced wire is cooled by cooling water supplied through workshop pipelines. Used cooling water and iron oxide residue will drain away through the slop under the cooling box.
A buckling-style design is applied to all the guiding grooves in the water cooling section and slow cooling section. They are fixed with BMCUW, the structure is simple and durable and easy to maintain.
