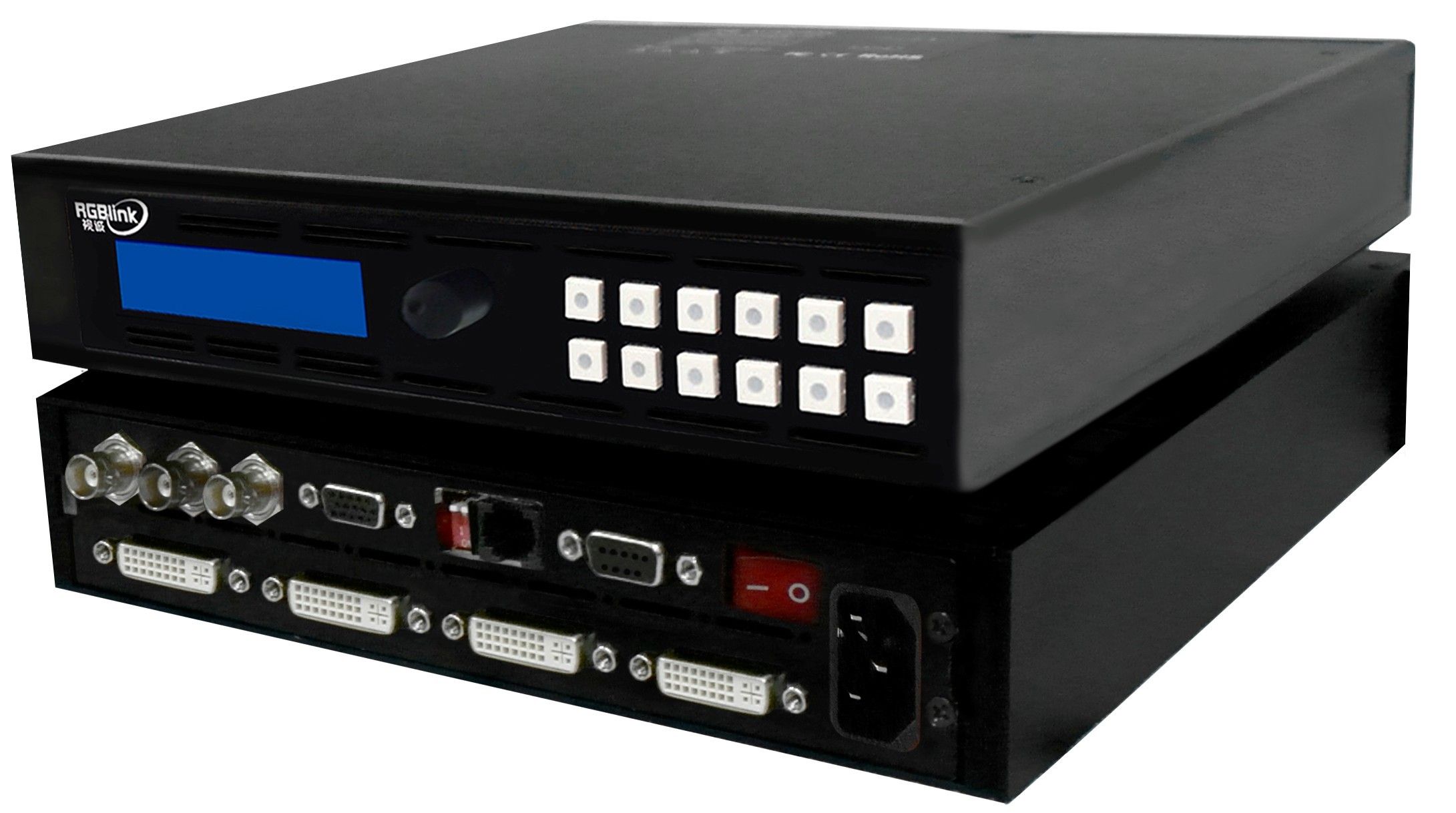

VSP168S LED Video Processor Description
The VSP168S is a four video and graphic input video processor with 1 SDI and 1 DVI loop through. The SP168S uses autio input format detection and an advance format converter. It has a seamless input switching and refresh rate conversation engine. The VSP168S is 1/2U in size allowing two units to stack in one standard rack mount ad four units to stack in a double sized rack mount. It supports seamless mapping, for much higher resolution, or can chain in, to support more display windowns. With its creative design, the VSP168S works well with media server, switchers and display system for rental, stage and production applications.
VSP168S LED Video Processor Features;
Max output resolution 2048*1152 or 2560*816
Seamless Switching
Multiple stack up for seamless mapping
SD/HD/3G SDI input with loop through
Pixel Based scale
Picture in picture
Remote control by RS232 and TCP/IP
Two VSP168S can be installed into one unit RMS
Four VSP168S can be installed into four unit RMS
VSP168S LED Video Processor Video inputs
3*composite CVBS
1*DVI(Compatible with HDMI)
1*VGA
1*sd/hd/3g sdi (optional module
VSP168S LED Video Processor Video connectors
2*BNC
1*DVI-I
1*DB15
1*BNC for sd/hd/3g sdi (optional module
VSP168S LED Video Processor Video Loop Through
1*DVI
1*SDI
Output resolution: 1024× 768× 75Hz, 1280× 1024× 60Hz, 1920× 1080P× 60Hz, 2048*1152*60hz
VSP168S LED Video Processor Video Control
Local front panel operation
Eternet, USB, Remote RS232
