Nanjing Huawei Survey Instrument Co., Ltd. >> Theodolite for Engineer

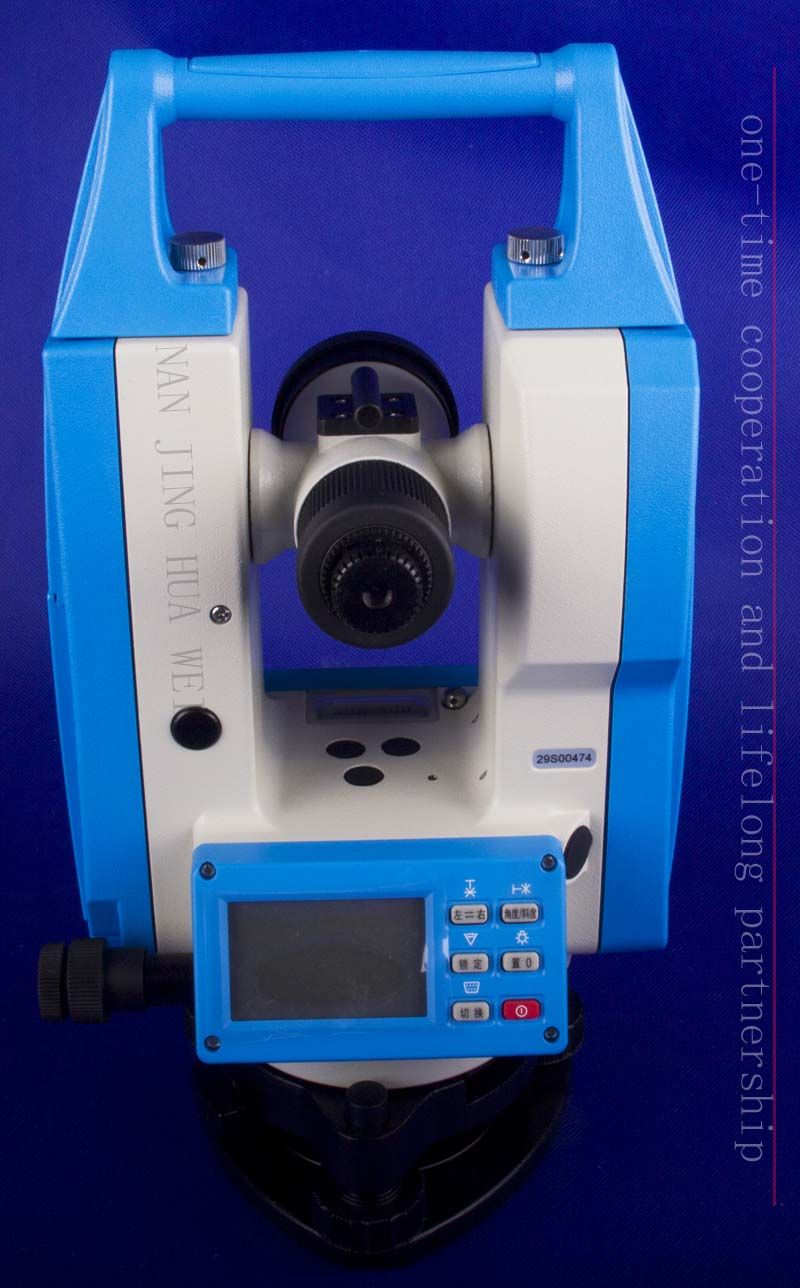

Theodolite for Engineer

Name: Theodolite for Engineer
Brand: China-Manufacturer-Directory.com
SKU: 751025965
Availability: InStock
Rating: 4.7 (141 reviews)

Supplier:	Nanjing Huawei Survey Instrument Co., Ltd.
Price:	US $ 530-550/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	DT22L
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
4.0kg:	2"
Accuracy:	2mm
Vertical Lines:	2
Horizontal Line:	1
Offset:	-30mm

Product Description

Product features:

The shortest horizon 1 meter telescope observation;

All Chinese large screen liquid crystal display segment code clear, reading is convenient, the operation is more easy to use;

Absolute coding angle measuring system;

Electronic type compensator;

Repeated measurements on the same angle averaging to improve accuracy and reduce theamount of recording;

Can be connected to external took over the book;

Laser to point and point to switch through the operation panel.

Measurement method of measuring angle: the absolute coding

The minimum reading: 1 "

Accuracy: 2 "

Telescope aperture: 45mm

Magnification: 30 *

Imaging: as

Viewing angle: 1 degrees 30 '

Display: Double

Lighting division board:

Display:

The tilt sensor: automatic vertical offset compensator

The scope of compensation: + 3 '

Level long level: 30 "/2mm

Circular level: 8 '/2mm

Power battery: rechargeable nickel hydrogen battery

Battery operating time: 15h

Other data interface: RS-232C

Instrument size: 153 x 175 x 328 mm

The working temperature of -20 DEG C to + 50 C

The weight of the instrument 4.0KG

Nanjing Huawei Surveying & Mapping Instruments Co., Ltd. Of China is the one with comprehensive coverage of industrial products and strong comprehensive strength. The company concept is one-time cooperation and lifelong partnership.

As the company is located at the famous city at political, economic and cultural aspects with developed economy, Nanjing, the traffic is very convenient. As the professional supplier of surveying & mapping instruments and the export trader, the company provides various kinds of high-precision surveying & mapping instruments and accessories; The core products include the automatic compensated level, total station instrument, transit, GPS, GPS antenna, prism and tripod, etc.

The working personnel and partners of Huawei Surveying & Mapping Instruments Co., Ltd. Extend all over the country. They do not only possess rich professional surveying & mapping knowledge, experience and technique, but also love the surveying & mapping work, and are devoted to it. They have created miracles one after another. You will be given wings to ideals to realize your dream, and the future blueprint of your company shall be realized by selecting us.

One-time cooperation and lifelong partnership!
