Product Specifications
| Prod Model: |
Ts-75l |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

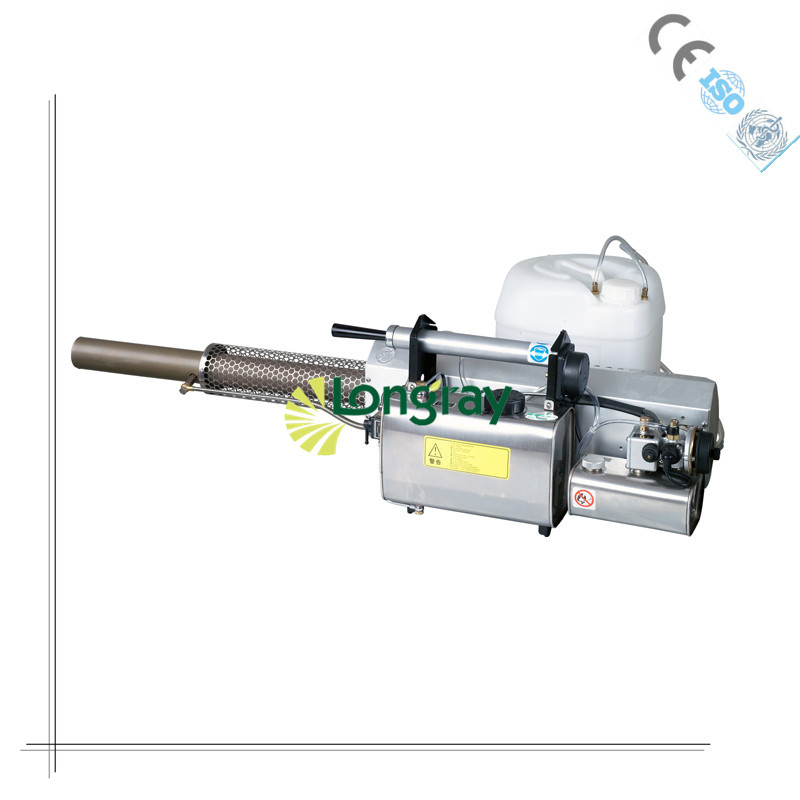

Livestock disinfection, use thermal fogging machine to apply for ULV spraying, high-performance thermal fogging machine for spraying water fog, solution output could up to 80L/h for spraying water fog.
Could spray thermal fog or water fog, cost-effective for multi-purpose spraying applications.
Designed mainly used for spraying water based formulations, high efficient.
Two-stage cooling fogging tube, greatly to lower the temperature of the fogging tube and combustion chamber, three layer of heat resistant jacket made from high grade stainless steel, security and reliable.
Equip with Automatic igniter, only use one hand to actuate the air-pump, the machine will start-up immediately.
Optional Accessory
Could choose to equip the external chemical solution tank with the capacity for 25L.
Fields of Application
It is capable of dispensing disinfectants, deodorizers, germicides and insecticides, mainly used in the application of Livestock disinfection, Animal, Poultry house disinfection, Plant protection, Pest control., etc.
Technical Specifications
Weight, empty: 10.6 Kg
Dimensions ( L x W x H): 1305× 290× 360 mm
Weight, empty (shipping data): 13 Kg
Dimensions (L x W x H), (shipping data): 1288× 310× 360 mm
Solution tank capacity: 5 L
Fuel tank capacity: 1.5 L
Fuel consumption: 1.5 -2 l/h
Performance of combustion chamber: 18.6 KW / 25.2 HP
Flow rate: 8-80 l/h
Energy: 4× 1.5 V batteries
Pressure in the solution tank: 0.25 bar
Pressure in the fuel tank: 0.06 bar
Livestock disinfection.
We are Shenzhen Longray Technology Co., Ltd, we are the professional manufacturer for Thermal Foggers/Thermal Fog Generators, ULV Cold Foggers/ULV Aerosol Generators, Vehicle-mounted Aerosol Generators/Vehicle-mounted ULV cold foggers, Flame Sterilizer, Vehicle-disinfection Channel, etc. Our products have been widely used in Pest control, Disinfection, Livestock/Poultry house disinfection, Crop/ Forestry protection, Biochemical disease disinfection/control for the army, etc. The diligent & permanent research and development work from our technical engineer enable our products has the excellent working-performance. By now, our products have already passed the attestation of ISO9001: 2008, CCC (China Compulsory Certification), CE (Comply with European Demand Certification), these attestation guarantee constant high-quality for stable & reliable working performance, efficiency and security for the products. Through our affluent technical design experience and strong competency in professional manufacturing for all of our fogging equipment, the products had been proved to be very reliable in different application field, even under the extreme application conditions.
Our products had been widely used all over the world. We had established well the after sales network all over the world, you could get the after sales service conveniently and immediately, and also we providing operation & maintenance training courses up to the technical support to the customer, we pass on the valuable knowledge to our customer for safe, economic and permanent use of our Fogging Equipment, so now we had win warm praise and highly comments from customers.
Our products are used extensively by Public Health ministry and districts to reduce vectors of Diseases such as-West Nile Virus, Malaria, Encephalitis, Dengue fever, and Yellow Fever, etc. "Strive for the improvement & development of technology, Good faith for cooperation, More better quality products for serving the market" is our eternal pursue! Customer's satisfaction is the best praise for our eternal effort! We will do our best to improve ourselves, keep us be ahead of the time, to provide the more better quality products to the customer, try to meet all the requirements from the customer, to do a more better after sale service for the customer.
