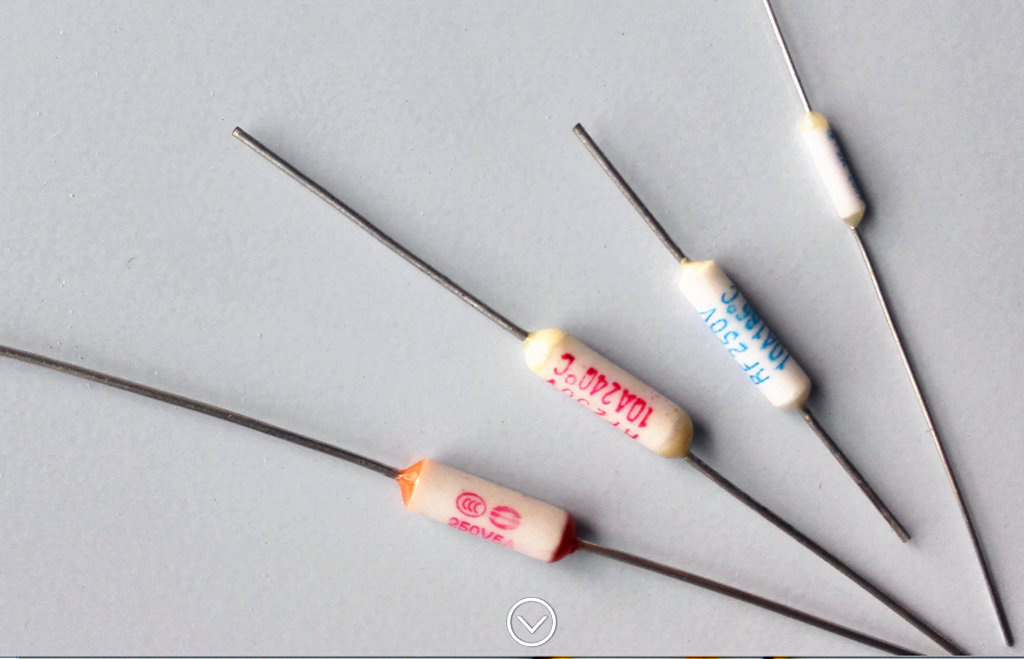

Product Description:Temperature fuse 5A 250V 115 degree AUPO thermal fuse, the price is based on the qantity.
We offer various of fuse,like fast acting / slow blow fuse,glass fuse,cermaic fuse,PPTC fuse, lead & SMD type fuse.
Feature:When the device is not working properly and will reach to the max temperature which led to the set temperature, then the thermal fuse will cut off circuit to prevent security incidents arise.
ApplicationMainly used in home appliances and industrial equipment overheating protection (fans, motors, transformers, electric cookers, electric casserole, disinfecting cabinet, electric kettle, etc...)
The thermal fuse 10a 250v Ref. data: Size | TF | ºC | Th | Tm | Lr | Ur | certificate | RoHs |
TUV | CCC | KC | PSE | CB |
RY91 | 94ºC | 91±3ºC | 70ºC | 150ºC | 10A/15A | AC250V | √ | √ | √ | √ | √ | √ |
RY96 | 99ºC | 96±2ºC | 72ºC | 150ºC | 10A/15A | AC250V | √ | √ | √ | √ | √ | √ |
RY110 | 112ºC | 109+3ºC/-1ºC | 82ºC | 160ºC | 10A/15A | AC250V | √ | √ | √ | √ | √ | √ |
RY121 | 121ºC | 119+2ºC/-3ºC | 90ºC | 150ºC | 10A/15A | AC250V | √ | √ | √ | √ | √ | √ |
RY126 | 123ºC | 120±3ºC | 92ºC | 150ºC | 10A/15A | AC250V | √ | √ | √ | √ | √ | √ |
RY130 | 133ºC | 129±2ºC | 105ºC | 159ºC | 10A/15A | AC250V | √ | √ | √ | √ | √ | √ |
RY135 | 135ºC | 133±2ºC | 106ºC | 159ºC | 10A/15A | AC250V | √ | √ | √ | √ | √ | √ |
RY142 | 142ºC | 139+2ºC/-3ºC | 115ºC | 159ºC | 10A/15A | AC250V | √ | √ | √ | √ | √ | √ |
RY144 | 144ºC | 142±2ºC | 117ºC | 159ºC | 10A/15A | AC250V | √ | √ | √ | √ | √ | √ |
RY152 | 155ºC | 152+2ºC/-3ºC | 127ºC | 172ºC | 10A/15A | AC250V | √ | √ | √ | √ | √ | √ |
RY155 | 157ºC | 152+2ºC/-3ºC | 129ºC | 172ºC | 10A/15A | AC250V | √ | √ | √ | √ | √ | √ |
RY169 | 172ºC | 169+2ºC/-3ºC | 147ºC | 190ºC | 10A/15A | AC250V | √ | √ | √ | √ | √ | √ |
RY172 | 175ºC | 172+3ºC/-2ºC | 150ºC | 190ºC | 10A/15A | AC250V | √ | √ | √ | √ | √ | √ |
RY185 | 184ºC | 182+2ºC/-3ºC | 155ºC | 210ºC | 10A/15A | AC250V | √ | √ | √ | √ | √ | √ |
RY192 | 192ºC | 188±3ºC | 160ºC | 230ºC | 10A/15A | AC250V | √ | √ | √ | √ | √ | √ |
RY216 | 216ºC | 214+2ºC/-5ºC | 185ºC | 300ºC | 10A/15A | AC250V | √ | √ | √ | √ | √ | √ |
RY228 | 227ºC | 226+1ºC/-5ºC | 200ºC | 300ºC | 10A/15A | AC250V | √ | √ | √ | √ | √ | √ |
RY230 | 230ºC | 226+1ºC/-5ºC | 200ºC | 300ºC | 10A/15A | AC250V | √ | √ | √ | √ | √ | √ |
RY240 | 240ºC | 235±4ºC | 202ºC | 300ºC | 10A/15A | AC250V | √ | √ | √ | √ | √ | √ |
