Product Specifications
| Prod Model: |
JRS1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| -: |
- |
Product Description
Specifications

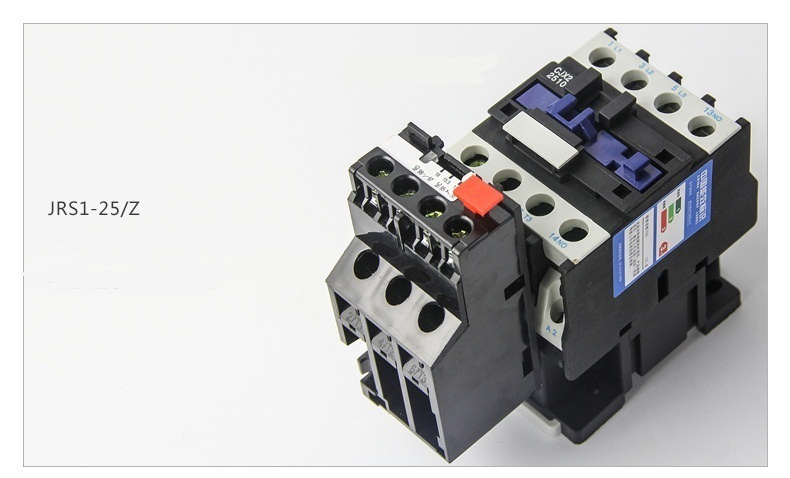

Thermal overload relay JRS1 type relay
Rated current 80A, AC 50/60Hz
Theproduct conforms to IEC60947-4-1 stardand
JRS1 Series Thermal Overload Relay, Thermal Relay , Relay
Thermal overload relay is suitable for use in ac 50 hz, main circuit rated voltage 690 v, rated current to 83 a circuit, for ac motor overload and phase failure protection. It is the differential mechanism and temperature compensation link, but with CJX2 series of ac contactor plug installation.
GB14048.4 conform to the standard
Rated current level and thermal element setting range
Product Model | Current Regulating Range | Fit Of Contactor | Can Plug The Contactor |
JRS1-09301 | 0.1~0.16 | CJX2-09 | CJX2-0.9~CJX2-25 |
JRS1-09302 | 0.16~0.25 |
JRS1-09303 | 0.25~0.40 |
JRS1-09304 | 0.40~0.63 |
JRS1-09305 | 0.63~1 |
JRS1-09306 | 1~1.6 |
JRS1-09307 | 1.6~2,5 |
JRS1-09308 | 2.5~4 |
JRS1-09309 |
|
JRS1-09310 | 4~6 |
JRS1-09312 | 5.5.~8 |
JRS1-09314 | 7~10 |
JRS1-12316 | 10~13 | CJX2-12 |
JRS1-16321 | 13~18 | CJX2-16 |
JRS1-25322 | 18~25 | CJX2-25 |
JRS1-40355 | 23~32 | CJX2-40 | CJX2-40~ CJX2-60 |
JRS1-40353 | 30~40 |
JRS1-63357 | 38~50 | CJX2-63 |
JRS1-63359 | 48~57 |
JRS1-63361 | 57~66 |
JRS1-80363 | 63~80 | CJX2-80 | CJX2-80 |
