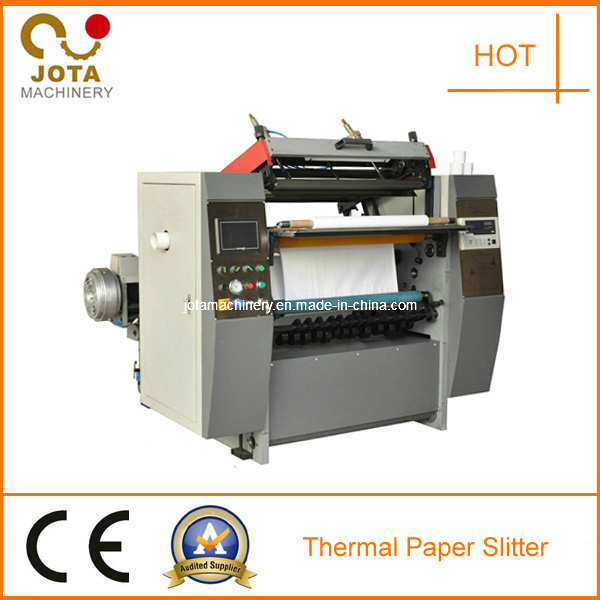

Thermal Paper Roll Cutting Machine

Product Specifications

Prod Model:	JT-SLT-900
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
PLC:	Emerson
Touch Screen:	High Tech From Taiwan
Rewinding Type:	Inverter Motor Drives Magnetic Clutch
Auto Tension:	2 Sets, Inplant The PLC
Synchronic Belt:	From Germany
Speed:	150m/Min
Machine Type:	Slitter Rewinder
Unwinding Type:	Magnetic Brake for Unwinding Tension
Cutting Type:	Disc Blades
Red Line Marker:	Yes, Controlled by PLC
Computerized:	Yes

Product Description

Thermal Paper Roll Cutting Machine

Max. Web width=900mm
Max. Web diameter=1000mm
Max. Rewind diameter=200mm
Min. Slit width=30mm
Max. Machine speed=150m/min
Unwind shaft: 3" air expanding shaft
Rewind shaft: 0.5", 1", 1.5", 2" are available(or as request)

SPECIFICATIONS
Application Material
Thermal Paper, Bond Paper, Regular Paper, Non-woven Cloth, Film, Aluminum Foil

Main
Equipped with Emerson PLC and touch screen, all the parameter are displayed on the monitor. Equipped with frequency inverter motor. All transmission rollers have been dynamic/static balance treated. Equipped with emergency switch. Equipped with Red Line Marker which is used to make a red line to remind the paper roll near to the end

Unwinding Section
3" air expanding shaft. Equipped with 10kg/m² X 1 magnetic powder brake.
Unwinding Tension Control
Equipped with automatic tension controller(diameter-calculating type) to provide stable tension.

Slitting Section
Equipped with disc type blade for material slitting. Equipped with automatic meter counter which will stop the machine when reach the pre-set length. Equipped with synchronic belt to avoid the overlap problem.

Rewinding Section
0.5", 1", 1.5", 2" rewinding shafts are all available in this machine, we can also supply as request.
Rewinding Tension Control
Equipped with automatic tension controller(diameter-calculating type) to provide stable tension.
Trimmed Waste
Equipped with Air blower and expulsion tube.

Optional
One more unwinding stand for two layer material unwinding. Auto lift-up loading system for unwinding with Max. Unwinding diameter to 1500mm Max. Rewinding diameter to 350mm Edge Position Control(EPC) to provide accurate slitting position.
