Product Specifications
| Prod Model: |
JPS-320C-TR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rewind Mode: |
Turret Rewind |
| Unwind Tension: |
Semi-Automatic Constant Tension Control |
| Rewind Tension: |
Full-Automatic Constant Tension Control |
| Slitter Speed: |
120m/Min |
| Die-Cutting Speed: |
80m/Min |
| Die-Cutting Length: |
240-476mm |
| Max Unwind Diameter: |
700mm |
| Max Rewind Diameter: |
700mm |
| Unwind&Rewnd Shaft: |
1",1.5",3" Optional |
| Dimension: |
2.2X0.9X1.4m (L x W x H) |
| Imprinting Type: |
Rotary Platen |
| Automatic Grade: |
Automatic |
| Application: |
Paper, Film, Foam |
| Placing Form Of Template: |
Circle |
| Die Cutting Tool: |
Magnetic Cylinder +Flexible or Engraved Cylinder |
Product Description

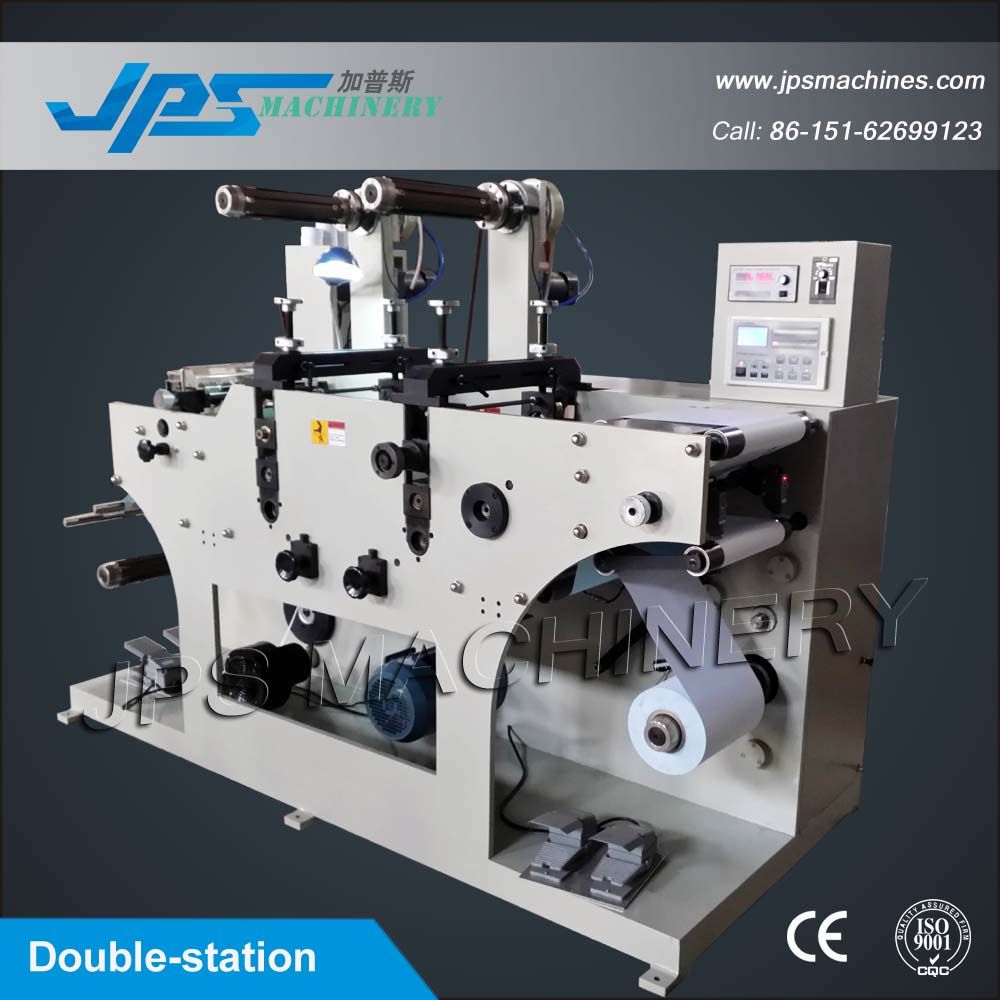

JPS-320C-TR Double-station Thermal Paper Roll Die Cutting Machinery With Slitting Funcion ( Turret Rewinder)
Feature:
This product is suitable for blank label. Die cutting,slitting , rewinding can be in one process. It have automatic tension controller system for unwinding and rewinding, Automatic inflating air for air shafts, Optional Start and stop by foot. This machine has automatic meter count, number count, length preset, automatic-stop when up to length preset functions. The unwinding is controlled by the two photoelectric eyes. The whole machine structure is compact, fast and with high efficiency. Operation is easy and steadily
Technical Parameters:
| Model | JPS-320C-TR |
| Slitting speed | 120m/min |
| Die cutting speed | 80m/min |
| Die cutting length | 240-476mm |
| Max paper width | 320mm |
| Max Unwind diameter | 700mm |
| Max rewind diameter | 700mm |
| Dimension | 2.2x 0.9x1.4m (LxWxH) |
| Machine weight | About 1000kg |
Functions:
1. Advanced turret rewinder for two shafts
2. Automatic metering and counting
3. Semi-automatic tension control for unwind, waste draining
4. Automatic tension control for rewind
5. Foot switch available .
Optional functions:
1.Lamination 2. Double-station 3.clockwise and counter-clockwise rewinder
Standard configuration:
1. Two rotary die cutting station
2. One slitting station
3. With 1 pc 3" unwinding shaft
2 pcs 1.5" rewinding shafts
one pc 1" rewinding shaft
4. With meter/number counter
5. With two photoelectric eyes
6. With 8 pcs rotary knife
7. One magnetic brake, two magnetic clutches
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines
