Product Specifications
| Prod Model: |
CCS9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

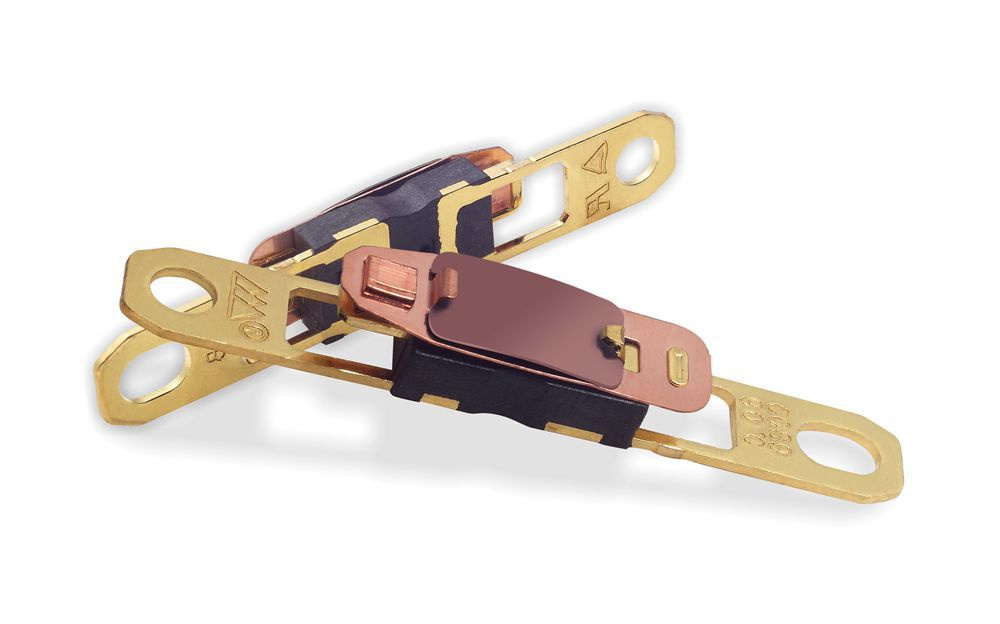

CCS9series is temp-sensing protector, the snap-action of bimetal will cut off the circuit when pre-calibrated temp are reached, protecting electrical from fault condition, the bimetal will auto-recover to connect circuit as the temp drops to reset temp-rating,
Achieved being the pioneer of fully-automatic producing line!
1. Innovative thermostat, Patented product: ZL201320793281.1 Compared with the traditional similar models, canceled the hangers on both sides and ensure the stability of bimetal strip.
2. Quick heat response due to bimetal exposed to air.
3. The mian structure of integrated injection molding is more reasonable and more compact.
4. Square silver contact with longer resistive cycles and larger current-carrying capacity.
5. Imported bimetal strip, avoided the influence of natural thermal effect, small temperature drift and longer service cycles.
6. Self R&D and supply of injection parts, LCP materia used to guarantee high strength, flame retardent, endure high temp over 300 C!
7. UL, CQC, TUV, CB certified!
APPLICATIONS: Hairdryer, electrical heater/oven, clothes dryer, air cleaner, etc.
SPECIFICATIONS:
TYPE: NC / NO
ELECTRICAL RATINGS: AC250V/12A AC125V/20A
OPERATING TEMP: 50C-160C(5C a step)
OPERATING TOLERANCE: ± 3C ± 5C
RESET TEMP: 30C± 15K
CONTACT RESISTANCE: ≤ 50mΩ
INSULATION RESISTANCE: ≥ 100MΩ
LOAD TIME: 10000 cycles
