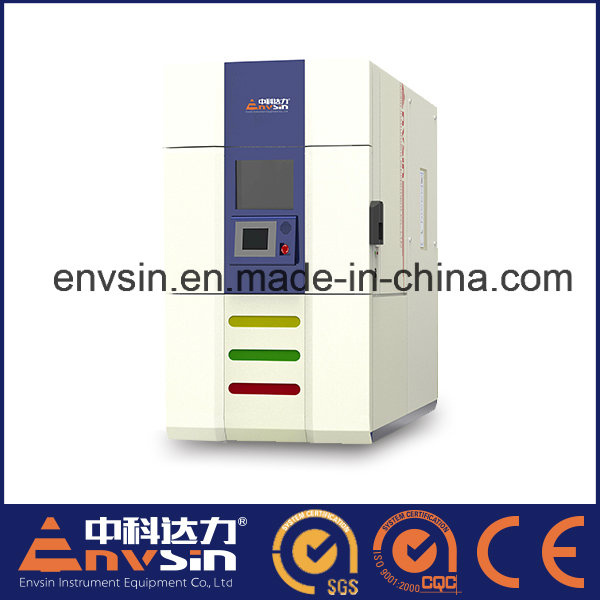

Thermal Shock Testing Environment Simulation Test Chamber from China
1.Shock Test chamber Features:- Modular fabrication technique
- Long defrosting cycles: 700H above.
- Intelligent 32 bit measuring and control system with colorful screen. Interface USB and Ethernet
- Programmable power outlet with 4-CH. ON/OFF output control, to ensure safety.
- Patented air circulation system improves test's accuracy
- Independent thermal protector and sensors keep test specimen off over temperature, breezeless and smog.
- Network video monitoring is synchronized with test data.
- Uniquely operation mode makes testing zone's temperature back to R.T after test, which protects sample status.
- Automatic reminder of maintenance time of equipments and software of fault records.
- Optional remote service function and video CD of equipment operation
2.Shock Test chamber Specification| Model | ET450S3 | ET4100S3 | ET4200S3 |
| Test Area Volume(L) | 100 | 200 | 300 |
| Test Zone | 3 | 3 | 3 |
| H.T. Chamber Temp. Range(ºC) | +50/+200 | +50/+200 | +50/+200 |
| L.T. Chamber Temp. Range(ºC) | -70/+70 | -70/+70 | -70/+70 |
| Temperature Fluctuation(ºC) | ±0.3-±1.0 | ±0.3-±1.0 | ±0.3-±1.0 |
| Temperature Uniformity(ºC) | ±0.5-±2.0 | ±0.5-±2.0 | ±0.5-±2.0 |
| Recovery Time (min) | Less than 5 min(Air Outlet) | Less than 5 min(Air Outlet) | Less than 5 min(Air Outlet) |
| Test Area Dimension(W×D×Hmm) | 400x400x310 | 500x500x400 | 600x550x600 |
Exterior Dimension(W×D×Hmm)
| 900x2300x2160 | 1000x2400x2250 | 1200x2500x2200 |
2-Cased Type(ºC) | -40/+150 | -40/+150 | -40/+150 |
Max. Load(KG) | 15 | 30 | 50 |
| Cooling Methods | Air-Cooled | Water-Cooled (Compliant with IEC 60068-3-5) |
Power | AC380V±10%,50HZ,3/N/PE |
| Compliant with International Standards: | 2-Cased Type
GB/T2423.22
MIL STD 202F,method 107G
IEC 60 068-2-14,Test Na
BS 2011
DIN 40046,Test Na
JESD22-A101-A |

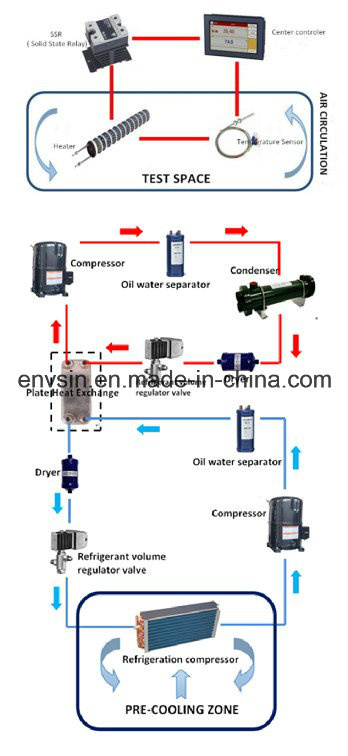

3. Work Method
4. BenifitsQuick and fully automated transfer process for easy operationProtection from condensation on metal, via dry nitrogen feed system purging oxygen, facilitates smooth functioning testsHorizontal airflow provides temperature uniformity for consistent test resultsLatest software developments in environmental test chamber control make programming and diagnostics simpleDefrost heaters in the Thermal Shock Test Chamber's cold chamber prevent ice build-up, ensuring proper machine functioning.5. Our Client
Envsin Instrument Equipment Co., Ltd is a Shenzhen-based testing equipment provider with strong capability in research, development and after-sales service.we are honored to be the preferential vendor to many famous entities such as Foxconn, ABB, CISCO and GREE GROUP, please see below:

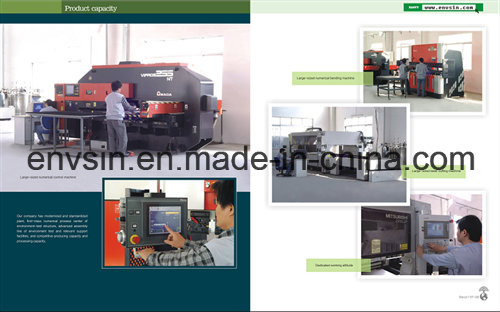

6. ENVSIN factory
If you are interested in our products or services, or would like to learn more details, do not hesitate to contact us.
Ms.Penny ChenTel.: +86 755 84571566 ext.802
Fax: +86 755 84571599
H.P.: +86 18658737718
Web: www.envsin.com
| Prod Model: |
ET450S3/ET4100S3/ET4200S3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Body Materials: |
SUS#304 Stainless Steel Plate |
| Inner Materials: |
SUS#316 Stainless Steel Plate |
| Compressor: |
Original Germany Bitzer Brand |
| Delivery Detail: |
25 Working Days After Getting The Payment |
| Certificates: |
CE, SGS |
| Zones: |
2 Zones |
