Product Specifications
| Prod Model: |
Tmov20--241A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Disc Size: |
20mm |
| Surge Current: |
10000A |
| AC Voltage: |
150V |
| Varistor Voltage: |
240V |
| Resistance: |
Variable Resistor |
| Function For Resistance: |
Protective Resistor |
| Installation: |
DIP Resistor |
| Material: |
Ceramic and Metal |
| Package Type: |
Throught Hole |
| Type: |
Varistor |

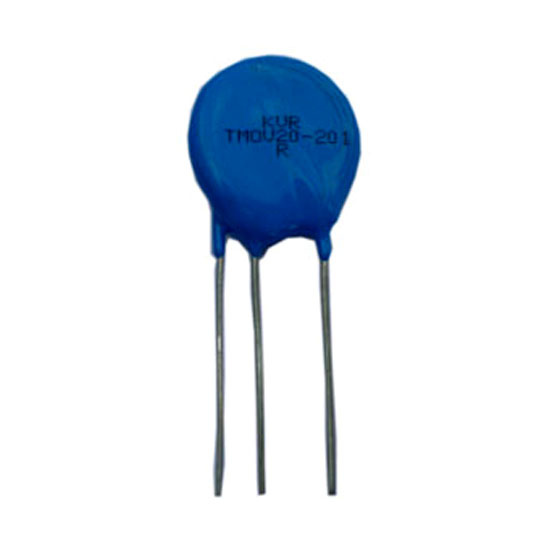

Product Description
1. Thermal cut-off
2. Diameter 20mm, cross to LITTELFUSE's TMOV or iTMOV series
3. AC voltage 150Vac;
4. Varistor voltage 240V +/-10%
5. Peak Current: 10000A
6. RoHS compliant
7. TMOV series varistor is a type with over temperature cut-off functions. A Temperature fuse is connected with MOV in series. When the operating current increasing continuously or MOV failure, the temperature fuse will be cut-off because of the temperature over the limit.
Kestar Electronic (China) Co., Ltd. Was founded in 1984 as one of the largest manufacturers specialized in researching, developing and producing full series of MOV (Metal Oxide Varistor) and SPD (Surge Protective Device) in mainland, China.
We have high quality products with aggressive price. Our products are approved the international safety standard such as UL, CE, VDE, CSA, etc. All products are RoHS compliant.
Varistor diameters: 5D, 7D, 10D, 14D, 20D, 25D, 32D, 34S, 40D, 53D, 60D, 80D.
AC Voltage from 11VAC to 2800VAC.
Power SPD, Signal SPD, Antenna SPD, DC protection SPD.
