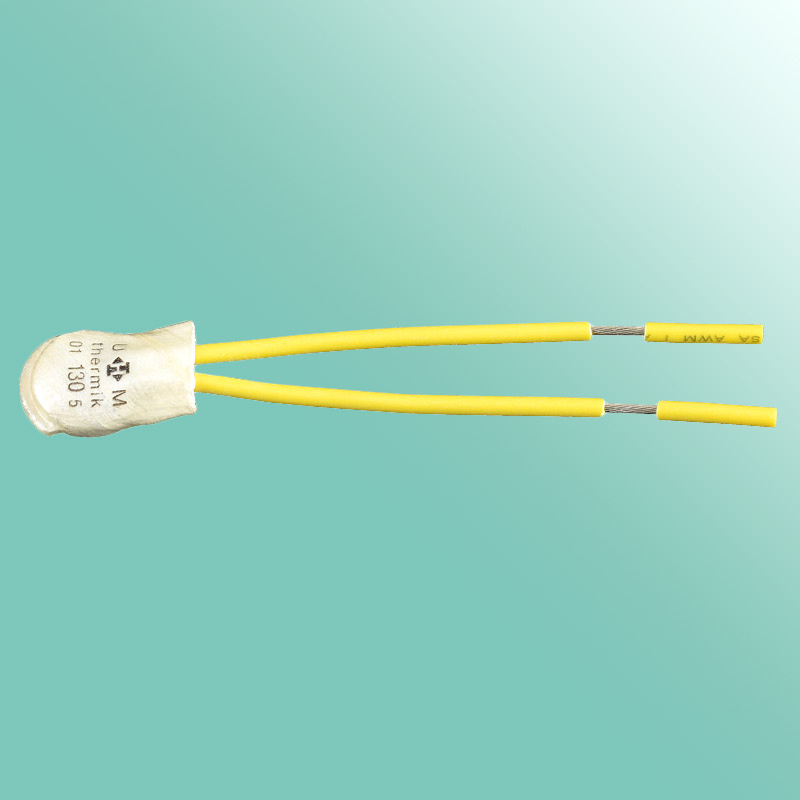

Thermik of S01 Temperature Protector with Current Sensitive

Name: Thermik of S01 Temperature Protector with Current Sensitive
Brand: china-manufacturer-directory.com
SKU: 678984791
Availability: InStock
Rating: 4.7 (105 reviews)

Supplier:	Hengxin Precision Electrical Equipment Co., Ltd.
Price:	US $ 1.6/Piece
Min Order:	500/Piece
Quantity::
Trade Terms:	EXW

Product Specifications

Prod Model:	S01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current:	2.5ampere
Breaking Capacity:	High
Type:	Temperature Fuse
Usaga:	Electronic

Product Description

Application Scope:
It is fit for small and medium power motor, transformer, floodlight and so on

Key Technical Parameters:
Rated voltage: 50/60HZ, 250V, AC
Nominal current: 2.5 (1.6) A/10 (6.3) A, COSφ=1.0(0.6)
Rated open temperature scope: +60 ºC ~+200 ºC, take 5 ºC as a grade
Tolerance: (+/-)5K

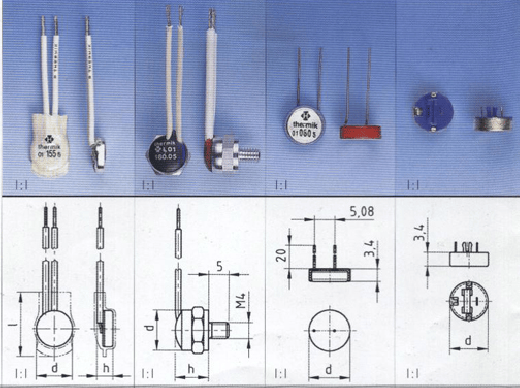

Type	S01	S06
Contact arrangement	Normally Closed Normally Open	Normally Closed Normally Open
Rated Open temp.range	60-200ºC	70-200ºC
Tolerance	±5K	±5K
Resetting temperature	Lower than rated open temp.30ºC±15K	Lower than rated open temp.30ºC±15K
Rated Voltage A/C	250V 500V	250V 500V
Rated Current COSφ=1.0	2.5A 0.75A	10.0A 3.5A
Rated Current COSφ=0.6	1.6A 0.50A	6.3A 2.0A
Endurance	10.000	10.000
Contact flick time	<1ms	<1ms
Contact resistance	<50mΩ	<50mΩ
Dipping resistance	Suitable	Suitable
Class protection	Class 1	Class 1
Cross section of the connecting leads	0.25mm2	0.75mm2
Dia. with/without insulation	9.4/9.0mm	9.8/9.3mm
Height (with/without insulation)	4.8/4.3mm	7.5/7.2mm
The length of insulation sleeve	16mm	18 mm

Resetting temperature : lower than rated open temperature 30ºC(+/-)15ºC
Certification:UL,VDE,SGS

Hengxin Precision Electrical Equipment Co., Ltd., is a manufacturer of thermal protectors, air discharge temperature controllers, automatic electrical controls for household and simmilar use.

Located in the city of Foshan, our manufacturing facility covers 5, 000 square meters, where we employ an experienced team of over 200 staff members. Moreover, we utilize advanced production machinery including state-of-the-art bimetal pressed technology and high precision thermal treatment equipment. Accordingly, our annual revenue reaches USD4, 200, 000.

With strong experience and a strict quality control system, our thermal protectors are some of the best in the industry. As such, we can provide a wide range of product specifications and gladly accept custom orders.

Accordingly, we have received several quality system and safety certifications including UL, C-UL, VDE and CQC certifications. As a result, our products have gained a strong reputation for reliability throughout many international markets.
