Product Specifications
| Prod Model: |
ZB--H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Packaging: |
Wooden Case |
Product Description
Introduction

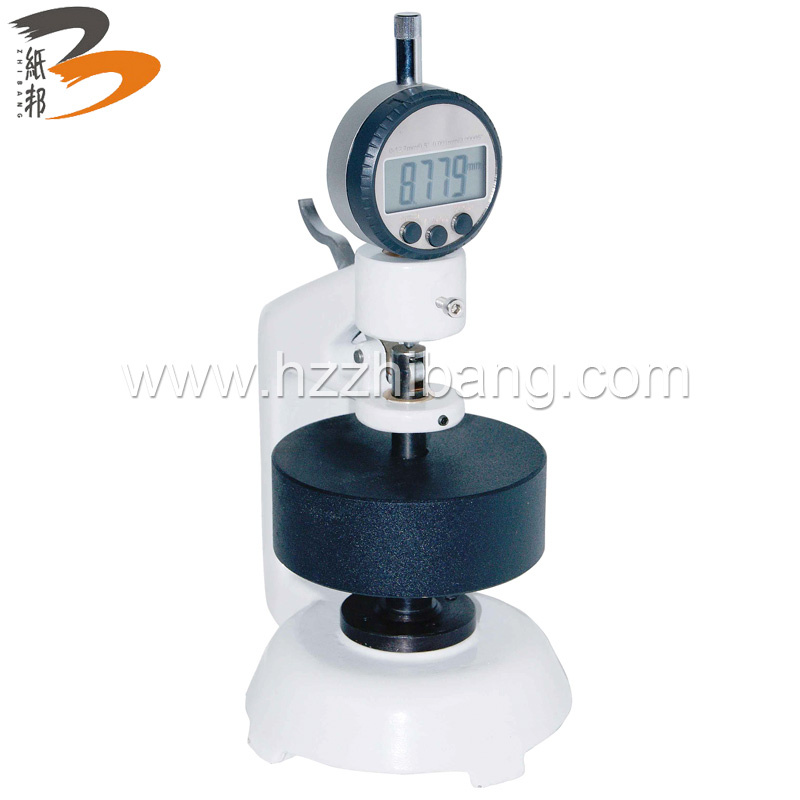

Paper and cardboard thickness meter is a special instrument to measure the thickness of paper and cardboard, widely used in paper, cardboard and other sheet materials. It's the essential equipment for the papermaking, packing industry, research and inspection department.
Standards
ISO 534 ISO3034 GB/T 451.3 GB/T6547
Main technical parameters
Mode ZB-H4 ZB-H20
Measuring range 0-4mm 0~20mm
Accuracy 0.01 or 0.001mm 0.01
Contact pressure 100± 10 kPa 20± 0.5 kPa
Contact diameter 16.0± 0.5 mm 35.7± 0.5
Error of depth of parallelism 0.005mm or 1% 0.03
. Indication error ± 0.0025mm or± 0.5%
Indication variability ≤ 0.0025mm or≤ 0.5%
Dimension 233*160*120 mm
Net Weight About 5.5kg
