Supplier: | Shenzhen Junfirer Technology Development Co., Ltd. |
---|---|
Price: | Negotiable/Set |
Min Order: | 1/Set |
Quantity:: | |
Trade Terms: | FOB,CFR,CIF |
![]() |

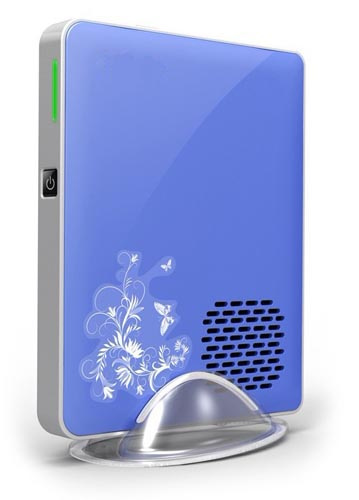

Prod Model: | JF-ETP-2500D |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Memory Capacity: | 2GB |
CPU: | Intel Atom |
GPU: | Intel |
HDD Capacity: | Standard 32 GB SSD |
Dimension | 190 x 150 x 25.5 mm |
Weight | 1.24Kg (Reference) |
Power Consumption | 20W |
Onboard CPU | Intel® Atom™ Processor D2500 (1M Cache, 1.86 GHz) |
Memory |
• 2G DDR3 RAM SO-DIMMs • Single-channel DDR 3 with two connectors for 1066 / 800 MHz memory support (4 GB max) |
Chipset | NM10 |
Hard Disk | Standard 32 GB SSD |
Onboard Graphics Card | Intel® Graphics Media Accelerator 3600 |
Onboard LAN | Intel® RTL8111E 1000 Mb/s Ethernet Controller |
WIFI | Atheros AR9285 802.11b/g/n Wireless Network Adaper |
Audio Solution | Four-channel Intel® High Definition Audio |
Front-Panel Connectors |
• Power on/off • HD LED, Power LEDs |
Top-Panel Connectors |
• 1×USB 3.0 ports • 1×SD/MMC/MS/Mspro ports • 2×Audio header |
Back-Panel Connectors |
• 1×DV12V DC input • 1×RJ45 ports • 1×VGA ports • 4×USB 2.0 ports • 1×HDMI ports |
Operating System | Support Windows 7/Windows Embedded Standard 7 etc. |
