Thql Tql Black Mini Circuit Breakers/Miniature Circuit Breaker (MCB, CB)

Name: Thql Tql Black Mini Circuit Breakers/Miniature Circuit Breaker (MCB, CB)
Brand: china-manufacturer-directory.com
SKU: 756883235
Availability: InStock
Rating: 4.4 (118 reviews)

Supplier:	Yueqing City Jinwanli Electronic Component Factory
Price:	US $ 2.1/Piece
Min Order:	500/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Poles Number:	1
Certification:	CE
Operation:	Energy-storage Type
Installation:	Insert
Arc-extinguishing Medium:	Oil-immersed Type
Speed:	Normal Type Circuit Breaker
Structure:	Moulded Case Circuit Breaker

Product Description

Specifications
1.Black THQL mini circuit breaker
2. IEC60898,GB10963
3. other 1/2 size
4. Short delivery time

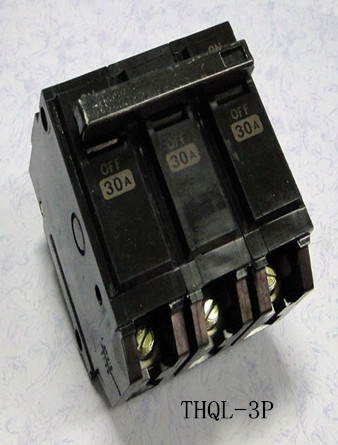

THQL TQL MCB mini circuit breaker
It is mainly suitable for overload and short circuit protection on within the circuit of AC 50/60Hz,rated voltage of single pole 220V and double pole up to 415V and rated current up to 40A.It can also be used for an unfrequent switch over of the circuit and illumination under normal condition.
Specification:

Standard		IEC60898,BS3781-1
Number of poles		1P,2P,3P
Rated current(In)		6,10,16,20,25,32,40
Rated voltage(Un)		AC240/415V
Rated frequency		50/60Hz
Tripping curve		B,C,D
Release action characteristics	Time delay	1.13In>1h Non-trip
		1.45In<1h trip
		2.55In 1s~60S trip
	Instantaneous(Curve C)	5In >0.1s Non-trip
	Instantaneous(Curve C)	10In<0.1s trip
Magnetic releases operate		B curve:between 3 and 5In
		C curve :between 5 and 10In
		D curve: between 10 and 15In
Ratedbreaking capacit(Lcn)		3000A
Endurance		>2500
Circumstance temperature		-5~+40
Electrical life		>6000times
Mechanical life		20000 times
Tropical ration		Treatmen 2(RH95%,at 55°C)
Protection degree		IP20

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
