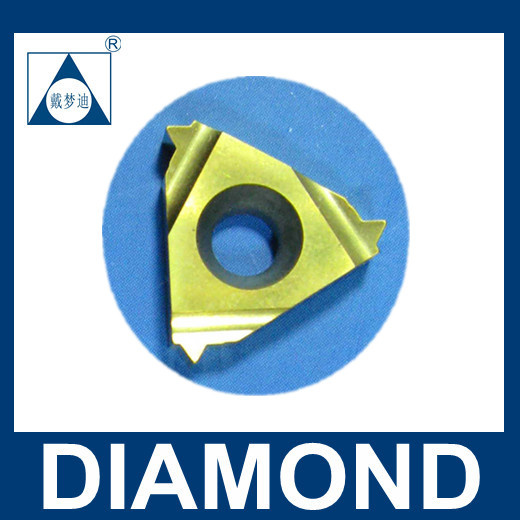

Threading Insert (UN-60)

Name: Threading Insert (UN-60)
Brand: China-Manufacturer-Directory.com
SKU: 668497815
Availability: InStock
Rating: 5 (56 reviews)

Supplier:	Chengdu Diamond Tools Co., Ltd.
Price:	US $ 2.8/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	UN-60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Cutter
Work Type:	Thread Machining
Material:	Kentanium

Product Description

Threading insert UN-60 degree.
Size: 08 11 16 22 27ER&IR UN

Characteristic
1. Grade: M30
2. Coatig: TIN&TIALN by Oerlikon Balzers
3. Accept special request.

With no coating machines Al workpiece, with TiN coating machines steel workpiece, with TiAlN coating machines stainless steel.
Price: Moderately FOB
Samples: We would like to share the cost partly
Packing: 10 PCS in a plastic box with sponge inside, carton box outside
Delivery time: 15 days
Payment: T/T

	D	Pitch	Designation		Dimension(mm)
	D	TPI	Right Hand	Left Hand	L	X	Y
External	1/4 inch	32	11ER32 UN	11EL32 UN	11	0.6	0.6
		28	11ER28 UN	11EL28 UN		0.6	0.7
		24	11ER24 UN	11EL24 UN		0.7	0.8
		20	11ER20 UN	11EL20 UN		0.8	0.9
		18	11ER18 UN	11EL18 UN		0.8	1.0
		16	11ER16 UN	11EL16 UN		0.9	1.1
	3/8 inch	32	16ER32 UN	16EL32 UN	16	0.6	0.6
		28	16ER28 UN	16EL28 UN		0.6	0.7
		24	16ER24 UN	16EL24 UN		0.7	0.8
		20	16ER20 UN	16EL20 UN		0.8	0.9
		18	16ER18 UN	16EL18 UN		0.8	1.0
		16	16ER16 UN	16EL16 UN		0.9	1.1
		14	16ER14 UN	16EL14 UN		1.0	1.2
		13	16ER13 UN	16EL13 UN		1.1	1.3
		12	16ER12 UN	16EL12 UN		1.1	1.4
		11.5	16ER11.5 UN	16EL11.5 UN		1.1	1.4
		11	16ER11 UN	16EL11 UN		1.1	1.5
		10	16ER10 UN	16EL10 UN		1.1	1.5
		9	16ER9 UN	16EL9 UN		1.2	1.7
		8	16ER8 UN	16EL8 UN		1.2	2.0
	1/2 inch	7	22ER7 UN	22EL7 UN	22	1.6	2.3
		6	22ER6 UN	22EL6 UN		1.6	2.3
		5	22ER5 UN	22EL5 UN		1.7	2.5
	5/8 inch	4.5	27ER4.5 UN	27EL4.5 UN	27	1.9	2.7
	5/8 inch	4	27ER4 UN	27EL4 UN	27	2.1	3.0

Chengdu Diamond Tools Co., Ltd., is a professional manufacturer specialized in PCBN (PolyCrystalline Cubic Boron Nitride ) / PCD(PolyCrystalline Diamond ), PCD End mills and Carbide cutting tools. Established on 2001, It owns advanced equipments and many outstanding experts.

The company aims: Try our best to meet the customer's needs and Grow up together.

Our Cutting tools are ideal substitutes for similar imported products with high stability (excellent service life, reliable machining accuracy), high cutting speed, good surface roughness and dry turning for hardened steels etc. They are especially suitable for mass production of automobile and motorbike parts.

Our products exported to all over the world and enjoying good reputations.

The company has been granted with the ISO 9001-2008 Quality Certificate by CQM in China.

More detail informations. Welcom to contact with us!
