Threading Insert

Name: Threading Insert
Brand: china-manufacturer-directory.com
SKU: 645331325
Availability: InStock
Rating: 4.5 (139 reviews)

Supplier:	Chengdu Diamond Tools Co., Ltd.
Price:	US $ 2.5-2.8/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	UNJ-60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Cutter
Work Type:	Thread Machining
Material:	Kentanium

Product Description

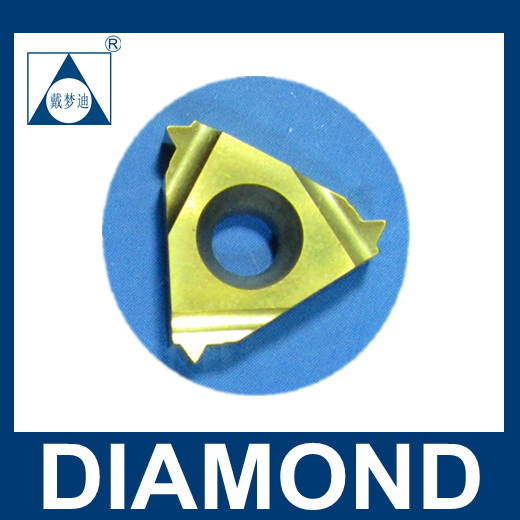

Threading Insert UNJ-60
1. Size: 08 11 16 22 27 ER&IR UNJ
2. Coating: TIN&TIALN by Oerlikon Balzers
3. Accept special request.

Threading insert with no coating machines Al workpiece, with TiN coating machines steel workpiece, with TiAlN coating machines stainless workpiece
Price: Moderately FOB
Samples: We would like to share the cost partly
Packing: 10 PCS in a plastic box with sponge inside, carton box outside
Delivery; Airway express
Payment: T/T L/C D/P

	D	Pitch	Designation		Dimension
	D	TPI	Right Hand	Left Hand	L	X	Y
External	1/4 inch	28	11ER 28 UNJ	11EL 28 UNJ	11	0.7	0.7
		24	11ER 24 UNJ	11EL 24 UNJ		0.7	0.8
		20	11ER 20 UNJ	11EL 20 UNJ		0.8	0.9
		18	11ER 18 UNJ	11EL 18 UNJ		0.8	1.0
		16	11ER 16 UNJ	11EL 16 UNJ		0.9	1.1
		14	11ER 14 UNJ	11EL 14 UNJ		1.0	1.2
	3/8 inch	28	16ER 28 UNJ	16EL 28 UNJ	16	0.7	0.7
		24	16ER 24 UNJ	16EL 24 UNJ		0.7	0.8
		20	16ER 20 UNJ	16EL 20 UNJ		0.8	0.9
		18	16ER 18 UNJ	16EL 18 UNJ		0.8	1.0
		16	16ER 16 UNJ	16EL 16 UNJ		0.9	1.1
		14	16ER 14 UNJ	16EL 14 UNJ		1.0	1.2
		13	16ER 13 UNJ	16EL 13 UNJ		1.0	1.3
		12	16ER 12 UNJ	16EL 12 UNJ		1.1	1.3
		11	16ER 11 UNJ	16EL 11 UNJ		1.2	1.5
		10	16ER 10 UNJ	16EL 10 UNJ		1.2	1.5
		9	16ER 9 UNJ	16EL 9 UNJ		1.3	1.7
		8	16ER 8 UNJ	16EL 8 UNJ		1.2	1.6
	1/2 inch	7	22ER 7 UNJ	22EL 7 UNJ	22	1.7	2.3
		6	22ER 6 UNJ	22EL 6 UNJ		1.6	2.3
		5	22ER 5 UNJ	22EL 5 UNJ		1.8	2.5
	5/8 inch	4.5	27ER 4.5 UNJ	27EL 4.5 UNJ	27	2.0	2.7
	5/8 inch	4	27ER 4 UNJ	27EL 4UNJ	27	2.2	3.0

Chengdu Diamond Tools Co., Ltd., is a professional manufacturer specialized in PCBN (PolyCrystalline Cubic Boron Nitride ) / PCD(PolyCrystalline Diamond ), PCD End mills and Carbide cutting tools. Established on 2001, It owns advanced equipments and many outstanding experts.

The company aims: Try our best to meet the customer's needs and Grow up together.

Our Cutting tools are ideal substitutes for similar imported products with high stability (excellent service life, reliable machining accuracy), high cutting speed, good surface roughness and dry turning for hardened steels etc. They are especially suitable for mass production of automobile and motorbike parts.

Our products exported to all over the world and enjoying good reputations.

The company has been granted with the ISO 9001-2008 Quality Certificate by CQM in China.

More detail informations. Welcom to contact with us!
