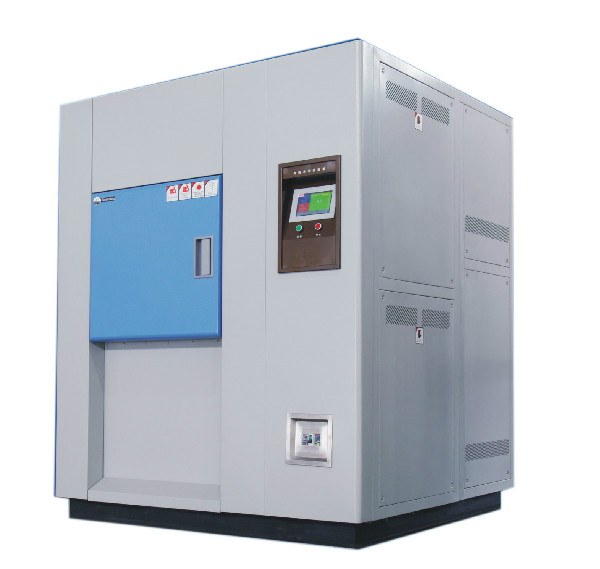

Three-Box Type Thermal Shock Testing Machine (FC-100)

Three-Box Type Thermal Shock Testing Machine (FC-100)
Supplier: Fangcun Testing Equipment Co., Limited
Price: US $ 6000-12000/Set
Min Order: 1set
Quantity::
Trade Terms: FOB,CIF,EXW
contact supplier

Product Specifications

Prod Model: FC-100
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Volume: Optional (50L, 80L, 108L, 216L, 252L)
Weight: 100-500Kg
Power Source: AC380V
Type: Thermal Shock Test Chambe

Product Description

Technical Parameters
Condition: air-cool type ambient +25ºC,no-load (some parameter refer to remark) no specimen.
Test chamber shock  temperature range: low temperature section -65 to -10ºC,hogh temperature section +60~+150ºC
High temperature chamber preheating temperature range: +RTºC to +200ºC
Low temperature precool temperature range:-80ºC to +40ºC
Temperature fluctuation:≤±0.5ºC
Temperature departure uniformity:≤±3ºC
High temperature chamber heating up time: from +RTºC to 200ºC about 30m,whole journey average nonlinearity
Low temperature chamber decline time: from +RTºC to -75ºC about 70m,whole journey average nonlinearity.

Features:
*Outer chamber: spraying plastics galvanize colours steel plate.
*Inner chamber:SUS#304 stainless steel plate
*Insulating layer: hominess polyamine froth and glass wool.
*Door: single door
*Sealing:silica gel sealing strip

MODELFC-101AFC-101BFC-101CFC-101DFC-101E

CHMBER SIZE:W×H×D(cm)
36×35×4050×40×4060×40×4560×60×6060×70×60
Boundary Demention
W×H×D(cm)
150×182×142165×192×142172×192×142170×225×182170×235×182
Temperature Shock Range-65ºC~+80ºC
Preheat Temperature Range+70ºC~+200ºC
Precool Temperature Range-10ºC~-75ºC
Comtrol Precision±3ºC
Temp recover time 5 min

Preheat Chamber warmming time
(25ºC as ambient temperature)
ºC+150+150+150+150+150
min3040404040

Precool Chamber cooling time
(25ºC as ambient temperature)

ºC-40-55-65-40-55-65-40-55-65-40-55-65-40-55-65
min607080607090809010090100110110110120

ControllerJapan Original touching-type High and low temperature shock controller
    Refrigeration SystemGermany Original compressor + finned evaporator + Pure aluminium storage tanks
   Heating systemIron-chrome wire heater; heating type: PID+SSR contactless control
Outer Material High strength galvanized steel (powder spraying stoving varnish, SUS316
Inner MaterialSUS304 corrosion resistant plate
         Insulating LaggingPU+ Glass fiber cotton
   Standard Accessories Stainless steel insulation layer 2units, instrument connection ¢50mm i unit
Fangcun Testing Equipment Co., Limited engage in research and develop, produce, market various of safety standard equipments, laboratory testing equipment, production line inspecting and testing equipment, and automatic production equipment.

We engage in research various international standards such as IEC, ASTM, UL, EN, BS, GB etc, to manufacture relevant testing equipment with exquisite craft which carry out these testing requirements completely. Hereby serve relevant enterprises to produce standard products. Especially our environment series testing equipments, not only get applauses which come from plenty of domestic enterprise, also wide sale to hundreds of international group come from Europe and America, Latin America and southeast Asia etc.

We take the faith 'professional and considerate service as purpose, scientific and practical R&D' as core, take management philosophy 'exhibit individuality, raise natural instincts, stress humanity', to drive and unite the scientific and technological talents strolling in leading edge of Science and Technology, also promote our company to March toward one by one peak.
